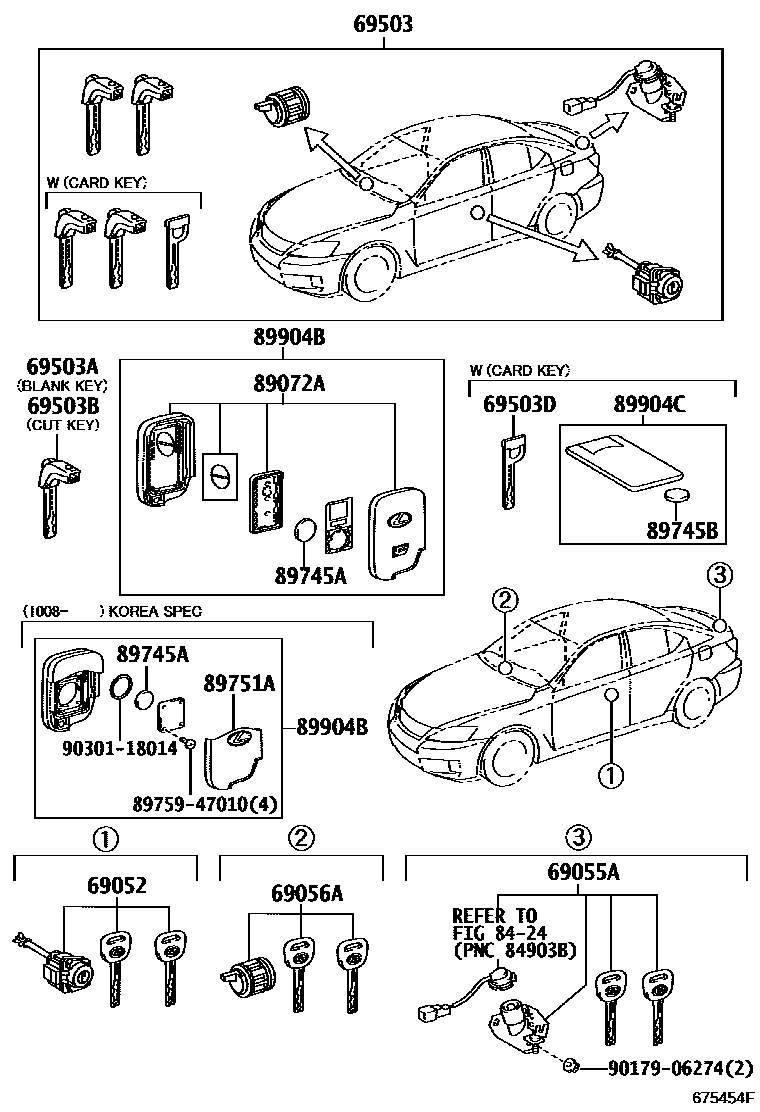

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-50150iUSE20200712

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-53050iUSE20200712

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iUSE20200712

69503CYLINDER SET, LOCK

main69005-53330iUSE20200712

main69005-53370iUSE20200808

WITH(CARD KEY)

69503AKEY, BLANK

main69515-50260iUSE20200712-201408

BLANK KEY

69503BKEY, CUT

main69515-50240×2iUSE20200712-201408

MASTER KEY

69503DKEY, CUT(CARD KEY)

main69515-30330iUSE20200911

MASTER KEY,WITH(CARD KEY)

main69515-50220iUSE20200808-200910

MASTER KEY,WITH(CARD KEY)

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53350×2iUSE20201104

main89072-53391iUSE20200712-200808

89745ABATTERY, TRANSMITTER

main89745-52020iUSE20200712

main89745-52030iUSE20201008

KOREA SPEC; KOREA SPEC&WITH(CARD KEY)

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iUSE20200808-201007

WITH(CARD KEY)

89751ACOVER, TRANSMITTER HOUSING

main89751-48310×2iUSE20201008-201105

KOREA SPEC; KOREA SPEC&WITH(CARD KEY)

main89751-48311×2iUSE20201105

KOREA SPEC; KOREA SPEC&WITH(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-53060iUSE20200712-200808

main89904-53190×2iUSE20200808-201104

main89904-53430×2iUSE20201104

main89904-53280×2iUSE20201008-201104

KOREA SPEC; KOREA SPEC&WITH(CARD KEY)

main89904-53281×2iUSE20201105

KOREA SPEC; KOREA SPEC&WITH(CARD KEY)

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-50480iUSE20200808-200908

WITH(CARD KEY)

main89904-53130iUSE20200908-201007

WITH(CARD KEY)

main89904-53131iUSE20201008

WITH(CARD KEY)

main89904-53400iUSE20201008-201104

KOREA SPEC&WITH(CARD KEY)

main89904-53401iUSE20201105-201106

KOREA SPEC&WITH(CARD KEY)

main89904-53480iUSE20201107

KOREA SPEC&WITH(CARD KEY)

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9017906274

main90179-06274

9030118014

main90301-18014

17 parts on this diagram · 1 diagram in section
