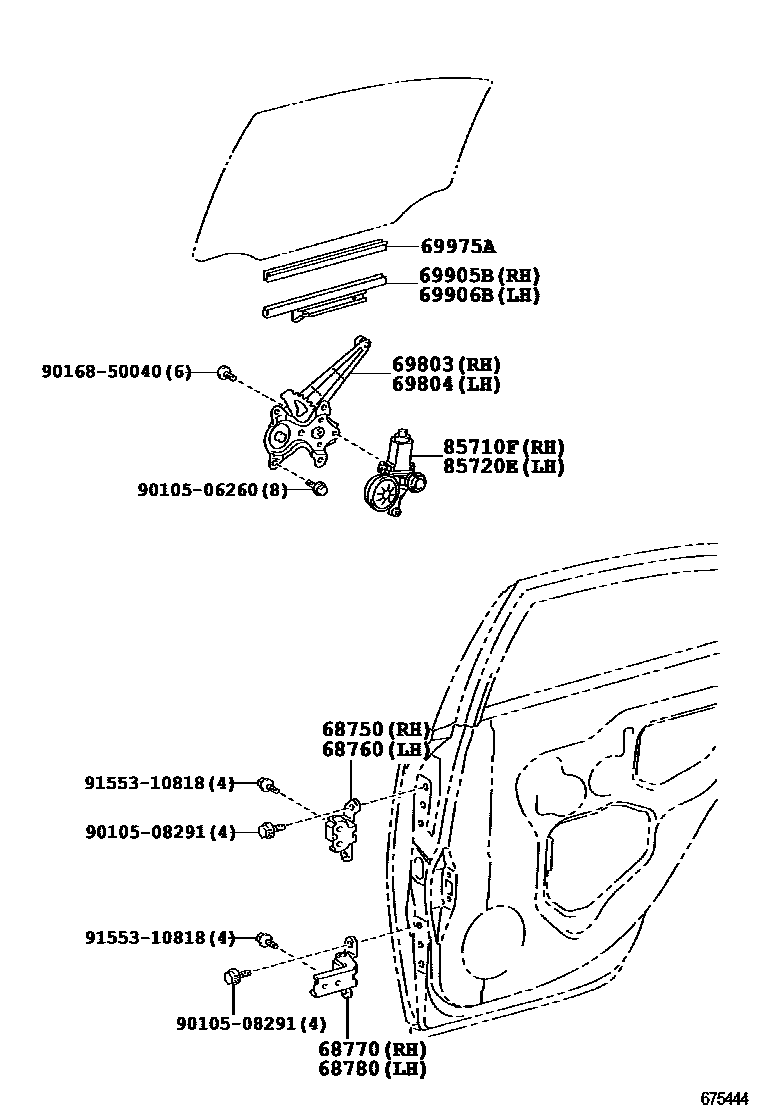

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iUSE20200712-201205

main68750-20122iUSE20201206

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iUSE20200712-201205

main68760-20122iUSE20201206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iUSE20200712

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iUSE20200712

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iUSE20200712

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iUSE20200712

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-53030iUSE20200712-201408

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-53030iUSE20200712-201408

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iUSE20200712-201408

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-53060iUSE20200808-201209

main85720-53061iUSE20201210

main85720-58010iUSE20200712-200808

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-53060iUSE20200808-201209

main85710-53061iUSE20201210

main85710-58010iUSE20200712-200808

9010506260

main90105-06260

9010508291

main90105-08291

9016850040

main90168-50040

9155310818

main91553-10818

15 parts on this diagram · 1 diagram in section
