ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-53030-C0i200712-201408

MOON ROOF-WITH(AUTO SLIDE),BLACK,TRIM2#

63310HEADLINING ASSY, ROOF

main63311-53150-C0i200712-200908

MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION,BLACK,TRIM2#; MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,BLACK,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-10181i200712

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126i200712

63341PAD, ROOF SILENCER, NO.1

main63341-53030i200712

63343BPAD, ROOF SILENCER, REAR

main63343-53020×2i200712

63345DPAD, ROOF SILENCER, CENTER

main63345-53010i200712

63351BPAD, ROOF HEADLINING

main63351-53050×2i200712-200908

MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION; MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER

63352DPAD, ROOF HEADLINING, NO.2

main63352-53020×2i200712

63355DPAD, ROOF HEADLINING, LH

main63355-53040×2i200712

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30091×10i200712

66414ASPACER, SIDE RAIL, REAR RH

main66414-53040i200712-200908

MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION; MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-53020i200712

66424SPACER, SIDE RAIL, REAR LH

main66424-53040i200712-200908

MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION; MOON ROOF-WITH(AUTO SLIDE)&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-53020i200712

8121INTERIOR LAMP

→ Go to FIG 81-21

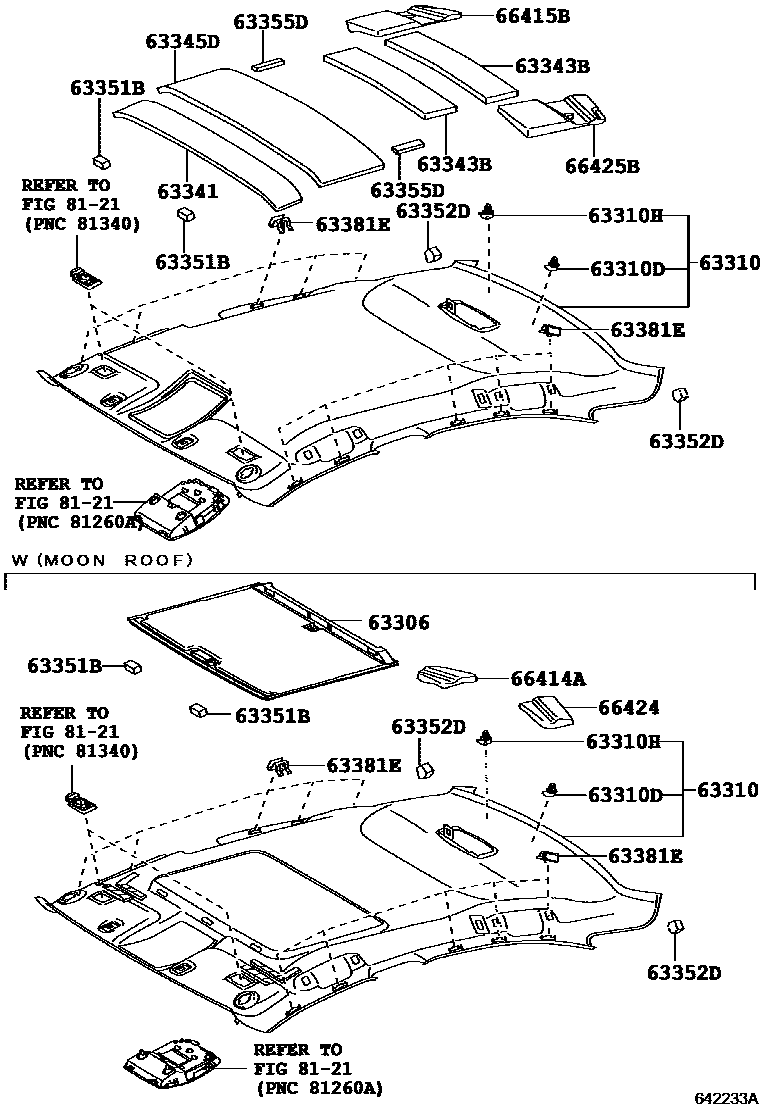

16 parts on this diagram · 1 diagram in section
