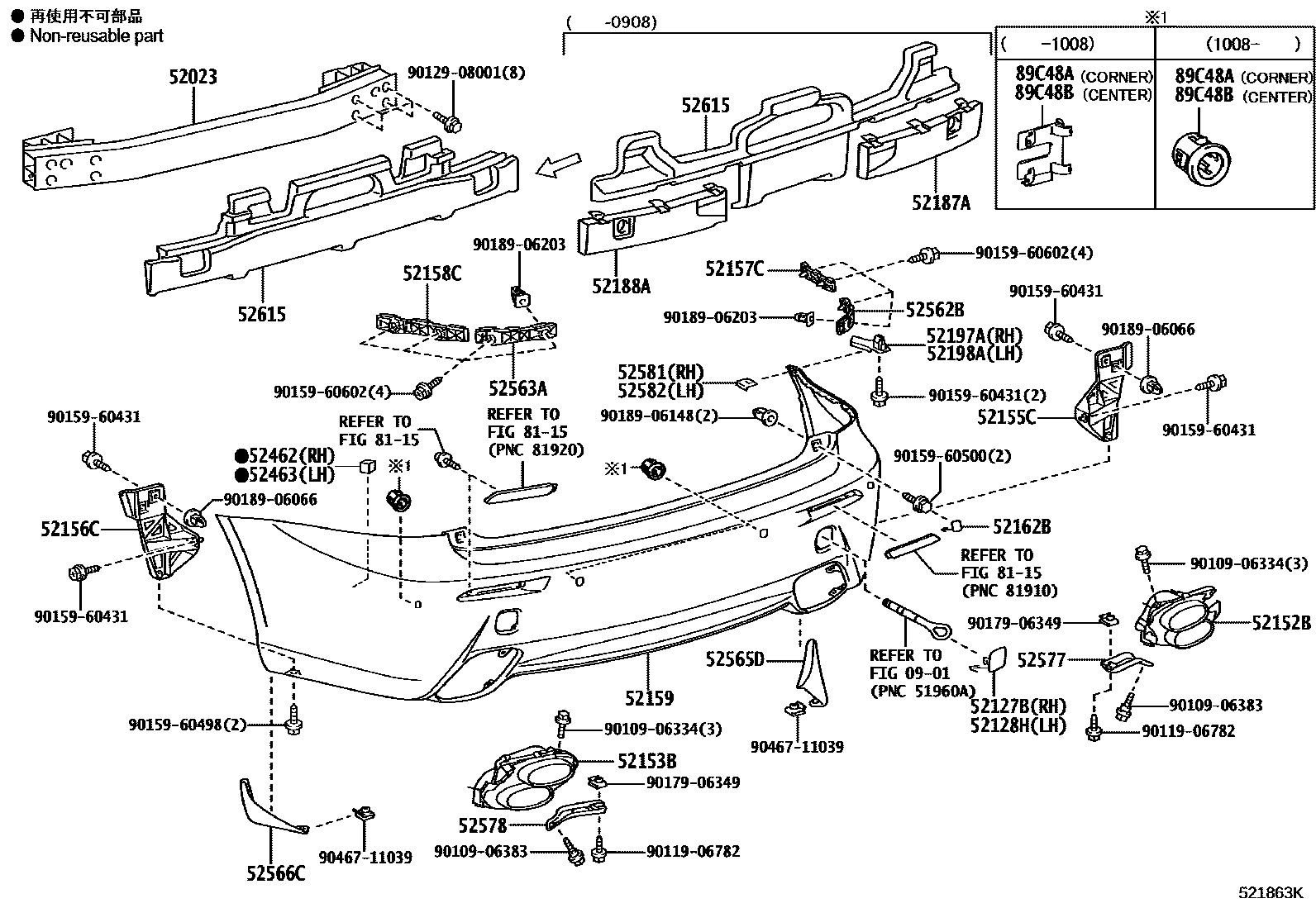

REAR BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-53050iUSE20200712-201408

52127BCOVER, REAR BUMPER HOLE, RH

main52161-53903iUSE20200712-201408

52128HCOVER, REAR BUMPER HOLE, LH

main52162-53905iUSE20200712-201408

52152BEXTENSION, REAR BUMPER, RH

main52106-53010iUSE20200712-200907

main52106-53011iUSE20200908-201006

main52106-53012iUSE20201007

52153BEXTENSION, REAR BUMPER, LH

main52107-53010iUSE20200712-200907

main52107-53011iUSE20200908-201006

main52107-53012iUSE20201007

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-53040iUSE20200712

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-53010iUSE20200712

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-53040iUSE20200712

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-53040iUSE20200712

52159COVER, REAR BUMPER

main52159-53913iUSE20200712-201408

PAINT REQ.

main52159-53914iUSE20200712-201008

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52159-53935iUSE20201008-201408

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

52162BPLATE, REAR BUMPER, NO.1

main52162-53904×2iUSE20200712-201408

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-53030iUSE20200712-200908

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-53030iUSE20200712-200908

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53020iUSE20200712

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53010iUSE20200712

52462PAD, REAR BUMPER, RH

main52462-53030iUSE20200712

52463PAD, REAR BUMPER, LH

main52462-53030iUSE20200712

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-53010iUSE20200712

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-53010iUSE20200712

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-53010iUSE20200712-201408

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-53010iUSE20200712

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-53020iUSE20200712

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-53020iUSE20200712

52581PROTECTOR, REAR BUMPER, RH

main52581-53010iUSE20200712

52582PROTECTOR, REAR BUMPER, LH

main52582-53010iUSE20200712

52615ABSORBER, REAR BUMPER ENERGY

main52615-53070iUSE20200712-200908

main52615-53110iUSE20200908

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-30030-A0×2iUSE20201108-201208

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-30030-A5×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89348-30030-B0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-30030-B1×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

main89348-30030-C0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-30030-C2×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-30030-D2×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-30030-J6×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89348-30030-P1×2iUSE20201109-201208

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-44010×2iUSE20200712-201008

CLEARANCE & BACK SONAR-WITH

main89348-64020-A1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-64020-B6×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89348-64020-B7×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-64020-C1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-64020-C4×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-64020-D0×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-64020-J1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-30030-A0×2iUSE20201108-201208

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-30030-A5×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89348-30030-B0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-30030-B1×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

main89348-30030-C0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-30030-C2×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-30030-D2×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-30030-J6×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89348-30030-P1×2iUSE20201109-201208

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-44010×2iUSE20200712-201008

CLEARANCE & BACK SONAR-WITH

main89348-64020-A1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-64020-B6×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89348-64020-B7×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-64020-C1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-64020-C4×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-64020-D0×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-64020-J1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

9010906334

main90109-06334

9010906383

main90109-06383

9011906782

main90119-06782

9012908001

main90129-08001

9015960431

main90159-60431

9015960498

main90159-60498

9015960500

main90159-60500

9015960602

main90159-60602

9017906349

main90179-06349

9018906066

main90189-06066

9018906148

main90189-06148

9018906203

main90189-06203

9046711039

main90467-11039

43 parts on this diagram · 1 diagram in section
