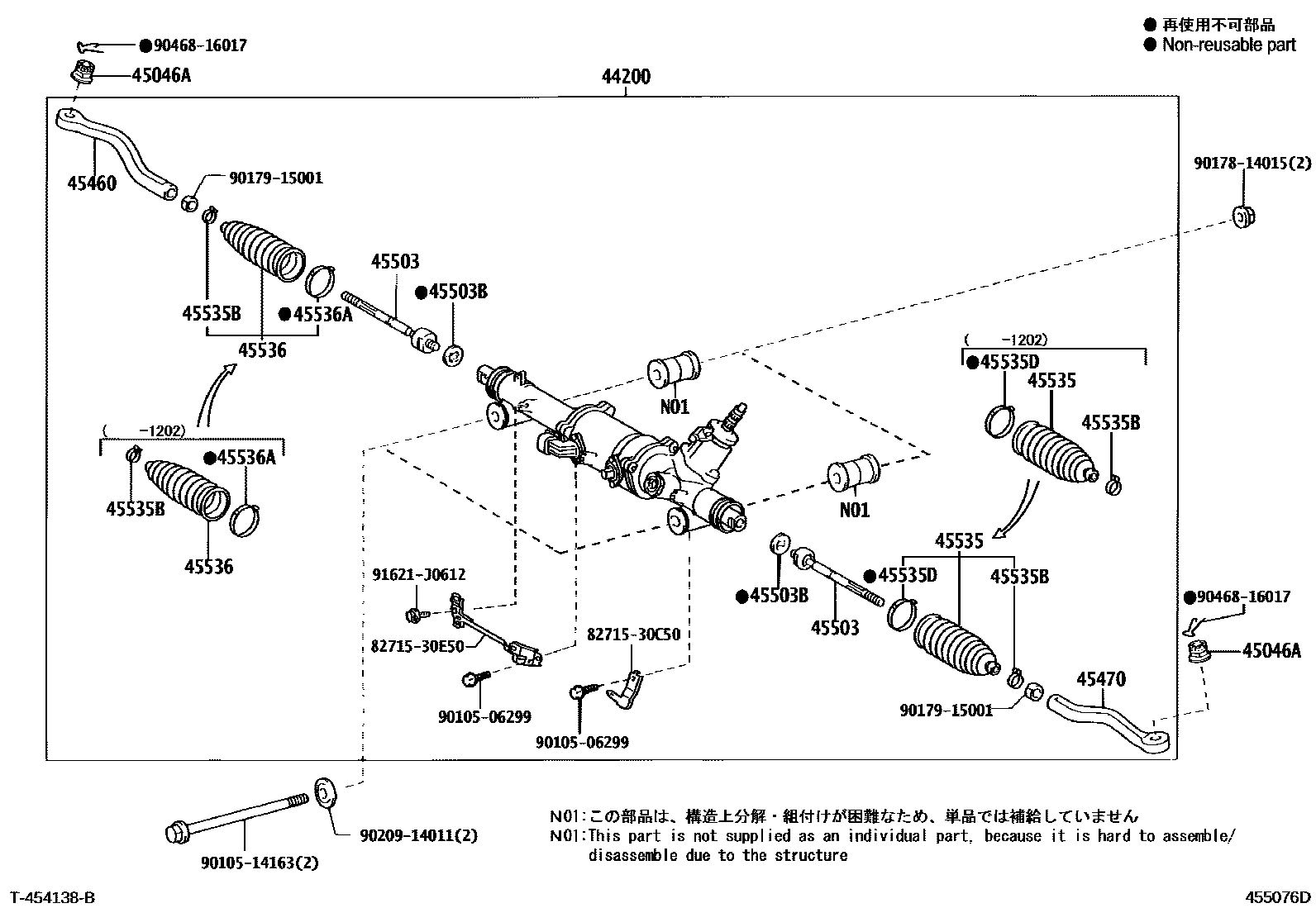

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-53130iUSE20200712-201109

main44200-53131iUSE20201110

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iUSE20200712

45460ROD ASSY, TIE, RH

main45463-30130iUSE20200712

45470ROD ASSY, TIE, LH

main45464-30060iUSE20200712

45503END SUB-ASSY, STEERING RACK

main45503-30070×2iUSE20200712

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iUSE20200712

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030iUSE20200712-201202

main45535-59045iUSE20201202-201205

main45535-59065iUSE20201401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iUSE20200712

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iUSE20200712-201408

45536BOOT, STEERING RACK, NO.2

main45535-30030iUSE20200712-201202

main45535-59045iUSE20201202-201205

main45535-59065iUSE20201401

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iUSE20200712-201408

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530E50BRACKET,WIRING HARNESS CLAMP

main82715-30E50

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

20 parts on this diagram · 1 diagram in section
