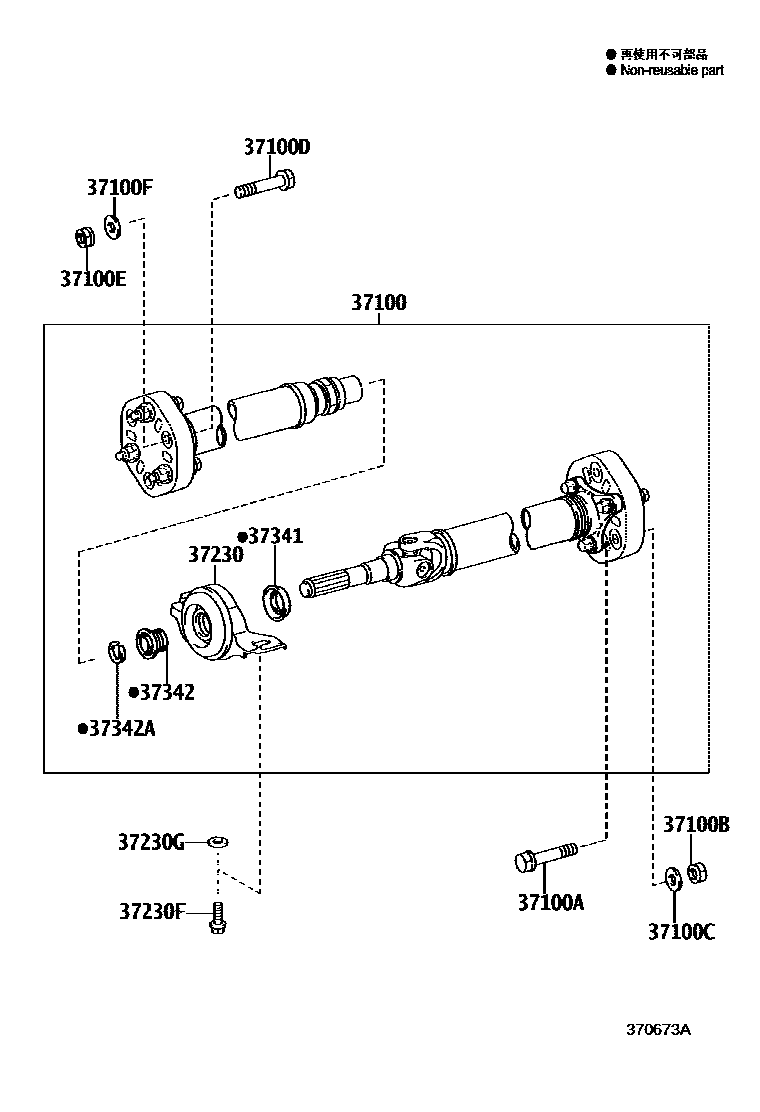

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-53120iUSE20200712

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-12265×3iUSE20200712

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-12128×3iUSE20200712

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-12059×3iUSE20200712

37100DBOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90105-12265×3iUSE20200712

37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90179-12128×3iUSE20200712

37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-12059×3iUSE20200712

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-30181iUSE20200712

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10902×2iUSE20200712

L=33

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008×2iUSE20200712

T=4.5

main90201-10017×2iUSE20200712

T=9.0

main90201-10033×2iUSE20200712

T=6.5

main90201-10034×2iUSE20200712

T=11.0

main90201-10106×2iUSE20200712

T=2.0

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-22010iUSE20200712

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-50010iUSE20200712

37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)

main90520-28009iUSE20200712

13 parts on this diagram · 1 diagram in section
