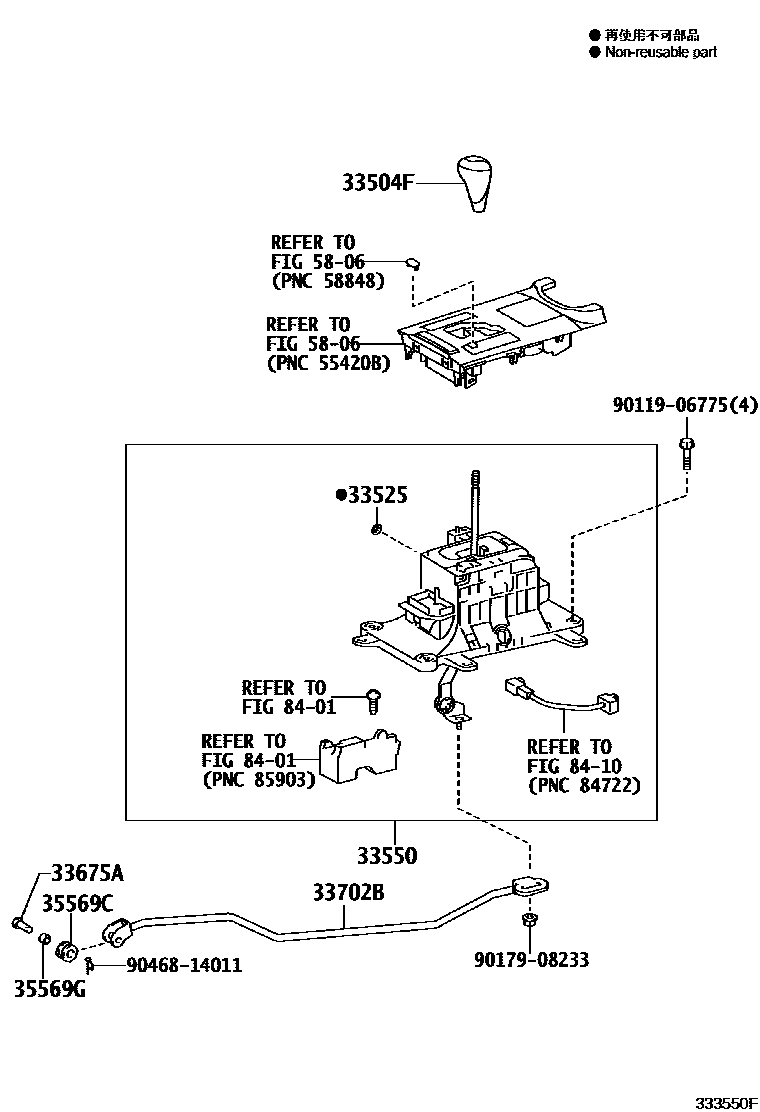

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-53100-C0iUSE20200712-200908

BLACK,TRIM2#

main33504-53100-D0iUSE20200908-201008

TERRA COTTA,TRIM22

main33504-53100-D1iUSE20201108-201408

RED,TRIM24

main33504-53100-E0iUSE20201008-201108

ORANGE,TRIM23

33525SUPPORT, SHIFT LEVER

main33525-50020iUSE20200712-201408

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-53240iUSE20200712

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iUSE20200712

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30610iUSE20200712-201408

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iUSE20200712-201408

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iUSE20200712-201408

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

13 parts on this diagram · 1 diagram in section
