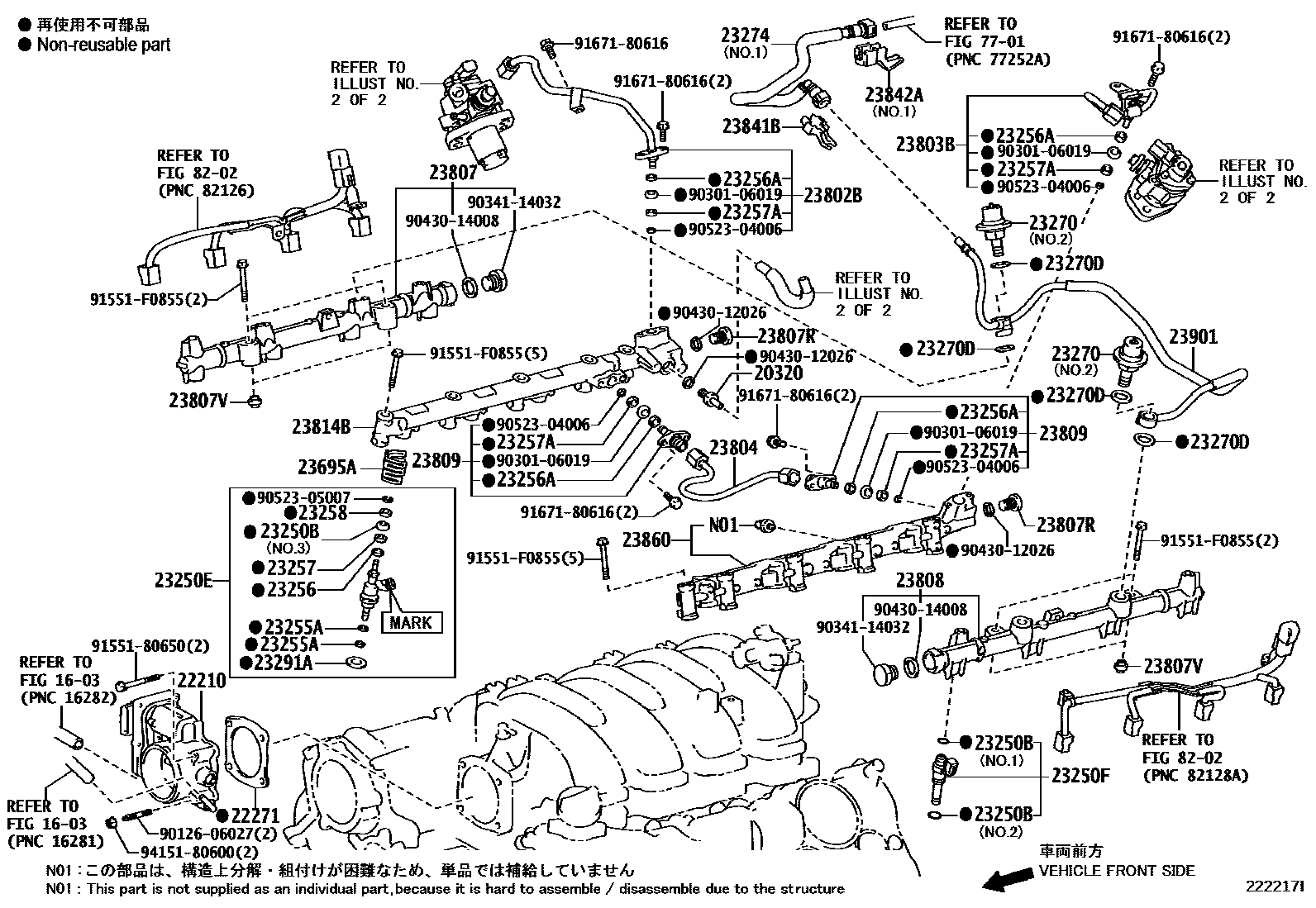

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
20320VALVE ASSY, FUEL RELIEF
22210BODY ASSY, THROTTLE
22271GASKET, THROTTLE BODY
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.3
NO.2
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK YELLOW
MARK BLACK
MARK BROWN
MARK GREEN
23250FINJECTOR ASSY, FUEL(FOR PORT)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23256ARING, FUEL PIPE, NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23257ARING, FUEL PIPE, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
23270DAMPER ASSY, FUEL PRESSURE PULSATION
NO.2
NO.2
NO.2
NO.1
NO.1
23270DGASKET(FOR PULSATION DAMPER)
23274HOSE, FUEL, NO.3
NO.2
NO.1
23291AINSULATOR, INJECTOR VIBRATION
23695ACLAMP, NOZZLE HOLDER
23802BPIPE SUB-ASSY, FUEL, NO.2
23803BPIPE SUB-ASSY, FUEL, NO.3
23804PIPE SUB-ASSY, FUEL, NO.4
23807PIPE SUB-ASSY, FUEL DELIVERY
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2
23809SUPPORT SUB-ASSY, FUEL PIPE
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
NO.1
NO.2
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
23901TUBE SUB-ASSY, FUEL
7701FUEL TANK & TUBE
8202WIRING & CLAMP
9012606027
main90126-06027
9030106019
main90301-06019
9034114032
main90341-14032
9043012026
main90430-12026
9043014008
main90430-14008
9052304006
main90523-04006
9052305007
main90523-05007
9155180650
main91551-80650
91551F0855
main91551-F0855
9167180616
main91671-80616
9415180600
main94151-80600
44 parts on this diagram · 2 diagrams in section
