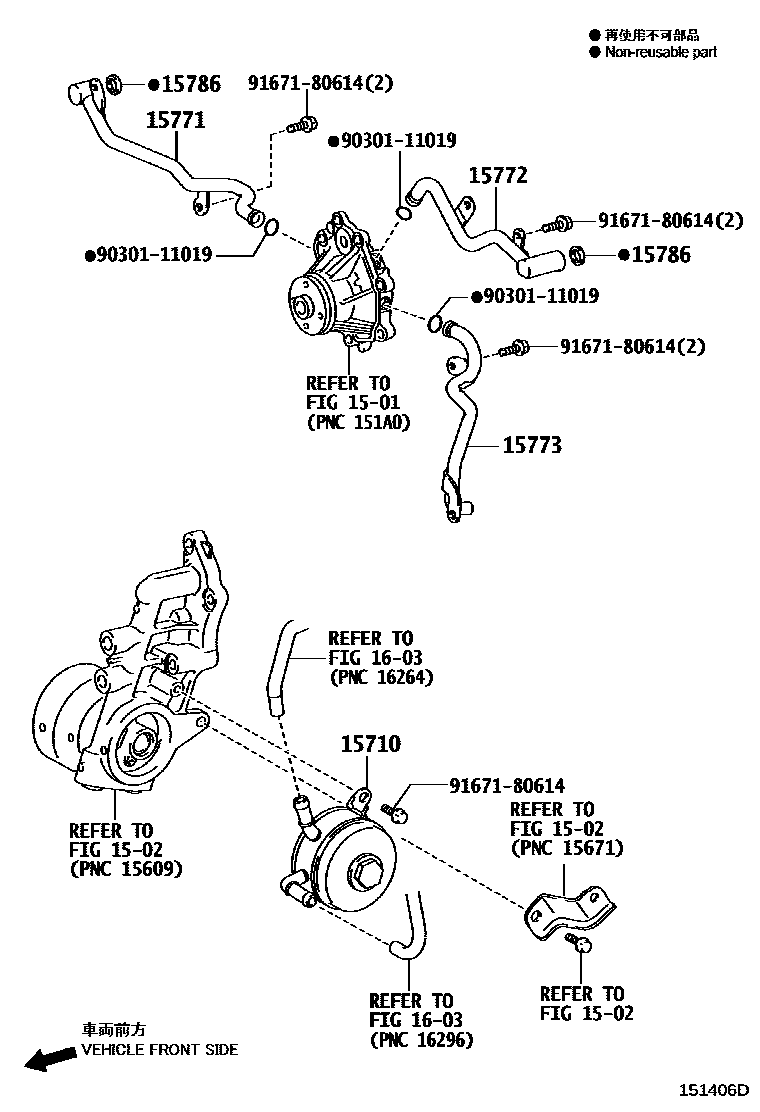

ENGINE OIL COOLER

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15700-38030i2URGSE..USE20200712

15771PIPE, OIL, NO.1

main15771-38010i2URGSE..USE20200712

15772PIPE, OIL, NO.2

main15772-38010i2URGSE..USE20200712

15773PIPE, OIL, NO.3

main15773-38020i2URGSE..USE20200712

15786SEAL, OIL PIPE

main15786-38010×2i2URGSE..USE20200712

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9030111019

main90301-11019

9167180614

main91671-80614

10 parts on this diagram · 1 diagram in section
