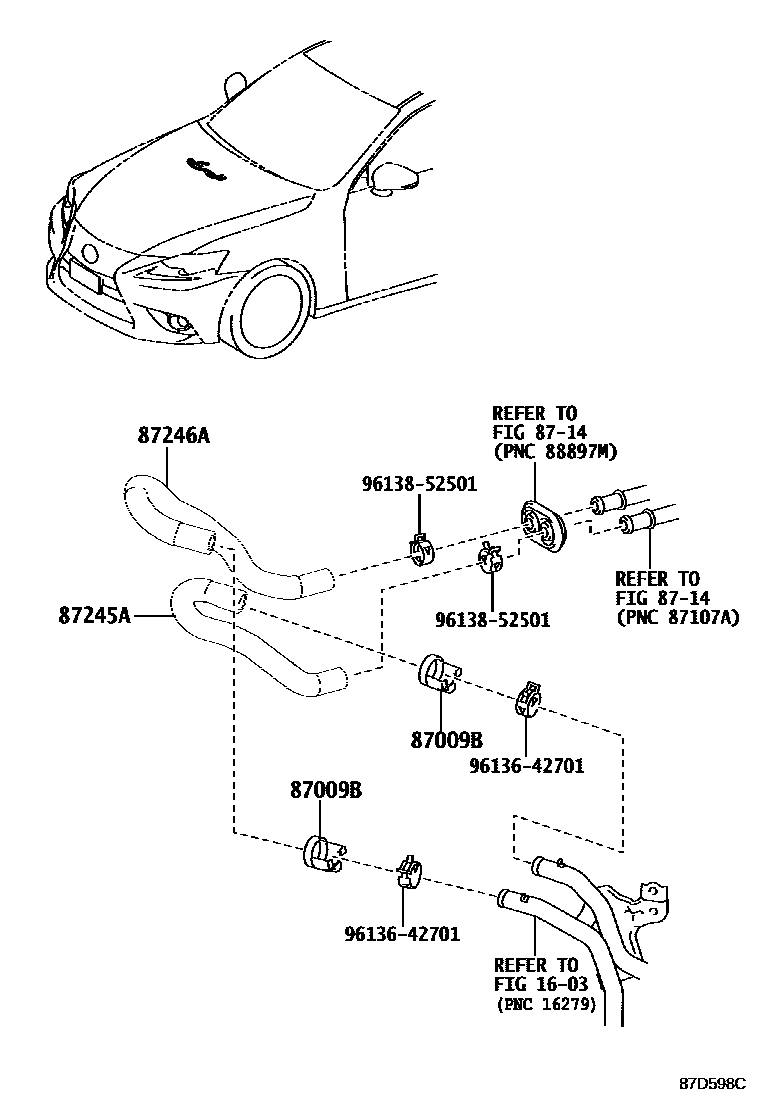

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87009BHOSE SET, WATER

main87009-11010×2iASE30,GSE3#,USE30202111

main87009-30040×2iGSE3#201304-201508

main87009-50020×2iASE30201610-201709

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-24440iUSE30202111

87245AHOSE, HEATER WATER, INLET A

main87245-30D10iGSE3#201710-202009

main87245-53180iGSE3#201304-201508

main87245-53200iASE30202111

87246HOSE, HEATER WATER, OUTLET

main87245-24450iUSE30202111

87246AHOSE, HEATER WATER, OUTLET A

main87245-30D20iGSE3#202111

main87245-53130iGSE3#201304-201508

main87245-53210iASE30201508-201610

9613642701

main96136-42701

9613852501

main96138-52501

9 parts on this diagram · 4 diagrams in section
