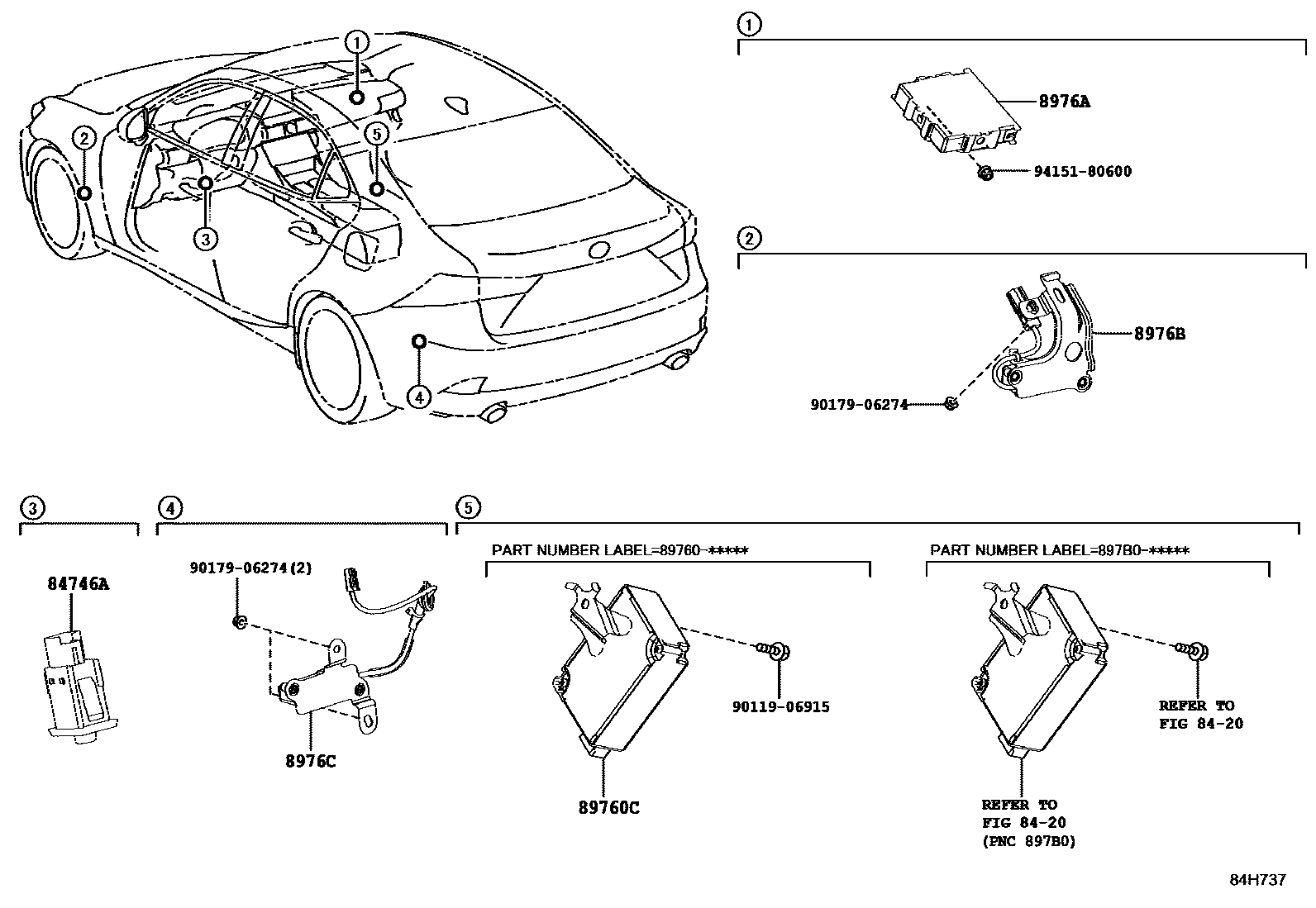

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-50010iASE30,GSE3#201508-201610

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-53070iGSE30201304-201407

KOREA SPEC

main89760-53080iGSE30201304-201407

KOREA SPEC&F SPORT

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-53010iGSE3#201304-201310

main8976A-53030iGSE3#201311-201505

main8976A-53031iGSE3#201506-201508

main8976A-53032iASE30,GSE3#201812-202009

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-53010iGSE3#201304-201409

main8976B-53011iASE30,GSE3#201508-201610

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-24010iGSE3#201407-201409

main8976C-24011iGSE3#201410-201508

main8976C-30010iGSE3#201304-201406

9011906915

main90119-06915

9017906274

main90179-06274

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
