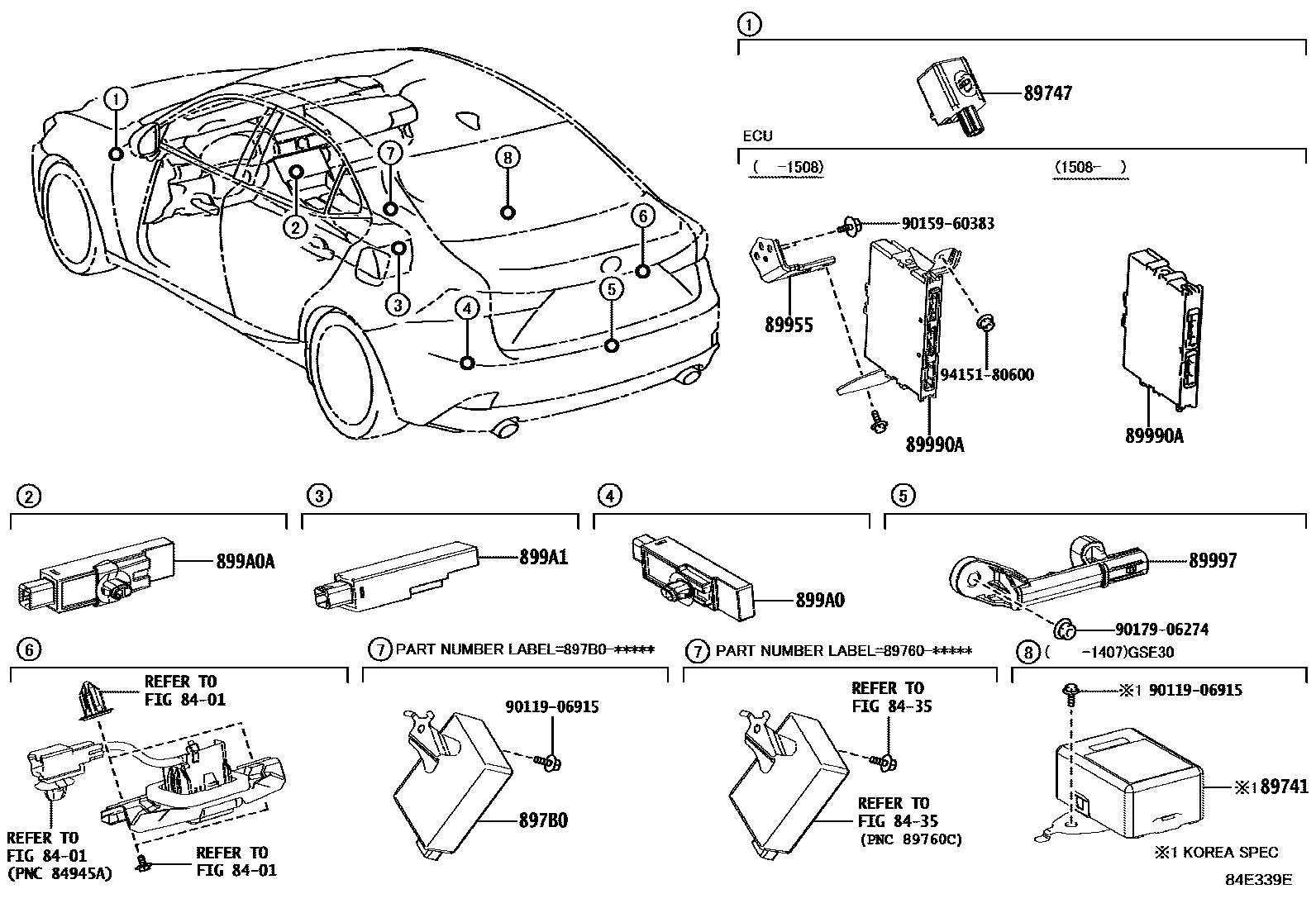

WIRELESS DOOR LOCK

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89741RECEIVER, DOOR CONTROL

main89740-53450iGSE30201304-201407

KOREA SPEC

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASE30,GSE3#201508-201610

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-53020iGSE3#201304-201504

main897B0-53021iASE30,GSE3#201508-201607

main897B0-53022iASE30,GSE3#201610-202009

main897B0-53100iASE30201508-201610

KOREA SPEC

main897B0-53110iASE30201508-201610

KOREA SPEC&F SPORT

89955BRACKET, SMART KEY COMPUTER

main89955-53010iGSE3#201304-201508

89990ACOMPUTER ASSY, SMART KEY

main89990-53310iGSE3#201304-201508

main89990-53380iASE30,GSE3#201508-201610

main89990-53381iASE30,GSE3#201710-201808

main89990-53382iASE30,GSE3#201809-201909

main89990-53430iASE30,GSE3#,USE30202209

main89990-53500iASE30,GSE3#202009-202110

main89990-53550iASE30,GSE3#201909-202009

main89990-53501iASE30202311

ISRAEL SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC)

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGSE3#201304-201508

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iGSE3#201304-201508

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-60010iGSE3#201304-201508

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-60010iGSE3#201304-201508

9011906915

main90119-06915

9015960383

main90159-60383

9017906274

main90179-06274

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
