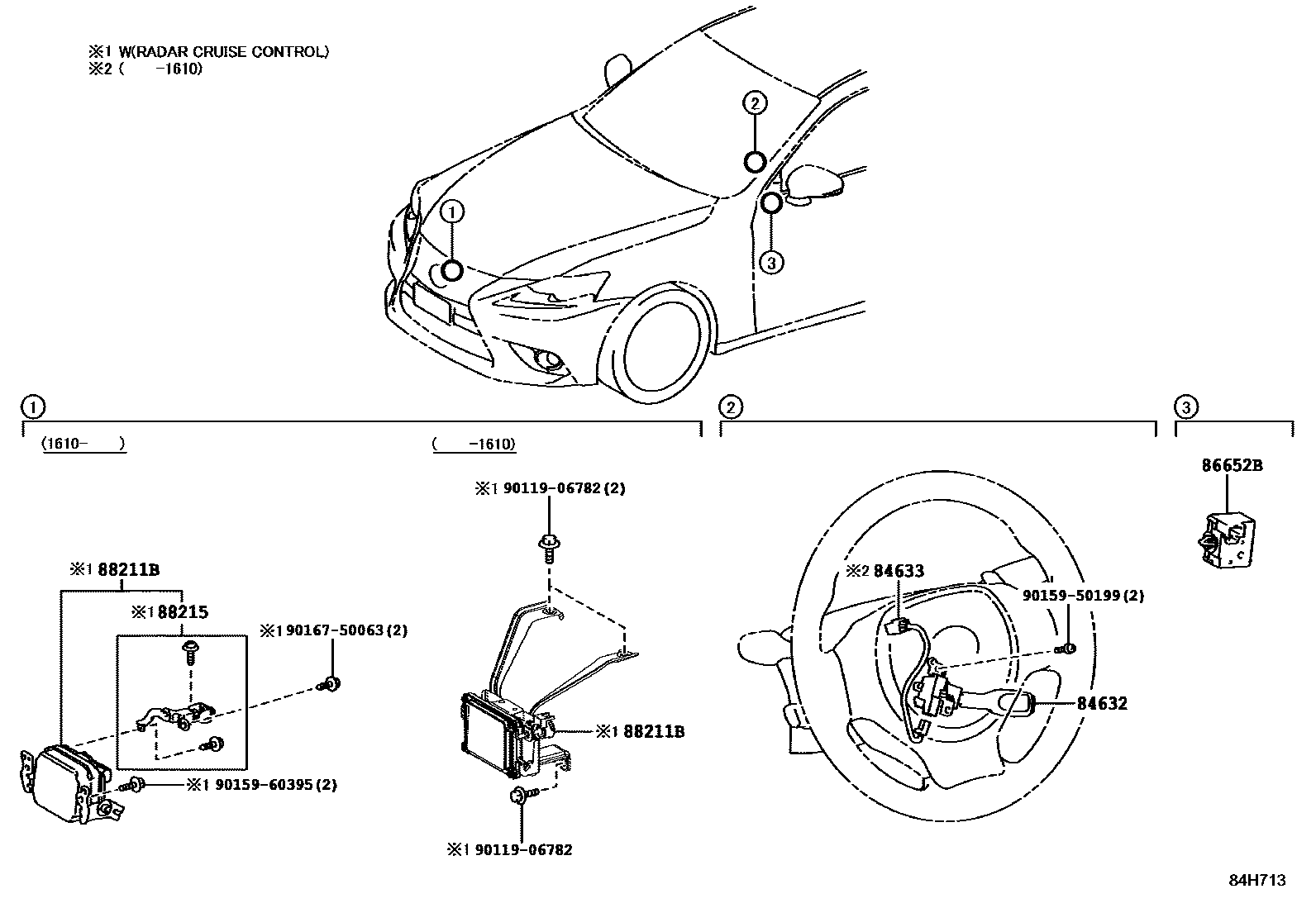

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-48010iASE30,GSE3#202009-202110

main84632-30020supersedes 84632-48010iASE30,GSE3#201508-201610

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main84632-53010iASE30201710-202009

PRE-COLLISION SYSTEM-WITHOUT

84633WIRE, CRUISE CONTROL SWITCH

main84633-76020supersedes 84633-76010iASE30,GSE3#201508-201610

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

86652BBUZZER, SKID CONTROL

main86652-50010iASE30,GSE3#202009-202110

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-62020iASE30,GSE3#,USE30202111

main88210-47090iASE30; ASE30,GSE3#201610-201709

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

main88210-48070iASE30; ASE30,GSE3#201710-201907

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

main88210-48071iASE30; ASE30,GSE3#201908-202009

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

main88210-53140supersedes 88210-48071iASE30,GSE3#201508-201610

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iASE30; ASE30,GSE3#201610-202009

KOREA SPEC; PRE-COLLISION SYSTEM-WITHOUT

9011906782

main90119-06782

9015950199

main90159-50199

9015960395

main90159-60395

9016750063

main90167-50063

9 parts on this diagram · 2 diagrams in section
