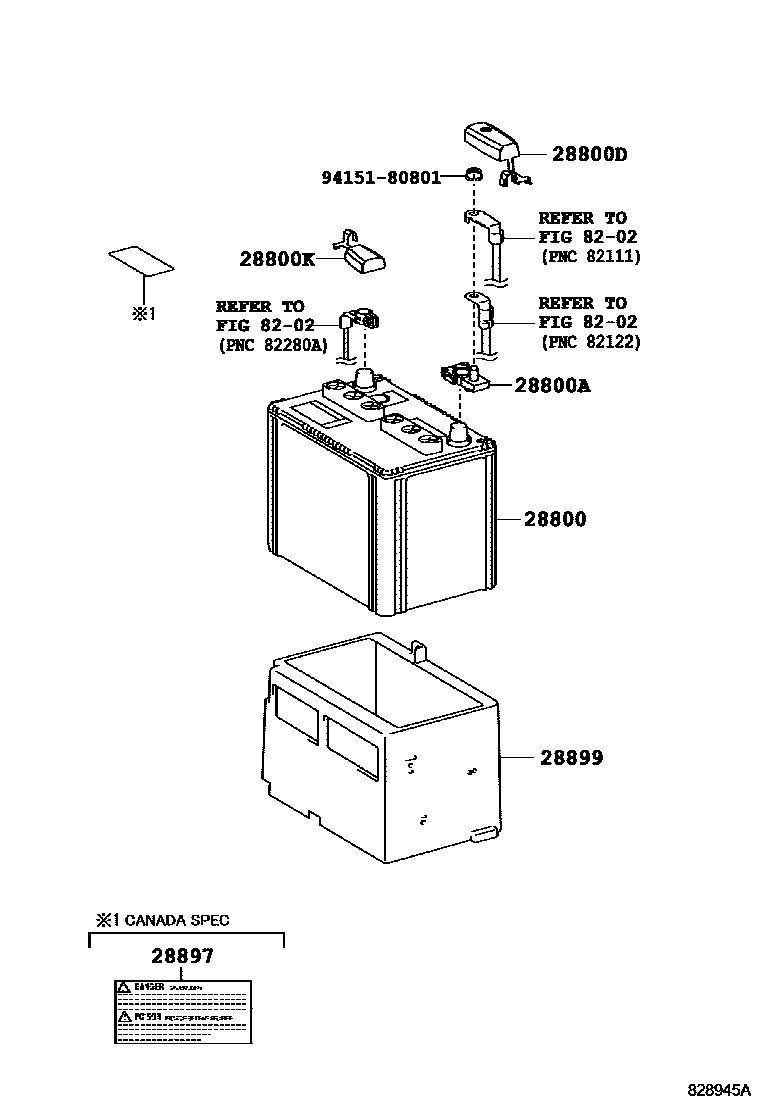

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-38100i2GRF,4GRFSE..GSE3#201304-201508

80D26R

main28800-38101i8ARFTS,2GRFKS,2URGSE..ASE30,GSE3#,USE30202207-202405

80D26R

main28800-38102i8ARFTS,2GRFKS,2URGSE..ASE30,GSE3#,USE30202406

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i2GRF,4GRFSE..GSE3#201304-201508

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i2GRF,4GRFSE..GSE3#201304-201508

main82821-50471i8ARFTS,2GRFKS,2URGSE..ASE30,GSE3#,USE30202209

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRF,4GRFSE..GSE3#201304-201508

28897PLATE, BATTERY CAUTION

main28897-31021i2GRF,4GRFSE..GSE3#201304-201508

CANADA SPEC

28899INSULATOR, BATTERY

main28899-31160i2GRF,4GRFSE..GSE3#201304-201508

main28899-36110i8ARFTS,2GRF..ASE30,GSE3#201508-201610

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

8 parts on this diagram · 2 diagrams in section
