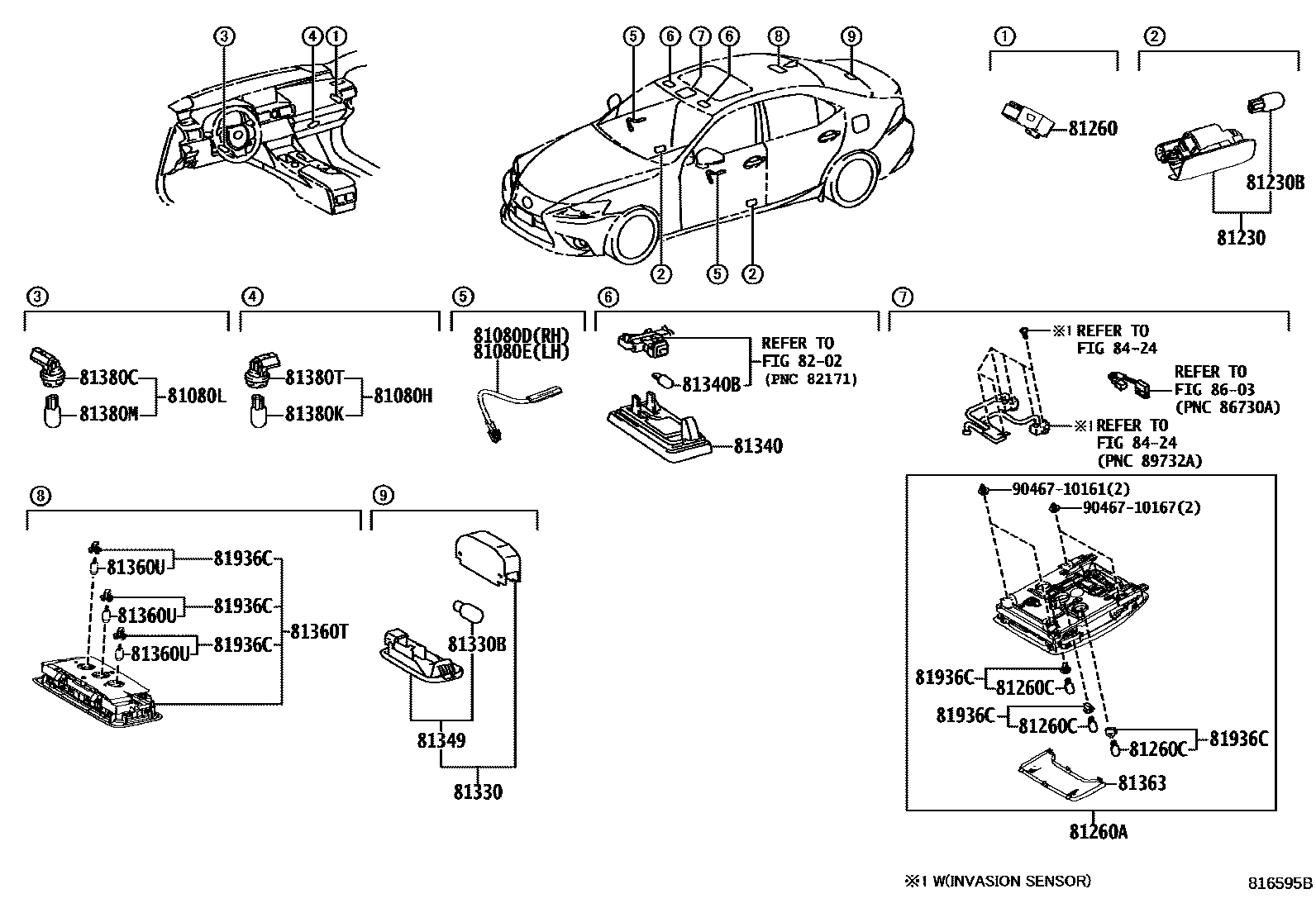

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
ECRU,TRIM01,02,03,11,12,13,5#
LT.GRAY,TRIM21,22,23,91,92,93
BLACK,TRIM04,05,14,15,2#,3#,94,95
ECRU,TRIM11,13,5#
LT.GRAY,TRIM21,23,9#
BLACK,TRIM14,15,24,25,3#,8#
CANADA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#; KOREA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#
CANADA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM01,02,03,11,12,13,5#; KOREA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM01,02,03,11,12,13,5#
CANADA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,12,13,20,21,22,23; KOREA SPEC&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,12,13,20,21,22,23
CANADA SPEC&F SPORT&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM10,14,20,24,3#; CANADA SPEC&THE CRAFTED LINE&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM32; KOREA SPEC&F SPORT&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM10,14,20,24,3#; KOREA SPEC&THE CRAFTED LINE&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM32
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SECURITY HORN&INVASION SENSOR)&MOON ROOF-WITHOUT&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM1#,5#; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM1#,5#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM21,22,23,9#; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM21,22,23,9#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM24,25,3#; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&MOON ROOF-WITHOUT&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM24,25,3#
CANADA SPEC&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#; HAWAII SPEC&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#; KOREA SPEC&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#; USA POSSESSION(GUAM,PUERTO RICO) SPEC&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#
KOREA SPEC&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM01,02,03,11,12,13,5#; KOREA SPEC&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM01,02,03,11,12,13,5#
CANADA SPEC&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,14,20,21,24; HAWAII SPEC&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,14,20,21,24; KOREA SPEC&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,14,20,21,24; USA POSSESSION(GUAM,PUERTO RICO) SPEC&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM10,11,14,20,21,24
CANADA SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM13,23,3#; HAWAII SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM13,23,3#; KOREA SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM13,23,3#; USA POSSESSION(GUAM,PUERTO RICO) SPEC&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM13,23,3#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SECURITY HORN&INVASION SENSOR)&MAYDAY SYSTEM-WITHOUT,IVORY,TRIM0#,5#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM1#,5#; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,ECRU,TRIM1#,5#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM21,22,23,9#; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,LT.GRAY,TRIM21,22,23,9#
KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SECURITY HORN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM04,05,24,25,26,27,3#,94,95; KOREA SPEC&ANTI-THEFT SYSTEM-WITH(SECURITY HORN & INVASION SENSOR)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,BLACK,TRIM04,05,24,25,26,27,3#,94,95
GUAM SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#; GUAM SPEC,BLACK,TRIM0#,2#,3#,6#,7#
GUAM SPEC,BLACK,TRIM0#,2#,3#,4#,6#,7#,8#; GUAM SPEC,BLACK,TRIM0#,5#,6#,7#,8#
GUAM SPEC&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#; GUAM SPEC&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,6#,7#; ISRAEL SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#
GUAM SPEC&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#,8#; GUAM SPEC&MOON ROOF-WITH,BLACK,TRIM0#,5#,6#,7#,8#; ISRAEL SPEC&ANTI-THEFT SYSTEM-WITHOUT&MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#,8#
MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#; MOON ROOF-WITH,BLACK,TRIM0#,6#,7#
MOON ROOF-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#,8#; MOON ROOF-WITH,BLACK,TRIM0#,5#,6#,7#,8#
81260CBULB(FOR MAP LAMP)
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81349BODY, LUGGAGE COMPARTMENT LAMP
81360TLAMP ASSY, SPOT
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,3#,6#,7#
IVORY,TRIM0#,5#
ECRU,TRIM01,02,03,11,12,13,5#
LT.GRAY,TRIM10,11,14,20,21,24
BLACK,TRIM04,05,14,15,2#,3#,8#,94,95
81360UBULB, SPOT LAMP
81363LENS, ROOM LAMP, OUTER
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
81936CBULB ASSY
8202WIRING & CLAMP
8424ANTI-THEFT DEVICE
8603NAVIGATION & FRONT MONITOR DISPLAY
9046710161
main90467-10161
9046710167
main90467-10167
27 parts on this diagram · 3 diagrams in section
