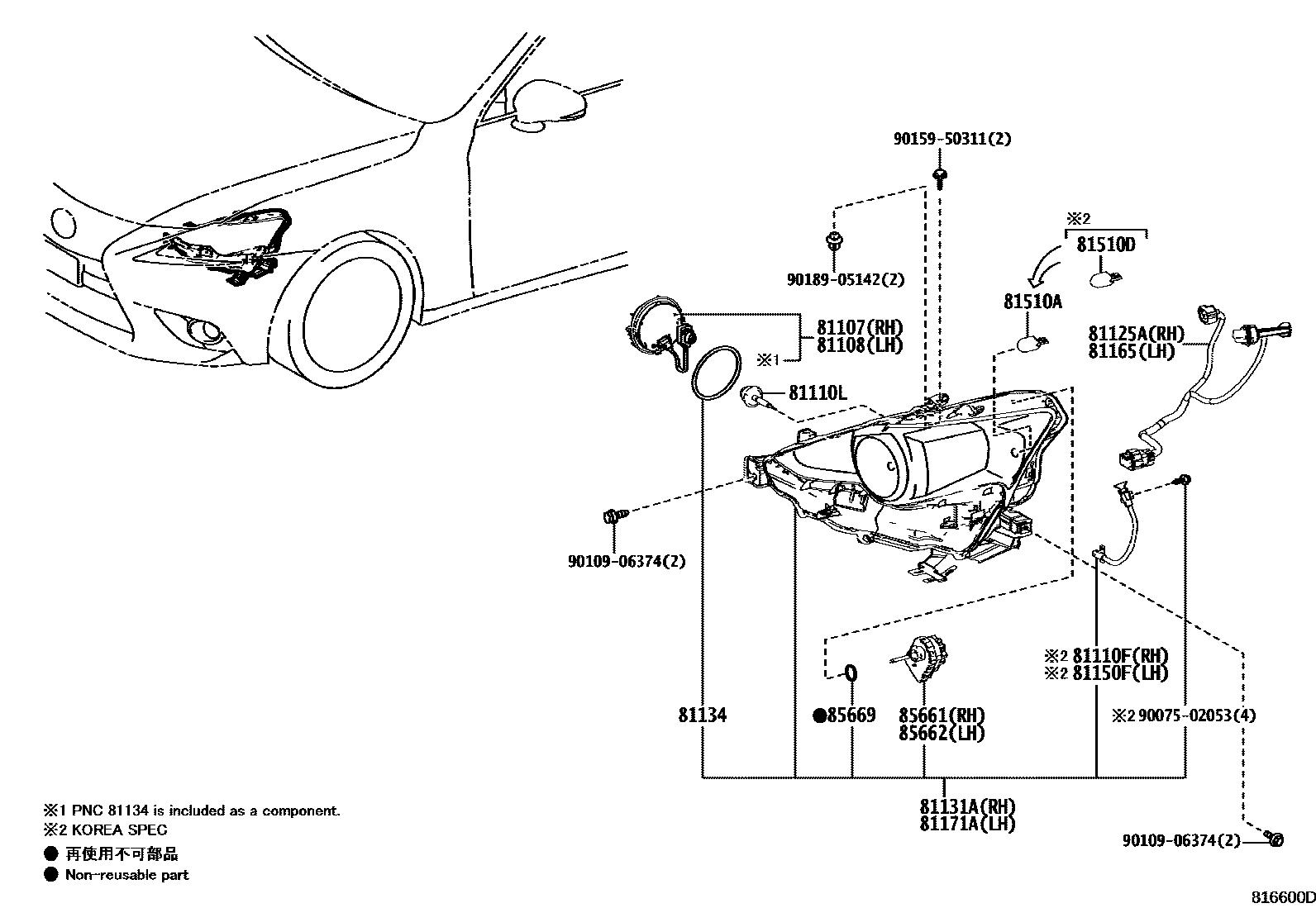

HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-53750×2supersedes 81107-60F10i201304-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); KOREA SPEC&HEADLAMP-LED

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-53750×2supersedes 81107-60F10i201304-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); KOREA SPEC&HEADLAMP-LED

81110FGEAR UNIT ASSY, RH NO.1

main90075-50028i201508-201610

KOREA SPEC&HEADLAMP-LED

main90075-50029i201508-201610

KOREA SPEC

81110LBULB, DISCHARGE HEADLAMP

main90981-20024×2i201304-201508

42V 35W

81125ACORD, HEADLAMP, RH

main81125-53A00i202111

main81125-53700i201304-201508

KOREA SPEC

main81125-53730i201508-201610

KOREA SPEC&HEADLAMP-LED

main81125-53750supersedes 81125-53720i201304-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main82214-53010i201610-202009

HEADLAMP-LED(PROJECTOR) & WITH(*AHB & *AFLS); LUXURY PACKAGE

81131AUNIT, HEADLAMP, RH

main81140-53820i201710-202009

HEADLAMP-LED(PROJECTOR) & WITH(*AHB & *AFLS)

main81145-53710i201304-201502

KOREA SPEC

main81145-53711i201502-201508

KOREA SPEC

main81145-53740i201304-201501

KOREA SPEC&HEADLAMP-LED

main81145-53741i201501-201508

KOREA SPEC&HEADLAMP-LED

main81145-53750supersedes 81145-53721i201304-201410

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53751supersedes 81145-53721i201410-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81145-53800i201710-202009

KOREA SPEC

main81145-53850i201610-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81145-53880i201809-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81134GASKET, HEADLAMP

main90075-23003×4i202111

main81134-53750supersedes 90075-23002i201304-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM); KOREA SPEC&HEADLAMP-LED

81150FGEAR UNIT ASSY, LH NO.1

main90075-50028i201508-201610

KOREA SPEC&HEADLAMP-LED

main90075-50029i201304-201508

KOREA SPEC

81165CORD, HEADLAMP, LH

main81125-53A00i202009-202110

main81125-53700i201508-201610

KOREA SPEC

main81165-53730i201304-201508

KOREA SPEC&HEADLAMP-LED

main81165-53750supersedes 81125-53720i201304-201508

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main82225-53010i201610-202009

HEADLAMP-LED(PROJECTOR) & WITH(*AHB & *AFLS); LUXURY PACKAGE

81171AUNIT, HEADLAMP, LH

main81070-53820i201610-202009

HEADLAMP-LED(PROJECTOR) & WITH(*AHB & *AFLS)

main81185-53710i201304-201502

KOREA SPEC

main81185-53711i201502-201508

KOREA SPEC

main81185-53740i201304-201501

KOREA SPEC&HEADLAMP-LED

main81185-53741i201508-201610

KOREA SPEC&HEADLAMP-LED

main81185-53750supersedes 81185-53721i201304-201410

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53751supersedes 81185-53810i201508-201610

HEADLAMP-LED; HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)

main81185-53800i201610-201710

KOREA SPEC&HEADLAMP-LED(PROJECTOR)

main81185-53850i201610-202009

KOREA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED)

main81185-53880i201809-202009

HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB)

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201304-201508

12V 28/8W

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2i202009-202110

12V 21W,AMBER

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12020i201508-201610

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12020i201304-201508

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i201304-201508

9007502053

main90075-02053

9010906374

main90109-06374

9015950311

main90159-50311

9018905142

main90189-05142

19 parts on this diagram · 10 diagrams in section
