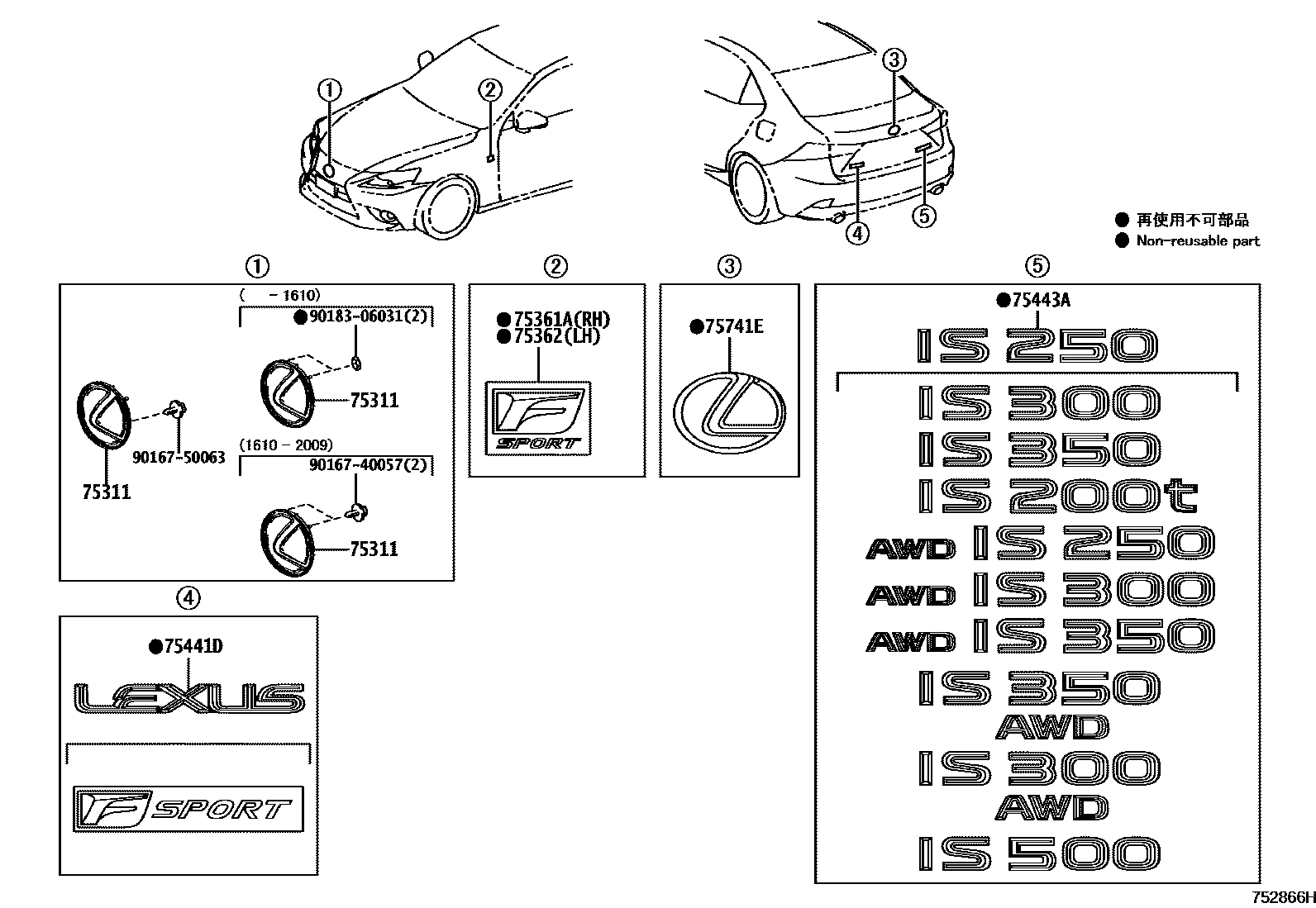

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02171iASE30,GSE3#,USE30202111

main53141-48050supersedes 90975-02125iGSE3#201304-201508

PRE-COLLISION SYSTEM-WITH(*PBA & *PB)

main90975-02107iASE30201610-202009

PRE-COLLISION SYSTEM-WITHOUT

75361APLATE, FRONT FENDER NAME, NO.1

main75361-53060iUSE30202111

F SPORT

main75352-53010supersedes 75361-53050iGSE31,36202209

F-SPORT,F SPORT DESIGN

main75361-53030iASE30; ASE30,GSE3#201508-201610

F SPORT,F SPORT; F SPORT,KOREA SPEC&F SPORT

main75361-53050iASE30,GSE37; GSE31,36202111

F SPORT; F SPORT,F SPORT

75362PLATE, FRONT FENDER NAME, NO.2

main75362-53060iUSE30202111

F SPORT

main75352-53020supersedes 75362-53050iGSE31,36202209

F-SPORT,F SPORT DESIGN

main75362-53030iGSE30,35201410-201508

F SPORT,THE CRAFTED LINE

main75362-53050iASE30,GSE37; GSE31,36202009-202110

F SPORT; F SPORT,F SPORT

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75443-53410iASE30,GSE37; GSE31,36202009-202110

F SPORT; F SPORT,F SPORT

main75441-53110iGSE30201304-201508

LEXUS,KOREA SPEC

main75443-53270iASE30,GSE3#201610-202009

F SPORT,F SPORT

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-53200iGSE30201304-201508

IS 250

main75443-53210iGSE31201610-202009

IS 350

main75443-53220iGSE35201304-201508

AWD IS 250

main75443-53230iGSE36201508-201610

AWD IS 350

main75443-53280iASE30201610-201710

IS 200T

main75443-53310iGSE37201508-201610

AWD IS 300

main75443-53330iASE30201710-202009

IS 300

main75443-53350iGSE31202009-202110

IS 350

main75443-53360iGSE36202009-202110

IS 350 AWD

main75443-53390iGSE37202111

IS 300 AWD

main75443-53400iASE30202009-202110

IS 300

main75443-53420iUSE30202111

IS 500

75741EEMBLEM, SYMBOL

main90975-02078iGSE3#201304-201508

main90975-02109iASE30,GSE3#,USE30202209

main90975-02154iASE30,GSE3#202009-202110

9016740057

main90167-40057

9016750063

main90167-50063

9018306031

main90183-06031

9 parts on this diagram · 1 diagram in section
