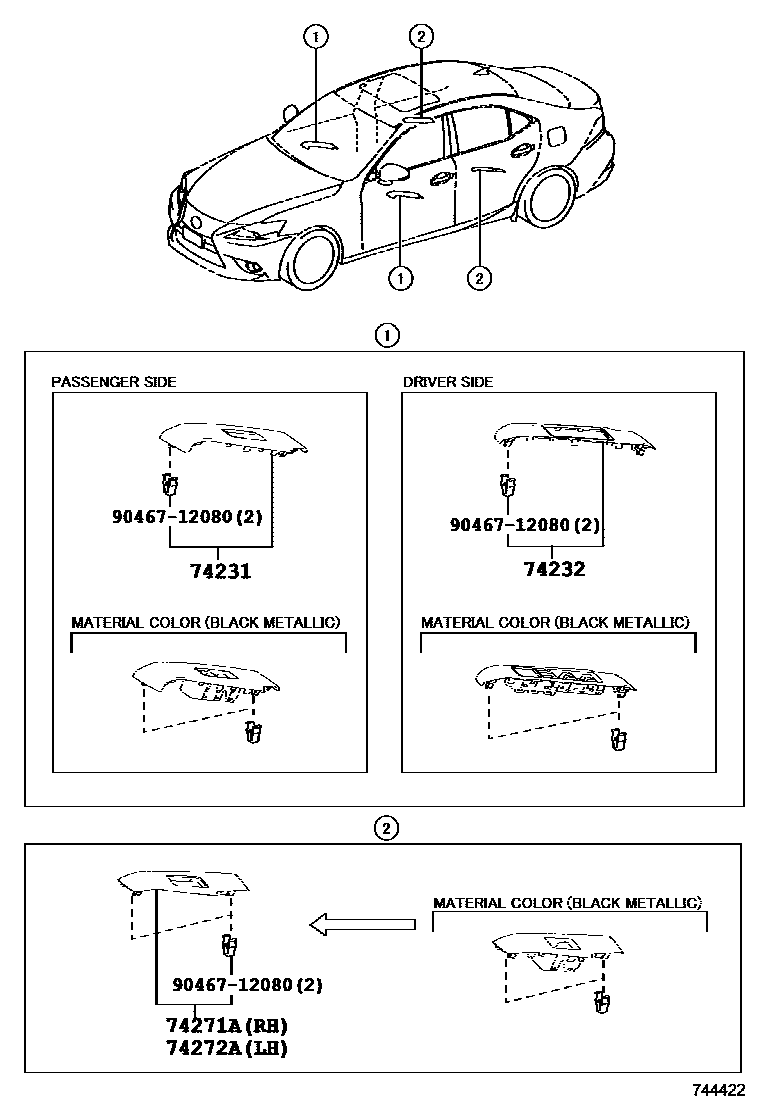

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK ME. 21BK25,TRIM0#,1#,2#,5#
BLACK METALLIC,TRIM0#,1#,2#,5#
BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#; BLACK GEOMETRY FILM,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-BLACK GEOMETRY FILM,BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#
GLOVE BOX ORNAMENT PANEL-WOOD(GRAY),DK.GRAY,TRIM00,10,20,3#,50; GLOVE BOX ORNAMENT PANEL-WOOD(GRAY),DK.GRAY,TRIM00,10,20,50
GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51
GLOVE BOX ORNAMENT PANEL-BAMBOO,BROWN,TRIM0#,1#,2#,5#
GLOVE BOX-ALUMINUM,SILVER,TRIM1#,2#,3#,9#
GLOVE BOX-WOOD,LAZER CUT WOOD_22BK66,TRIM1#,2#,5#
POWER WINDOW(SWITCH BASE)- WOOD(BLACK),BLACK,TRIM2#,3#,4#
POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#; POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#,7#
F SPORT&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL),BLACK,TRIM1#,2#,3#
GLOVE BOX-METALLIC FILM(WARM METAL),SILVER,TRIM1#,2#,5#,9#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),DK.GRAY HAIRLINE,TRIM1#,2#,3#
F SPORT&GLOVE BOX-FOR F SPORT(SPUTTER DEPOSITION WHEEL)
F SPORT&GLOVE BOX-FOR "I BLUE",AI,TRIM8#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#,8#
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK ME. 21BK25,TRIM0#,1#,2#,5#
BLACK METALLIC,TRIM0#,1#,2#,4#,5#,9#
BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#; BLACK GEOMETRY FILM,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-BLACK GEOMETRY FILM,BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),SILVER,TRIM0#,1#,2#,3#,9#
GLOVE BOX-METALLIC FILM(WARM METAL),SILVER,TRIM1#,2#,5#,9#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),DK.GRAY HAIRLINE,TRIM1#,2#,3#
F SPORT&GLOVE BOX-FOR F SPORT(SPUTTER DEPOSITION WHEEL)
F SPORT&GLOVE BOX-FOR "I BLUE",AI,TRIM8#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#,8#
LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,DK.GRAY,TRIM00,10,20,30,50; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,DK.GRAY,TRIM00,10,20,50
LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,31,51; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51
GLOVE BOX ORNAMENT PANEL-BAMBOO,BROWN,TRIM0#,1#,2#,5#
GLOVE BOX-ALUMINUM,SILVER,TRIM1#,2#,3#,9#
GLOVE BOX-WOOD,LAZER CUT WOOD_22BK66,TRIM1#,2#,5#
POWER WINDOW(SWITCH BASE)- WOOD(BLACK),BLACK,TRIM2#,3#,4#
POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#; POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#,7#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
BLACK ME. 21BK25,TRIM0#,1#,2#,5#
BLACK METALLIC,TRIM0#,1#,2#,5#
BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#; BLACK GEOMETRY FILM,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-BLACK GEOMETRY FILM,BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#
GLOVE BOX ORNAMENT PANEL-WOOD(GRAY),DK.GRAY,TRIM00,10,20,3#,50; GLOVE BOX ORNAMENT PANEL-WOOD(GRAY),DK.GRAY,TRIM00,10,20,50
LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,31,51; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51
GLOVE BOX ORNAMENT PANEL-BAMBOO,BROWN,TRIM0#,1#,2#,5#
GLOVE BOX-ALUMINUM,SILVER,TRIM1#,2#,3#,9#
POWER WINDOW(SWITCH BASE)- WOOD(BLACK),BLACK,TRIM2#,3#,4#
GLOVE BOX-WOOD,LAZER CUT WOOD_22BK66,TRIM1#,2#,5#
POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#; POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#,7#
F SPORT&GLOVE BOX ORNAMENT PANEL-METALLIC FILM(WEDGE METAL),BLACK,TRIM1#,2#,3#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),DK.GRAY HAIRLINE,TRIM1#,2#,3#
GLOVE BOX-METALLIC FILM(WARM METAL),SILVER,TRIM1#,2#,5#,9#
F SPORT&GLOVE BOX-FOR F SPORT(SPUTTER DEPOSITION WHEEL)
F SPORT&GLOVE BOX-FOR "I BLUE",AI,TRIM8#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#,8#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK ME. 21BK25,TRIM0#,1#,2#,5#
BLACK METALLIC,TRIM0#,1#,2#,5#
BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#; BLACK GEOMETRY FILM,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-BLACK GEOMETRY FILM,BLACK GEOMETRY FILM,TRIM0#,2#,3#,4#,6#,7#,8#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),BLACK,TRIM0#,1#,2#,3#,9#
GLOVE BOX-METALLIC FILM(WARM METAL),SILVER,TRIM1#,2#,5#,9#
F SPORT&GLOVE BOX-METALLIC FILM(WEDGE METAL),DK.GRAY HAIRLINE,TRIM1#,2#,3#
F SPORT&GLOVE BOX-FOR F SPORT(SPUTTER DEPOSITION WHEEL)
F SPORT&GLOVE BOX-FOR "I BLUE",AI,TRIM8#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#
POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,5#,6#,7#,8#; POWER WINDOW(SWITCH BASE)-SATIN(CHROME PLATED),SATIN CHROME HAIRLINE,TRIM0#,6#,7#,8#
GLOVE BOX ORNAMENT PANEL-WOOD,DK.GRAY,TRIM00,10,20,3#,50; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,DK.GRAY,TRIM00,10,20,50
GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51; LUXURY PACKAGE&GLOVE BOX ORNAMENT PANEL-WOOD,BROWN,TRIM01,11,21,51
GLOVE BOX ORNAMENT PANEL-BAMBOO,BROWN,TRIM0#,1#,2#,5#
GLOVE BOX-ALUMINUM,SILVER,TRIM1#,2#,3#,9#
POWER WINDOW(SWITCH BASE)- WOOD(BLACK),BLACK,TRIM2#,3#,4#
GLOVE BOX-WOOD,LAZER CUT WOOD_22BK66,TRIM1#,2#,5#
POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#; POWER WINDOW(SWITCH BASE)- WOOD(SILVER),GINSUMI,TRIM6#,7#
9046712080
main90467-12080
5 parts on this diagram · 2 diagrams in section
