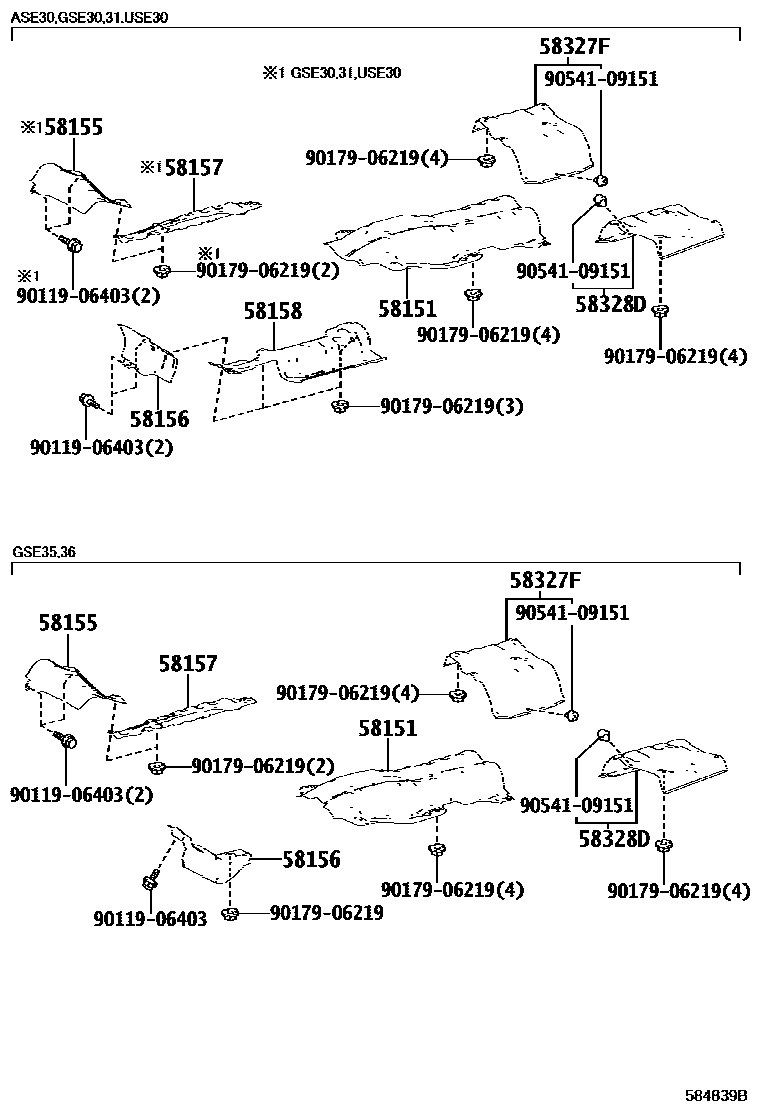

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-53040iASE30,GSE31201508-201610

main58151-53041iASE30,GSE31,USE30202111

main58151-53050iGSE36,37202111

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30050iUSE30202111

main58155-30060iGSE3#201710-202009

main58155-30070iGSE3#201304-201508

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30090iGSE35,36201304-201508

main58156-30100iGSE31201508-201610

main58156-30120iUSE30202111

main58156-30150iGSE31202009-202110

main58156-30160iASE30201610-202009

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iGSE3#201304-201508

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30063iUSE30202111

main58158-30070iASE30,GSE31201508-201610

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-53030iGSE3#201304-201508

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-53030iGSE3#201304-201508

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 1 diagram in section
