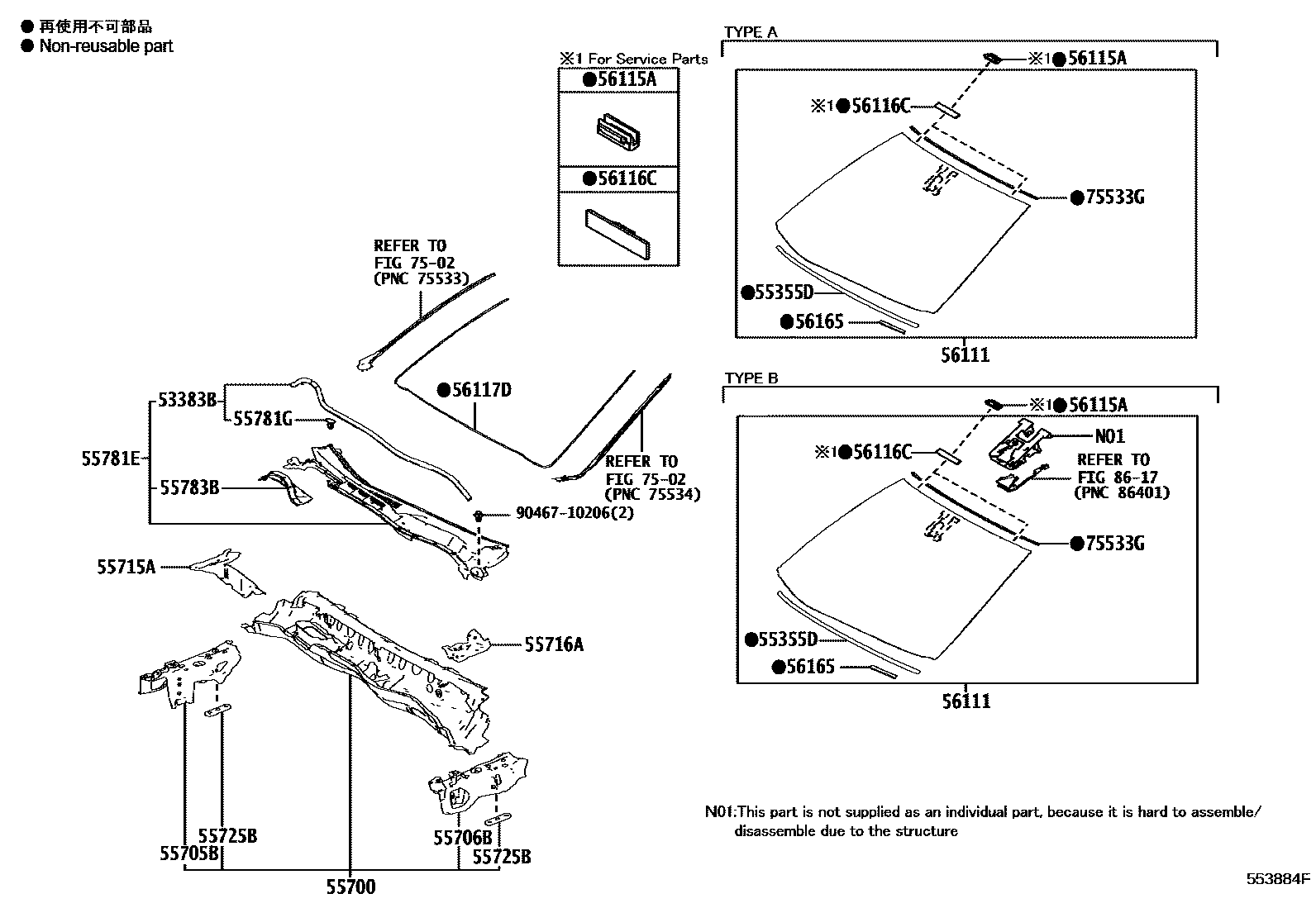

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-53080i202111

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-53090i202111

55700PANEL ASSY, FRONT

main55700-53110i201508-201610

main55700-53130i202009-202110

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53020i201304-201508

main55705-53030i202111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53020i201610-202009

main55706-53030i202111

55715ABRACE, COWL TOP TO APRON, RH

main55715-53050i201610-202009

main55715-53070i202009-202110

55716ABRACE, COWL TOP TO APRON, LH

main55716-53050i201610-202009

main55716-53070i202009-202110

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2i202009-202110

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53130supersedes 55708-53120i201508-201610

COLD AREA SPEC

main55708-53150supersedes 55708-53140i202009-202110

COLD AREA SPEC

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×6i201304-201508

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-53050i201304-201508

main55783-53060i202111

56111GLASS, WINDSHIELD

main56101-53800i201304-201508

INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.; LUXURY PACKAGE&INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.

main56101-53810i201304-201508

INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT),TYPEA:REFER ILLUST.; LUXURY PACKAGE&INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT),TYPE A:REFER ILLUST.

main56101-53820supersedes 56101-53C01i201508-201610

COLD AREA SPEC

main56101-53840i201304-201508

COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.; LUXURY PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.

main56101-53850supersedes 56101-53C01i201508-201610

COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT)

main56101-53A90i201610-201710

KOREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; KOREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,TYPE A:REFER ILLUST.

main56101-53B00supersedes 56101-53C01i201610-201611

INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.

main56101-53B01supersedes 56101-53C01i201610-202009

INTERMITTENT WIPER-WITH(AUTO),TYPE B:REFER ILLUST.

main56101-53B30i201610-201710

KOREA SPEC&COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)&MAYDAY SYSTEM-WITHOUT,TYPE A:REFER ILLUST.; KOREA SPEC&COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)&MAYDAY SYSTEM-WITHOUT,TYPE A:REFER ILLUST.

main56101-53B40supersedes 56101-53C01i201610-201611

COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO),TYPE A:REFER ILLUST.

main56101-53B41supersedes 56101-53C01i201610-202009

COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO),TYPE B:REFER ILLUST.

main56101-53C50supersedes 56101-53C60i202111-202411

F SPORT&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)&GARAGE OPENER-WITH,TYPE B:REFER ILLUST.; ISRAEL SPEC&F SPORT&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR),TYPE B:REFERILLUST.

main56101-53C60i202209-202411

F SPORT DESIGN&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST&GARAGE OPENER-WITHOUT,TYPE B:REFER ILLUST.

main56101-53D10supersedes 56101-53C60i202009-202110

COLD AREA SPEC&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)&GARAGE OPENER-WITH&BLIND SPOT MONITOR-WITH,TYPE B:REFER ILLUST.; COLD AREA SPEC,TYPE B:REFER ILLUST.

main56101-53D50i202209-202411

F SPORT DESIGN&COLD AREA SPEC&WINDSHIELD WIPER CONTROL-INTERMITTENT(TIME ADJUSTMENT) & MIST&GARAGE OPENER-WITHOUT,TYPE B:REFER ILLUST.

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2i201508-201610

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i201304-201508

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010i201304-201508

L=2740; L=2740,COLD AREA SPEC; L=2740,COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO); L=2740,COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANEDEPARTURE ALERT); L=2740,INTERMITTENT WIPER-WITH(AUTO); L=2740,INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT); L=2740,LUXURY PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO); L=2740,LUXURY PACKAGE&COLD AREA SPEC&INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANE DEPARTURE ALERT); L=2740,LUXURY PACKAGE&INTERMITTENT WIPER-WITH(AUTO); L=2740,LUXURY PACKAGE&INTERMITTENT WIPER-WITH(AUTO)&LANE KEEPING ASSIST-WITH(LANEDEPARTURE ALERT)

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-30010i201304-201508

7502FRONT MOULDING

→ Go to FIG 75-02

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53050i201304-201508

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9046710206

main90467-10206

20 parts on this diagram · 1 diagram in section
