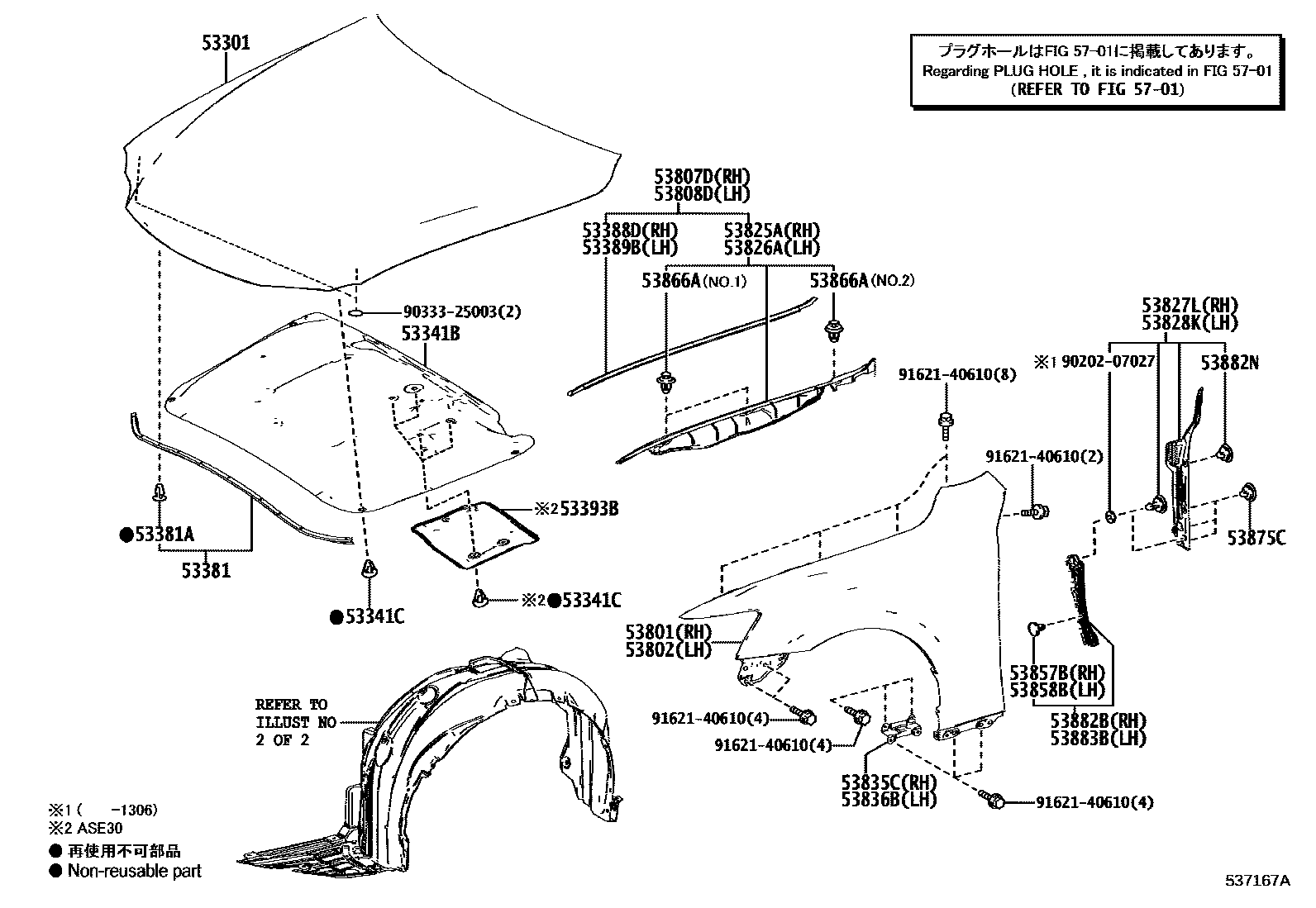

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1 0005 1FENDER LINER 0006 1FENDER LINER

53301HOOD SUB-ASSY

main53301-53040iGSE3#201304-201502

main53301-53041iGSE3#201502-201508

main53301-53100iASE30,GSE3#202209

main53301-53110iUSE30202209

main53301-53120iASE30,GSE3#202009-202110

main53301-53130iUSE30202111-202209

53341BINSULATOR, HOOD

main53341-53060iASE30201610-202009

main53341-53070iGSE3#201508-201610

main53341-53080iASE30202009-202110

main53341-53090iGSE3#202111

main53341-53100iUSE30202111

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×12iASE30; GSE3#; USE30202111

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53050iGSE3#201610-202009

main53381-53060iASE30201610-202009

main53381-53080iGSE3#202009-202110

main53381-53090iASE30202009-202110

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iASE30; GSE3#202009-202110

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-53040iGSE3#201304-201508

main53388-53050iASE30,GSE3#202009-202110

main53388-53060iUSE30202111

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-53040iGSE3#201304-201508

main53389-53050iASE30,GSE3#202009-202110

main53389-53060iUSE30202111

53393BPROTECTOR, HOOD, FRONT

main53393-53010iASE30201508-201610

main53393-53020iASE30202009-202110

53801FENDER SUB-ASSY, FRONT RH

main53801-53210iASE30,GSE3#202209

main53801-53230iUSE30202209

main53801-53240iASE30,GSE3#202111-202209

main53801-53250iUSE30202111-202209

main53801-53160supersedes 53801-53150iASE30,GSE3#201610-202009

F SPORT

53802FENDER SUB-ASSY, FRONT LH

main53802-53210iASE30,GSE3#202209

main53802-53230iUSE30202209

main53802-53240iASE30,GSE3#202111-202209

main53802-53250iUSE30202111-202209

main53802-53160supersedes 53802-53150iASE30,GSE3#201610-202009

F SPORT

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-53030iGSE3#201304-201508

main53807-53031iASE30,GSE3#201605-201610

main53807-53040iASE30,GSE3#202009-202110

main53807-53050iUSE30202111

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-53030iGSE3#201304-201508

main53808-53031iASE30,GSE3#201605-201610

main53808-53040iASE30,GSE3#202009-202110

main53808-53050iUSE30202111

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-53030iASE30,GSE3#201508-201610

main53825-53040iASE30,GSE3#202009-202110

main53825-53050iUSE30202111

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-53030iGSE3#201304-201508

main53826-53040iASE30,GSE3#202009-202110

main53826-53050iUSE30202111

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53040iGSE3#201304-201508

main53827-53050iASE30,GSE3#202009-202110

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53040iGSE3#201304-201508

main53828-53050iASE30,GSE3#202009-202110

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-53020iASE30,GSE3#201508-201610

main53835-53030iASE30,GSE3#202009-202110

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-53020iASE30,GSE3#201508-201610

main53836-53030iASE30,GSE3#202009-202110

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iASE30,GSE3#202009-202110

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iASE30,GSE3#201610-202009

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iASE30,GSE3#201610-202009

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-10162×4iGSE3#201304-201508

NO.1:REFER ILLUST.

main90467-10204×2iASE30,GSE3#201508-201610

NO.2:REFER ILLUST.

53875CCLIP, FRONT FENDER LINER

main90467-06205-C0×6iGSE3#201304-201508

BLACK

main90467-07214×18iASE30,GSE3#202009-202110

main90467-07223×6iASE30,GSE3#201710-202009

53882BSEAL, FRONT FENDER, RH

main53882-53030iGSE3#201304-201508

main53882-53040iASE30,GSE3#202009-202110

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×2iGSE3#201304-201508

BLACK

main90467-07223×2iASE30,GSE3#201710-202009

53883BSEAL, FRONT FENDER, LH

main53883-53030iGSE3#201304-201508

main53883-53050iASE30,GSE3#202009-202110

5701HOLE PLUG

→ Go to FIG 57-01

9020207027

main90202-07027

9033325003

main90333-25003

9162140610

main91621-40610

30 parts on this diagram · 6 diagrams in section
