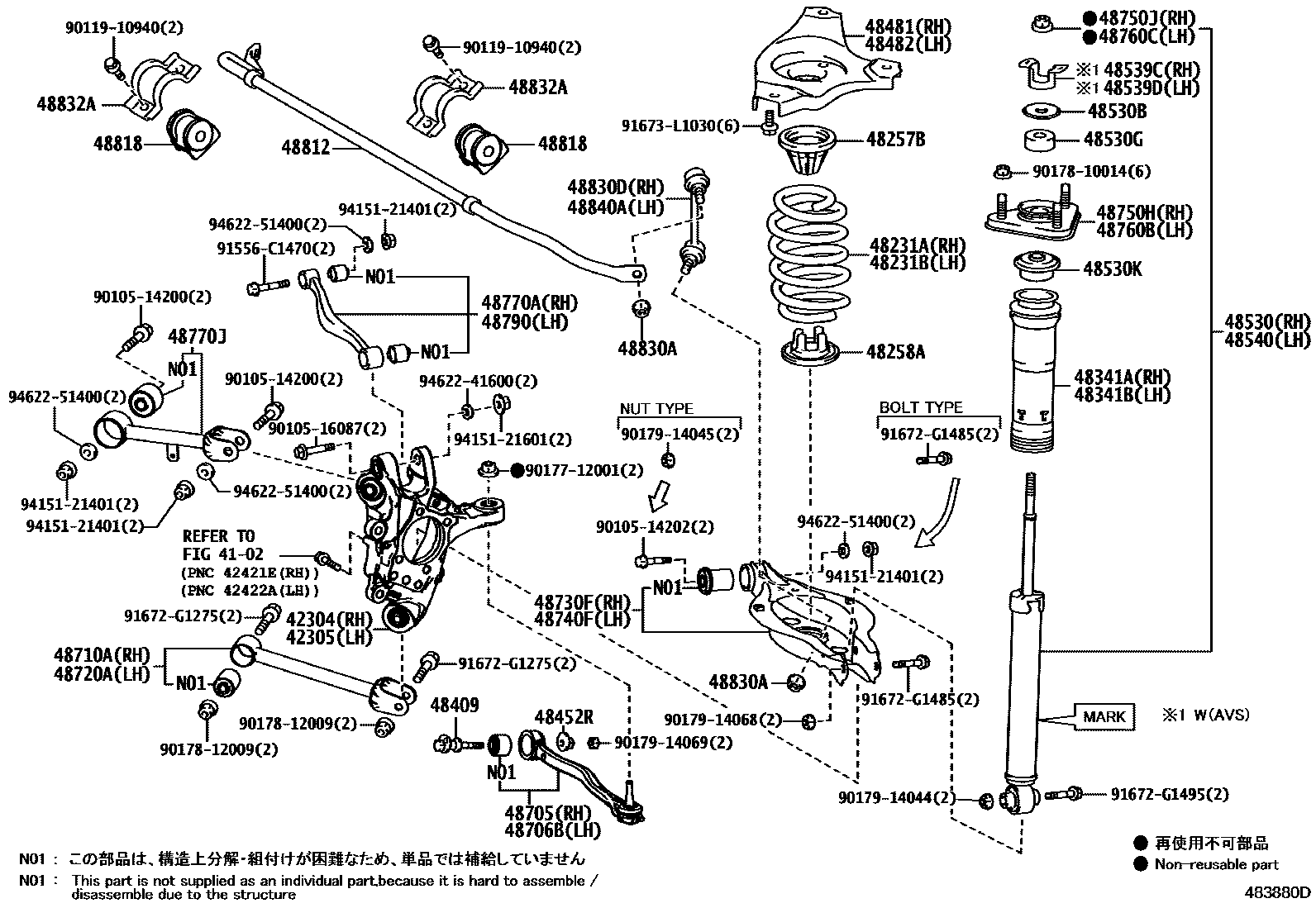

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30130iASE30,GSE3#,USE30202009-202110

main42304-53020iASE30,GSE3#201304-202009

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30130iASE30,GSE3#,USE30202009-202110

main42305-53020iASE30,GSE3#201304-202009

48231ASPRING, COIL, REAR RH

main48231-53300iGSE3#201304-201901

main48231-53301iASE30,GSE3#201902-202009

main48231-53420iASE30,GSE31202009-202110

main48231-53440iGSE36,37202009-202110

main48231-53460iUSE30202111-202208

main48231-53470iUSE30202209

48231BSPRING, COIL, REAR LH

main48231-53300iASE30,GSE3#201304-201901

main48231-53301iASE30,GSE3#201902-202009

main48231-53420iASE30,GSE31202009-202110

main48231-53440iGSE36,37202009-202110

main48231-53460iUSE30202111-202208

main48231-53470iUSE30202209

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-30080iASE30,GSE3#,USE30201304-202110

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30050iASE30,GSE3#,USE30201304-202110

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30170iASE30,GSE3#201304-202009

main48341-53060iASE30,GSE31202009-202110

main48341-53070iGSE36,37202009-202110

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30170iASE30,GSE3#201304-202009

main48341-53060iASE30,GSE31,USE30202009-202110

main48341-53070iGSE36,37202009-202110

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30031iASE30,GSE3#201304-202110

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30051iGSE3#201304-202110

48481SEAT, REAR SPRING, UPPER

main48481-30010iASE30,GSE3#201304-202110

48482SEAT, REAR SPRING, UPPER LH

main48482-30030iASE30,GSE3#201304-202110

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80584iASE30,GSE31201610-201711

MARK 48530-53420

main48530-80588iGSE36,37201610-201801

MARK 48530-53460

main48530-80665iGSE30,31201304-201610

MARK 48530-53300

main48530-80675iGSE35,36201304-201610

MARK 48530-53360

main48530-80837iASE30,GSE31201711-202009

MARK 48530-53421

main48530-80840iGSE36,37201801-202009

MARK 48530-53461

main48530-80A60iASE30202009-202310

MARK 48530-53490

main48530-80A61iASE30202009-202310

MARK 48530-53500,F SPORT

main48530-80A61iGSE31202009-202310

MARK 48530-53500

main48530-80A65iGSE37202009-202310

MARK 48530-53530

main48530-80A66iGSE36202009-202310

MARK 48530-53540

main48530-80A66iGSE36202009-202310

MARK 48530-53540,F SPORT

main48530-80B01iUSE30202111

MARK 48530-53590

main48530-80B88iASE30,GSE31202310

MARK 48530-53630

main48530-80B90iGSE37202310

MARK 48530-53650,F SPORT DESIGN

main48530-80B90iGSE36202310

MARK 48530-53650

main48530-80B91iGSE36202310

MARK 48530-53660

main48530-80B91iGSE37202310

MARK 48530-53660,F SPORT

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021iASE30,GSE3#201304-202110

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01101iASE30,GSE3#201304-202009

main90948-01104iASE30,GSE3#202009-202110

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48752-53010iASE30,GSE3#,USE30202009-202110

main90948-01102iASE30,GSE3#201304-202009

48539CBRACKET, ACTUATOR SUPPORT, REAR RH

main48539-30030iUSE30202111

AVS-WITH

48539DBRACKET, ACTUATOR SUPPORT, REAR LH

main48539-30030iUSE30202111

AVS-WITH

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80584iASE30,GSE31201610-201711

MARK 48530-53420

main48530-80588iGSE36,37201610-201801

MARK 48530-53460

main48530-80665iASE30,GSE31201304-201610

MARK 48530-53300

main48530-80675iGSE36,37201304-201610

MARK 48530-53360

main48530-80837iASE30,GSE31201711-202009

MARK 48530-53421

main48530-80840iGSE36,37201801-202009

MARK 48530-53461

main48530-80A60iASE30202009-202310

MARK 48530-53490

main48530-80A61iASE30202009-202310

MARK 48530-53500,F SPORT

main48530-80A61iASE30202009-202310

MARK 48530-53500

main48530-80A65iGSE37202009-202310

MARK 48530-53530

main48530-80A66iGSE36202009-202310

MARK 48530-53540,F SPORT

main48530-80A66iGSE36202009-202310

MARK 48530-53540

main48530-80B01iUSE30202111

MARK 48530-53590

main48530-80B88iASE30,GSE31202310

MARK 48530-53630

main48530-80B90iGSE37202310

MARK 48530-53650

main48530-80B90iGSE37202310

MARK 48530-53650,F SPORT DESIGN

main48530-80B91iGSE36202310

MARK 48530-53660

main48530-80B91iGSE36202310

MARK 48530-53660,F SPORT

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30120iGSE3#201304-202110

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30050iGSE3#201304-202110

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30240iGSE3#201304-202110

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30240iGSE3#201304-202110

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30140iGSE3#201304-202110

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30140iGSE3#201304-202110

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30200iGSE3#201304-202110

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iGSE3#201304-202110

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30200iGSE3#201304-202110

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iGSE3#201304-202110

48770AARM ASSY, UPPER CONTROL, REAR RH

main48790-30130iGSE3#201304-202009

main48790-53060iASE30,GSE3#202009-202110

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30120iGSE3#201304-201405

main48770-30150iGSE3#201405-201610

main48770-30151iASE30,GSE3#201610-202110

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-30140iASE30,GSE3#201304-202009

main48790-53050iASE30,GSE3#202009-202110

48812BAR, STABILIZER, REAR

main48812-24152iASE30,GSE31201801-202009

main48812-53050iGSE30,31201304-201610

main48812-53110iGSE36202009-202110

F SPORT

main48812-53120iGSE35,36201304-201610

main48812-53122iGSE36,37201801-202110

main48812-53140iASE30202009-202110

main48812-53150iGSE31,USE30202009-202110

F SPORT

48818BUSH, STABILIZER, REAR

main48818-24040iGSE37202009-202110

F SPORT

main48818-24040iASE30,GSE31201801-202009

main48818-24050iGSE36,37201801-202110

main48818-53080iASE30,GSE31201304-201610

main48818-53090iASE30,GSE31202009-202110

main48818-53100iGSE35,36201304-201610

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151iGSE3#201304-202110

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30100iGSE3#201304-202110

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-30070iGSE3#201304-202110

48840ALINK ASSY, REAR STABILIZER, LH

main48840-30030iGSE3#201304-202110

9010514200

main90105-14200

9010514202

main90105-14202

9010516087

main90105-16087

9011910940

main90119-10940

9017712001

main90177-12001

9017810014

main90178-10014

9017812009

main90178-12009

9017914044

main90179-14044

9017914045

main90179-14045

9017914068

main90179-14068

9017914069

main90179-14069

91556C1470

main91556-C1470

91672G1275

main91672-G1275

91672G1485

main91672-G1485

91672G1495

main91672-G1495

91673L1030

main91673-L1030

9415121401

main94151-21401

9415121601

main94151-21601

9462241600

main94622-41600

9462251400

main94622-51400
