STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW 0004 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i8ARFTS,2GRF..ASE30,GSE3#201508-201610

main28021-75210i2URGSE..USE30202111

28100STARTER ASSY

main28100-31071i2GRF,4GRFSE..GSE3#201304-201508

12V 1.7KW

main28100-31220i2GRF..GSE3#201710-202009

12V 1.7KW

main28100-36150i8ARFTS..ASE30201508-201610

12V 1.7KW

main28100-38091i2URGSE..USE30202111

12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRF..GSE3#201508-201610

main28110-31210i2GRFKS..GSE3#202009-202110

main28110-36150i8ARFTS..ASE30201610-202009

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i8ARFTS,2GRF..ASE30,GSE3#201610-202009

28120YOKE ASSY, STARTER

main28120-28060i2GRF,4GRFSE..GSE3#201304-201508

main28120-38090i2URGSE..USE30202111

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070i2GRF,4GRFSE..GSE3#201304-201508

main28130-36150i8ARFTS..ASE30201508-201610

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRF,4GRFSE..GSE3#201304-201508

28160ARMATURE ASSY, STARTER

main28160-21060i2GRF,4GRFSE..GSE3#201304-201508

main28160-36110i2URGSE..USE30202111

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRF,4GRFSE..GSE3#201304-201508

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRF,4GRFSE..GSE3#201304-201508

28255GEAR, PLANET

main28255-20020×3i2GRF,4GRFSE..GSE3#201304-201508

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9017908204

main90179-08204

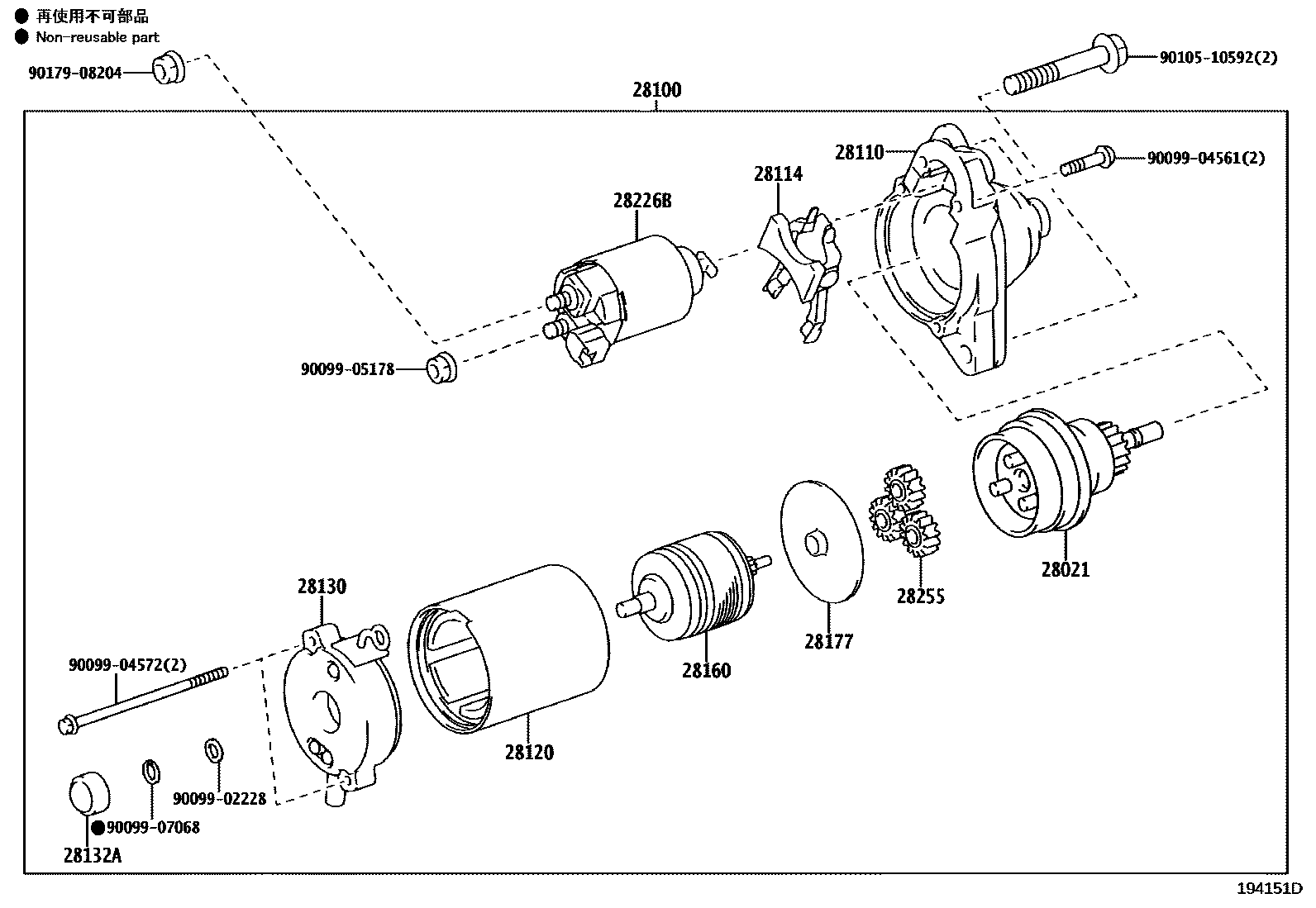

18 parts on this diagram · 4 diagrams in section
