VACUUM PIPING

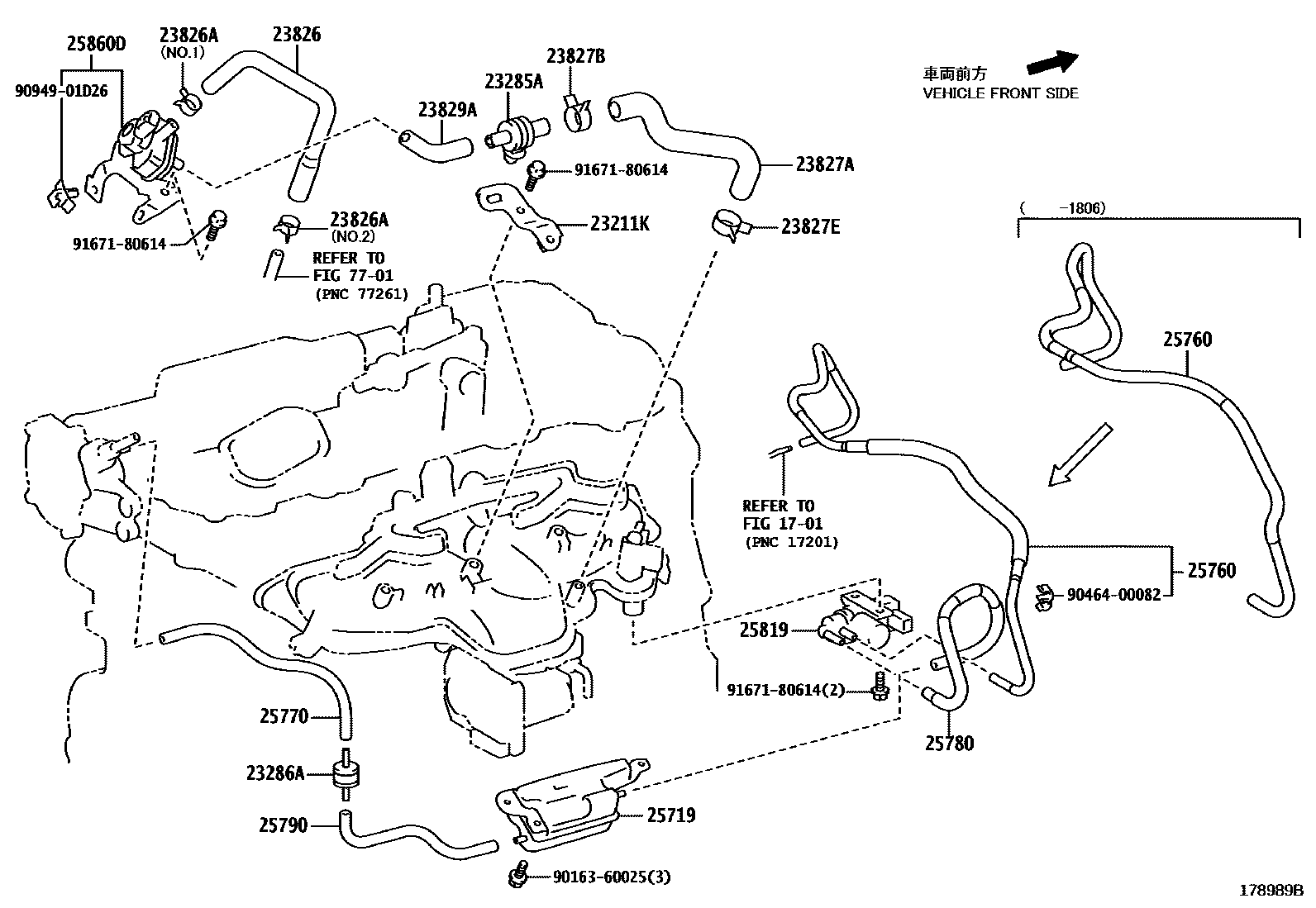

Parts diagram
1701MANIFOLD
→ Go to FIG 17-01
23211KBRACKET
main23211-36010i202111
23285AVALVE, CHECK, NO.1
main25748-25030i202304
main25748-36010i201508-201610
main90917-10065i202111
23286AVALVE, CHECK, NO.2
main90917-10065i201508-201610
23826HOSE, FUEL VAPOR FEED, NO.1
main23826-31030i201304-201508
main23826-31270i201710-202009
NO.1
main23826-31320i202111
NO.2
main23826-31330i201710-202009
NO.2
main23826-31430i202009-202110
NO.1
main23826-36230i202111
main23826-38030i202111
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
main90467-17021×2i202111
NO.1,2:REFER ILLUST.
main96133-41301i202111
main96136-41901i202009-202107
NO.2:REFER ILLUST.
23827AHOSE, FUEL VAPOR FEED, NO.2
main23827-31150i201304-201508
main23827-36150i201610-202009
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main90467-15022i202111
main90467-17021i202111
main96132-51300i201710-202009
main96136-42201i202009-202110
23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
main90467-15022i201304-201508
main90467-17021i202107-202110
main96136-41901i202009-202107
main96137-41901i202111
23829AHOSE, FUEL VAPOR FEED
main23826-36160i201508-201610
main23829-38070i202111
25719TANK, VACUUM SURGE
main25719-36010i201508-201610
25760HOSE ASSY, VACUUM TRANSMITTING
main25760-36050i201508-201610
main25760-36051i201806-202009
25770HOSE ASSY, VACUUM TRANSMITTING, NO.2
main25770-36010i201508-201610
25780HOSE ASSY, VACUUM TRANSMITTING, NO.3
main25780-36010i201508-201610
25790HOSE ASSY, VACUUM TRANSMITTING, NO.4
main25790-36010i201508-201610
25819VALVE ASSY, VACUUM REGULATING
main25819-0W010i201508-201610
25860VALVE ASSY, VACUUM SWITCHING, NO.1
main25860-31060i201304-201508
main25860-31090i201710-202009
main25860-31110i202009-202110
main25860-38030i202111
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
main25860-36111i201508-201610
7701FUEL TANK & TUBE
→ Go to FIG 77-01
9016360025
main90163-60025
9046400082
main90464-00082
9094901D26
main90949-01D26
9167180614
main91671-80614

23 parts on this diagram · 4 diagrams in section
