MANIFOLD

0001 1INTAKE MANIFOLD 0002 1EXHAUST MANIFOLD 0003 1TURBOCHARGER 0004 1 0005 1 0006 1 0007 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

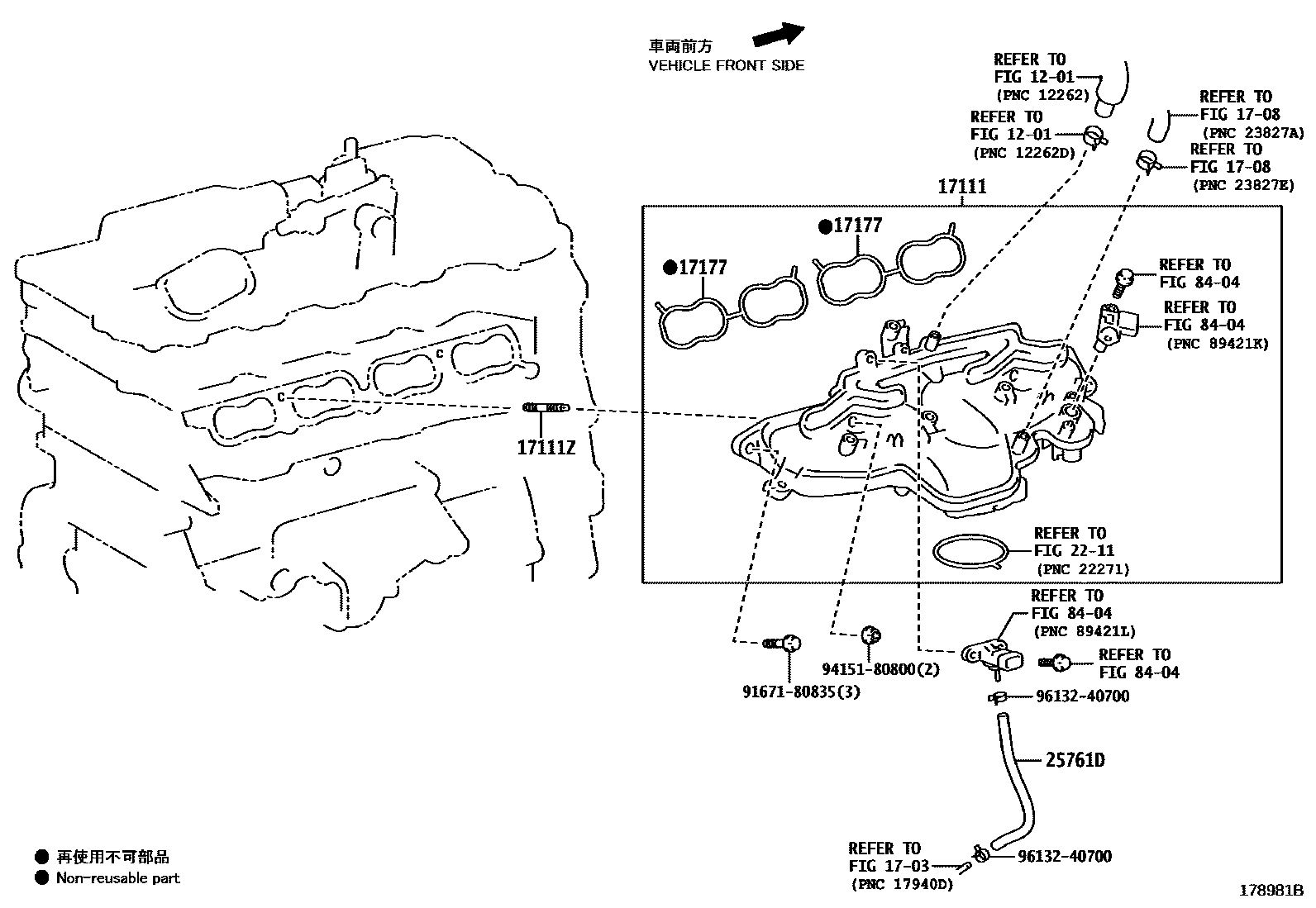

17111MANIFOLD, INTAKE

main17101-36082i8ARFTS..ASE30201508-201610

main17111-31171i2GRF..GSE3#201610-201710

main17111-31250i2GRFKS..GSE3#202009-202110

main17120-31041i4GRFSE..GSE30,35201304-201508

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2URGSE..USE30202111

main90126-08052×4i2GRF..GSE3#201710-202009

main90126-08062×2i8ARFTS..ASE30202009-202110

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36040×2i8ARFTS..ASE30202009-202110

main17177-31021×2i4GRFSE..GSE30,35201304-201508

main17177-31061×2i2GRF..GSE3#201610-201710

main17177-31070×2i2GRF..GSE3#201710-202009

main17177-38030×2i2URGSE..USE30202111

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25761DHOSE, VACCUM TRANSMITTING, NO.1

main257A1-36010i8ARFTS..ASE30202111

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9167180835

main91671-80835

9415180800

main94151-80800

9613240700

main96132-40700

12 parts on this diagram · 7 diagrams in section
