ENGINE OVERHAUL GASKET KIT

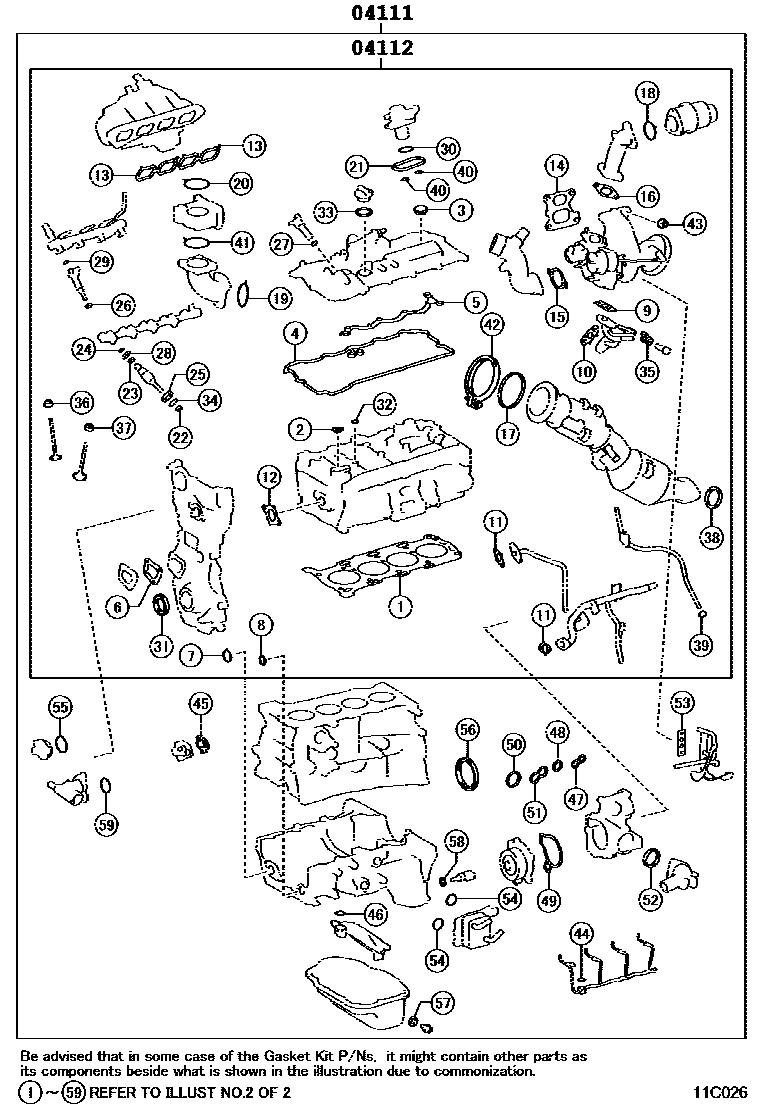

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31941i201304-201503

main04111-31942i201503-201505

main04111-31943i201505-201508

main04111-31A92i201304-201503

main04111-31A93i201503-201508

main04111-31C31i201710-202009

main04111-31C32i202111-202112

main04111-31C33i202112

main04111-31C41i201710-202009

main04111-31C42i202111-202112

main04111-31C43i202112

main04111-36290i201508-201610

main04111-36291i201710-202004

main04111-36400i202004-202009

main04111-38310i202111

main04111-31B40i201304-201508

KOREA SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31632i201304-201508

main04112-31681i201610-201710

main04112-31881i202009-202110

main04112-31882i202112

main04112-36240i201610-201710

main04112-36241i201710-202004

main04112-36350i202009-202110

main04112-38290i202111

main04112-31800i201304-201508

KOREA SPEC

2 parts on this diagram · 12 diagrams in section
