SHORT BLOCK ASSEMBLY

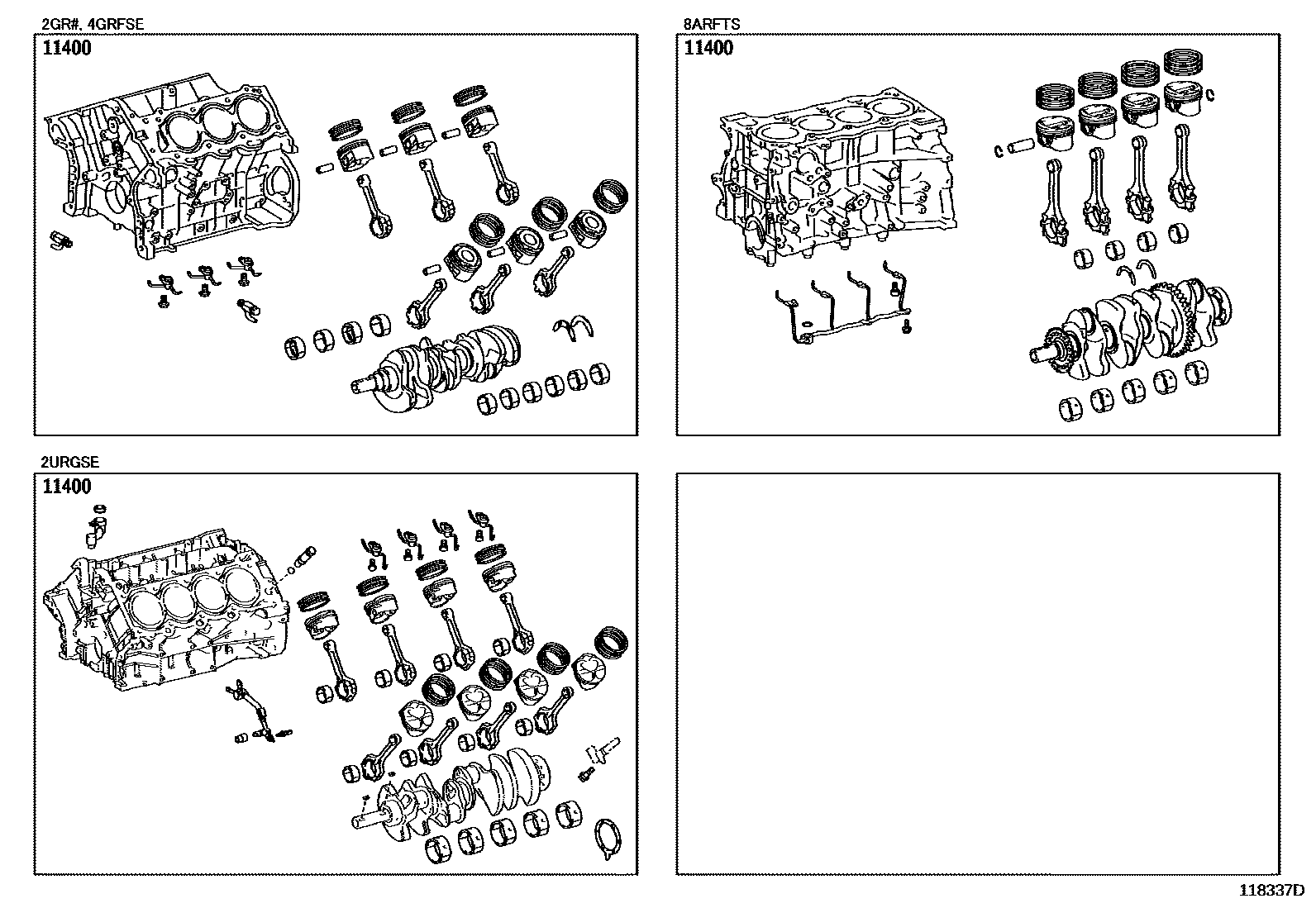

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31171i201304-201403

main11400-31330i201304-201403

main11400-31410i201710-202009

main11400-36180i201508-201610

main11400-38170i202111

main11400-39025i201403-201508

main11400-39075i201610-201710

main11400-31050i201304-201403

KOREA SPEC

main11400-39035i201403-201406

KOREA SPEC

1 parts on this diagram · 1 diagram in section
