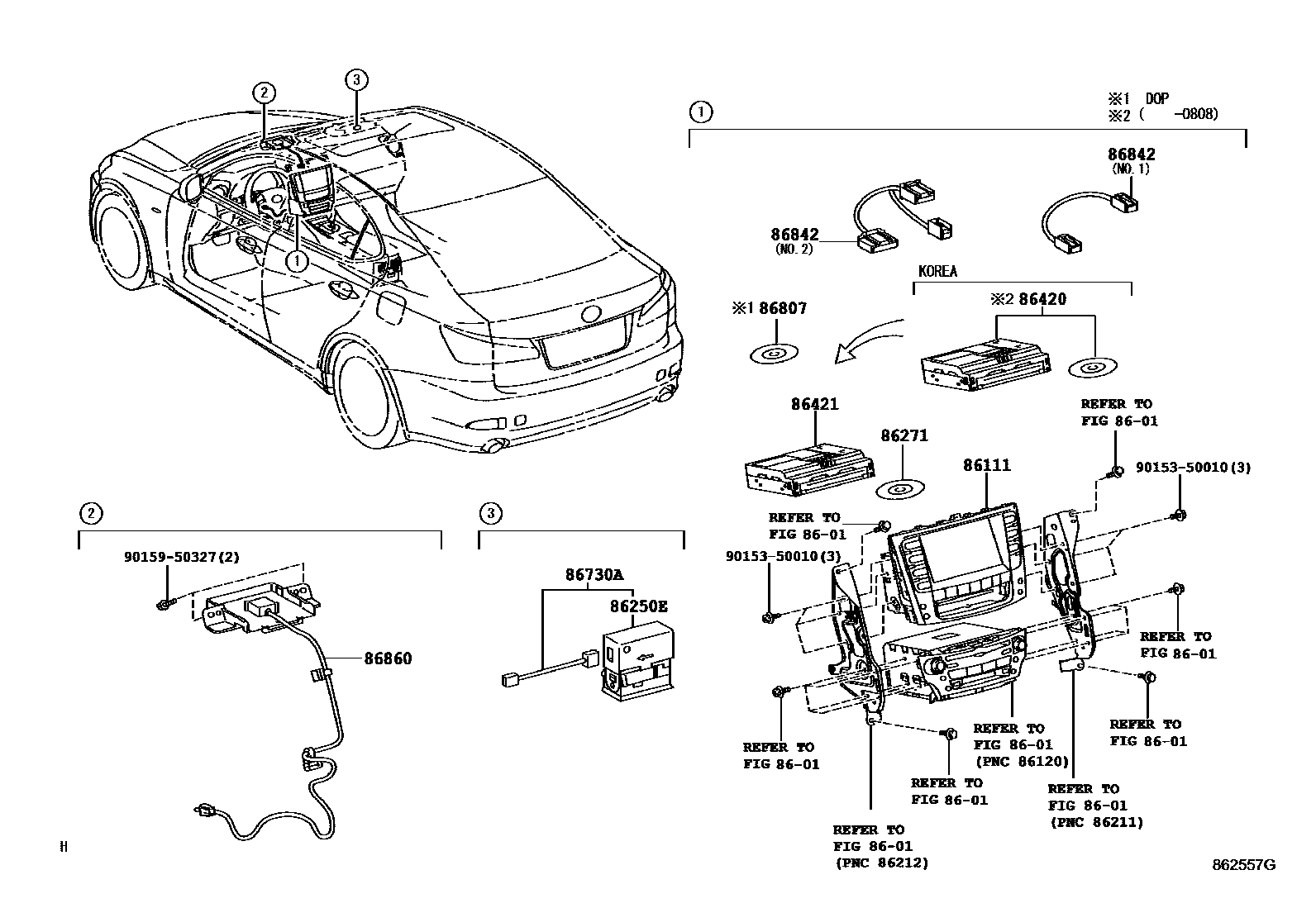

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86111MULTI-DISPLAY

main86111-53050i200508-200708

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86111-53060i200508-200708

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86111-53140i200708-200808

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86111-53150i200708-200808

DENSO,AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; DENSO,AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86111-53280i200808-200908

DENSO,EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)

main86111-53290i200808-200908

DENSO,EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)

main86111-53310i200808-200908

DENSO,KOREA SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030i200508-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86271DISC, DISC PLAYER

main86271-53020i200508-200606

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86271-53021i200607-200708

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86271-53022i200708-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86271-53023i200808-200908

EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)

86420NAVIGATION ASSY, MULTI-MEDIA MODULE

main86420-50010i200708-200808

KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86421BOARD, NAVIGATION MODULE

main86421-33040i200708-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86421-53020i200607-200708

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86730AMICROPHONE ASSY, TELEPHONE

main86730-53040i200908-201008

CAR TELEPHONE-WITHOUT; KOREA SPEC&CAR TELEPHONE-WITHOUT; MEXICO SPEC&CAR TELEPHONE-WITHOUT; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&CAR TELEPHONE-WITHOUT

main86730-53020i200508-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

86807DISC KIT, CD-ROM

main86807-0W041i200708-200808

KOREA SPEC&MAP DISC(DOP)-WITH

86842WIRE, NAVIGATION, NO.1

main86842-53030i200508-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION,NO.1; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.1

main86842-53050i200708-200808

KOREA SPEC&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER,NO.2

main86842-53070i201008-201108

CANADA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION); LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)

main86842-53080i201008-201108

KOREA SPEC&F PACKAGE&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATIONSYSTEM-WITH(DVD NAVIGATION),NO.1; KOREA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.1; KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.1; KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.1

main86842-53090i201008-201108

KOREA SPEC&F PACKAGE&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATIONSYSTEM-WITH(DVD NAVIGATION),NO.2; KOREA SPEC&F PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.2; KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.2; KOREA SPEC&LUXURY PACKAGE&AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),NO.2

main86842-53200i201208-201304

AUDIO-AM/FM DVD 13SPEAKER; AUDIO-AM/FM DVD 5.1CH 14SPEAKER; KOREA SPEC&AUDIO-AM/FM DVD 13SPEAKER; KOREA SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER

86860ANTENNA ASSY, NAVIGATION

main86860-53050i200508-200808

AUDIO-AM/FM, CD-CHANGER 13SPEAKER NAVIGATION; AUDIO-AM/FM, DVD-CHANGER 5.1CH 14SPEAKER

main86860-53100i201208

AUDIO-AM/FM DVD 13SPEAKER; AUDIO-AM/FM DVD 5.1CH 14SPEAKER

9015350010

main90153-50010

9015950327

main90159-50327

12 parts on this diagram · 4 diagrams in section
