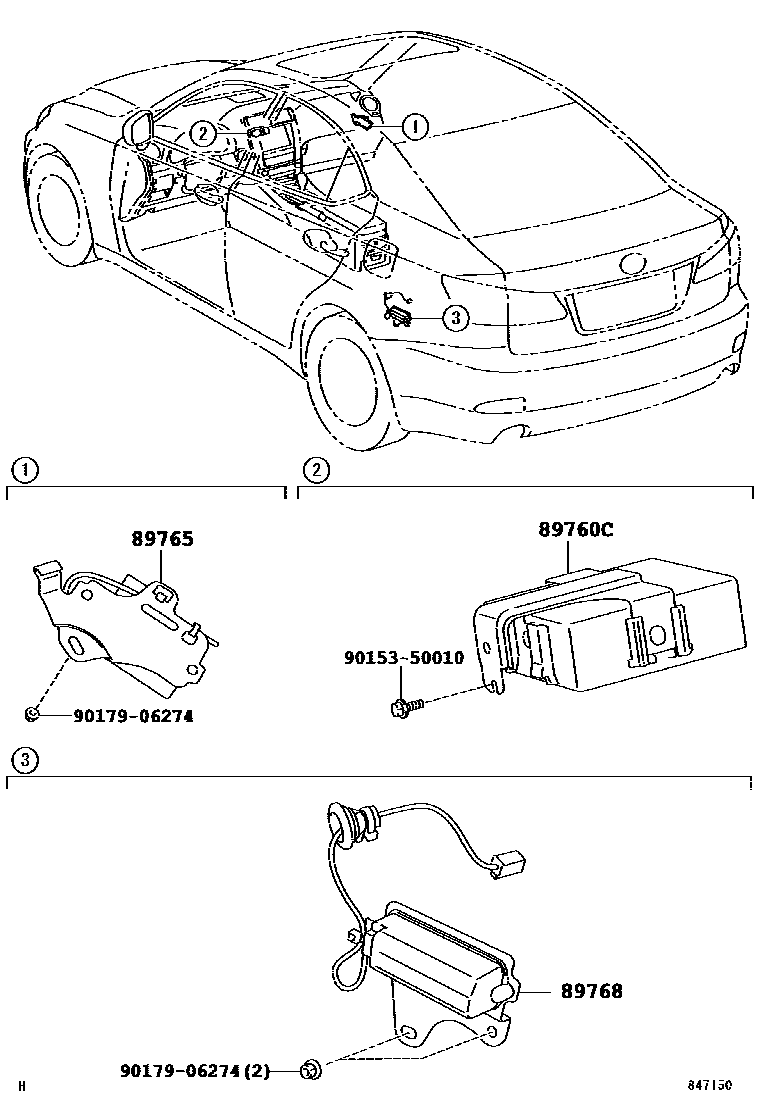

TIRE PRESSURE WARNING SYSTEM

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-53010iGSE2#; GSE20..ATM200508-200707

KOREA SPEC

main89760-53020iGSE2#; GSE20..ATM200708-200808

KOREA SPEC

89765ANTENNA, TIRE PRESSURE, FRONT RH

main89765-30010iGSE2#; GSE20..ATM200508-200808

KOREA SPEC

89768ANTENNA, TIRE PRESSURE, REAR LH

main89768-30010iGSE2#; GSE20..ATM200508-200808

KOREA SPEC

9015350010

main90153-50010

9017906274

main90179-06274

5 parts on this diagram · 1 diagram in section
