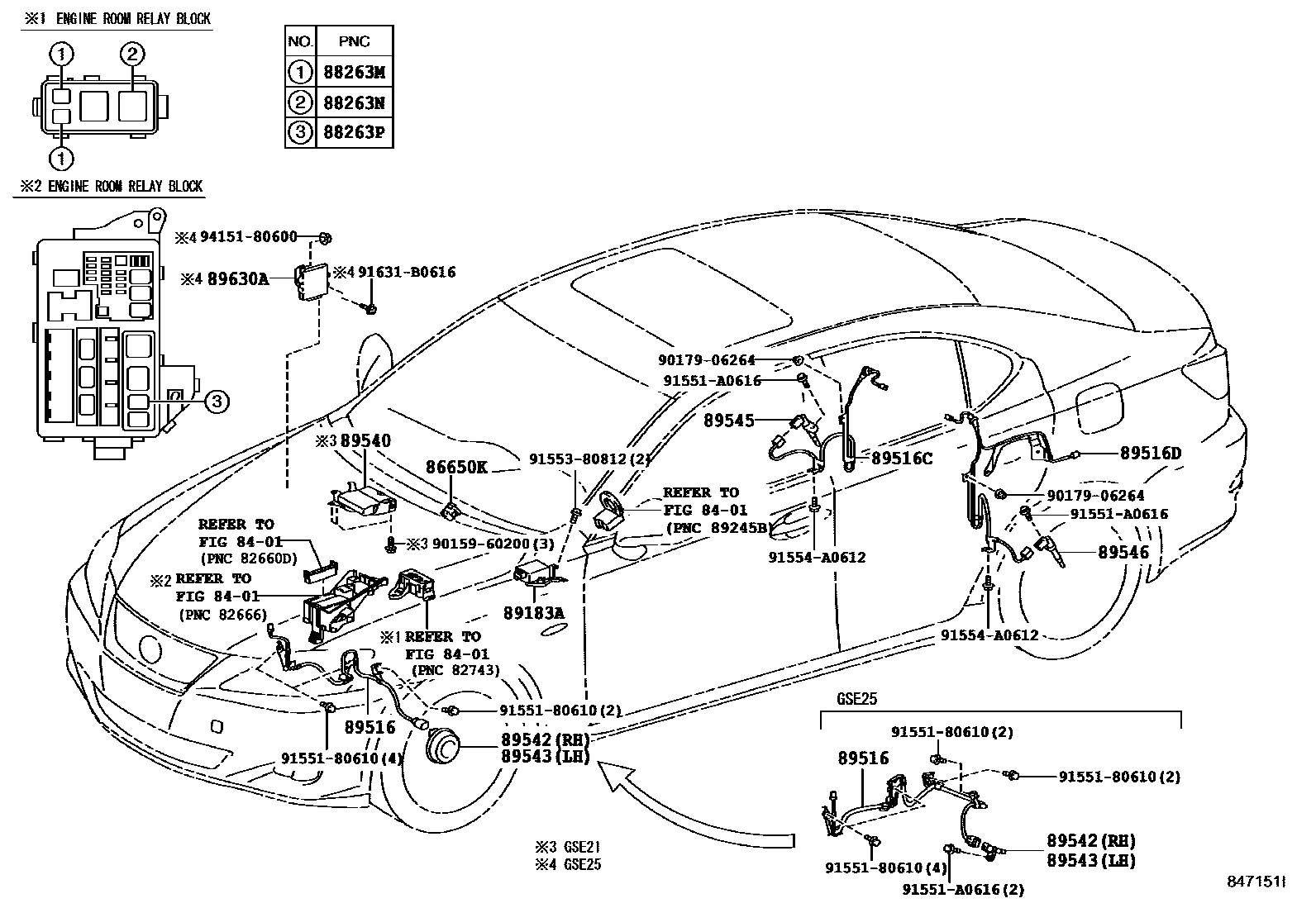

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010i200508-200708

main86652-50010i200808-201008

88263MRELAY, ABS SOLENOID

main88263-32070×2i200508-200808

88263NRELAY, ABS MOTOR

main88263-21010i200508-200808

88263PRELAY, STOP LAMP CONTROL

main90987-04004i201008

89183ASENSOR, YAWRATE

main89180-22020i200508-200808

main89180-53010i200808-200907

main89180-53030i200908-201008

89516WIRE, SKID CONTROL SENSOR

main89516-30020i200508-200808

main89516-30030i200508-200808

main89516-30040i200808-201008

main89516-30050i200508-200808

main89516-30150i201204-201302

main89516-30190i201204-201302

main89516-53060i201303-201304

main89516-53070i201303-201304

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020i200508-200808

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22010i201008-201304

main89516-22040supersedes 89516-22010i201008-201304

HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)

89540COMPUTER ASSY, SKID CONTROL

main89540-53250supersedes 89540-53221i200508-200509

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

main89540-53251supersedes 89540-53221i200510-200606

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

main89540-53290supersedes 89540-53260i200607-200808

TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI

89542SENSOR, SPEED, FRONT RH

main89542-30260i200508-200808

main89542-30270i200808-201008

89543SENSOR, SPEED, FRONT LH

main89543-30260i200808-201008

main89543-30270i200508-200808

89545SENSOR, SPEED, REAR RH

main89545-30070i200508-200808

89546SENSOR, SPEED, REAR LH

main89546-30070i200508-200808

89630ACOMPUTER ASSY, 4WD

main89630-53010i200508-200808

main89630-53020i200808-201007

main89630-53030i201008

9015960200

main90159-60200

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

91631B0616

main91631-B0616

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
