CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iGSE2#200508-200808

main84632-58011iGSE2#..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iGSE2#200808-201008

main84633-48010iGSE2#..ATM200908-201008

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-53010iGSE2#..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88210-53060iGSE2#..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-53020iGSE2#..ATM200508-200808

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

main88240-53060iGSE2#..ATM200808-200908

PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)

88280CSWITCH ASSY, CLUTCH

main88280-42010iGSE20..MTM200509-200808

9011906782

main90119-06782

9015950199

main90159-50199

9415180600

main94151-80600

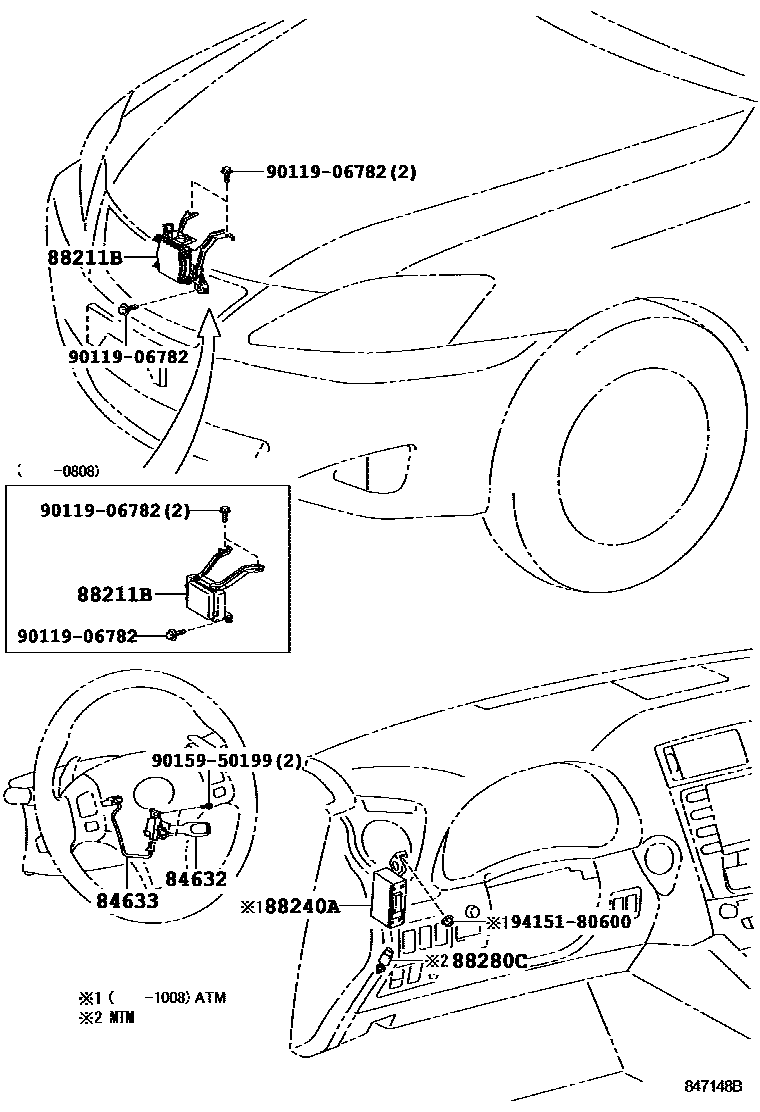

8 parts on this diagram · 1 diagram in section
