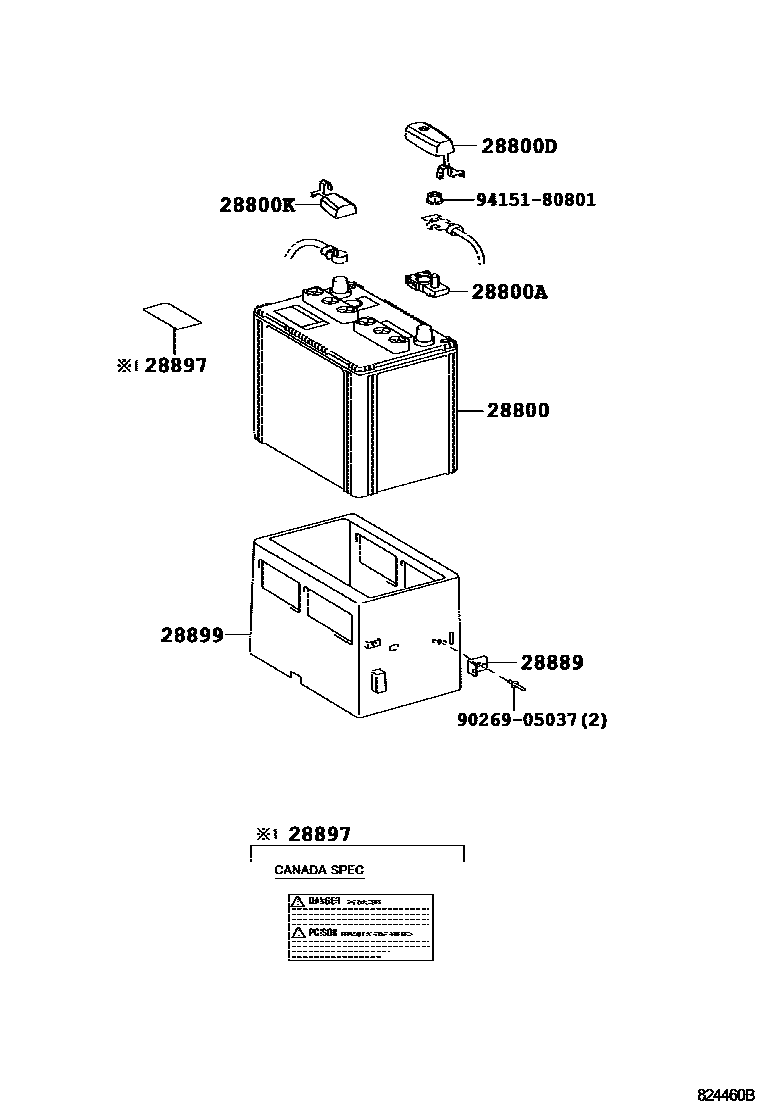

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38100i2GRFSE,4GRFSE..GSE2#201008-201304

80D26R

main28800-54231i2GRFSE,4GRFSE..GSE2#200808-200906

80D26R

main28800-54232i2GRFSE,4GRFSE..GSE2#200508-200808

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05062i2GRFSE,4GRFSE..GSE2#200508-200808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i2GRFSE,4GRFSE..GSE2#200508-200808

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2GRFSE,4GRFSE..GSE2#201008

main82821-50450i2GRFSE,4GRFSE..GSE2#200808-201008

28889BRACKET, BATTERY WIRE CLAMP

main28889-31010i2GRFSE,4GRFSE..GSE2#200508-200808

28897PLATE, BATTERY CAUTION

main28897-31020i2GRFSE,4GRFSE..GSE2#200508-200511

CANADA SPEC

main28897-31021i2GRFSE,4GRFSE..GSE2#200512-200808

CANADA SPEC

28899INSULATOR, BATTERY

main28899-31030i2GRFSE,4GRFSE..GSE2#200508-200808

9026905037

main90269-05037

9415180801

main94151-80801

9 parts on this diagram · 1 diagram in section
