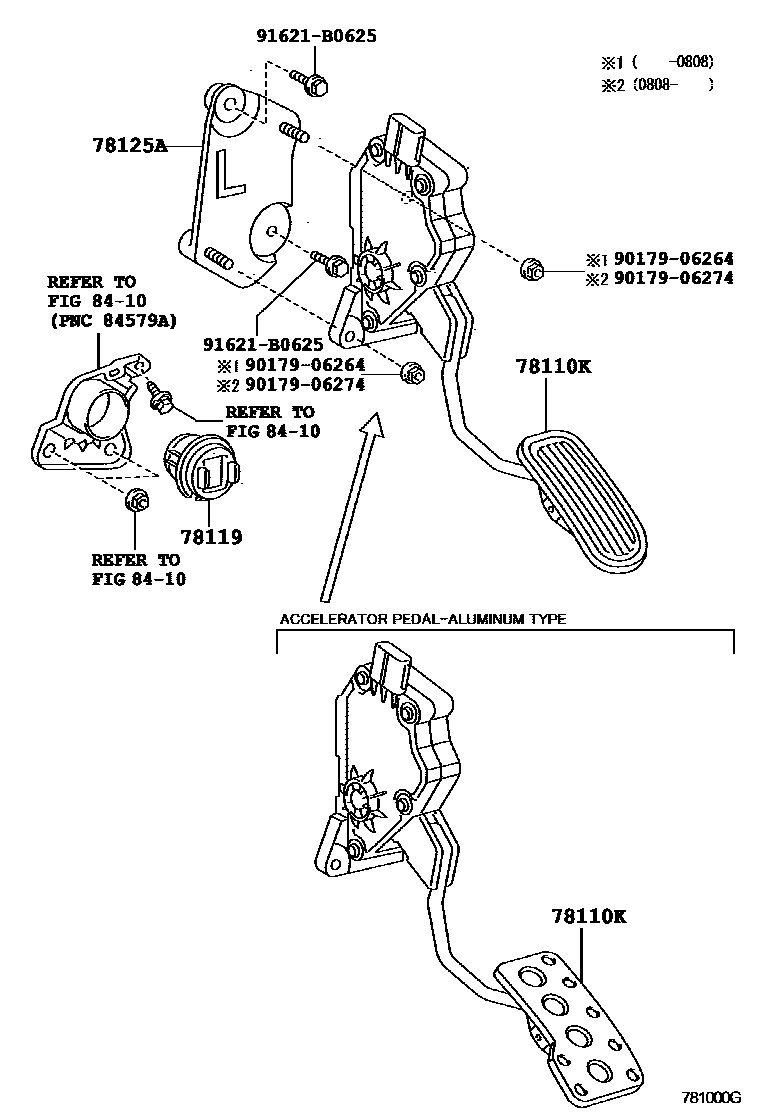

ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-53050iGSE25200808-201002

main78110-53051iGSE25201003-201008

main78110-53031iGSE20..ATM201003-201008

KOREA SPEC

main78110-53040iGSE20,21200607-200707

ACCELERATOR PEDAL-ALUMINUM TYPE

main78110-53041iGSE20..ATM201003-201008

KOREA SPEC&ACCELERATOR PEDAL-ALUMINUM TYPE

main78110-53110supersedes 78110-53120iGSE20,21201008

ACCELERATOR PEDAL-ALUMINUM TYPE

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iGSE20,21200508-200808

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-53010iGSE2#200508-200808

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9017906264

main90179-06264

9017906274

main90179-06274

91621B0625

main91621-B0625

7 parts on this diagram · 1 diagram in section
