SEAT BELT & CHILD RESTRAINT SEAT

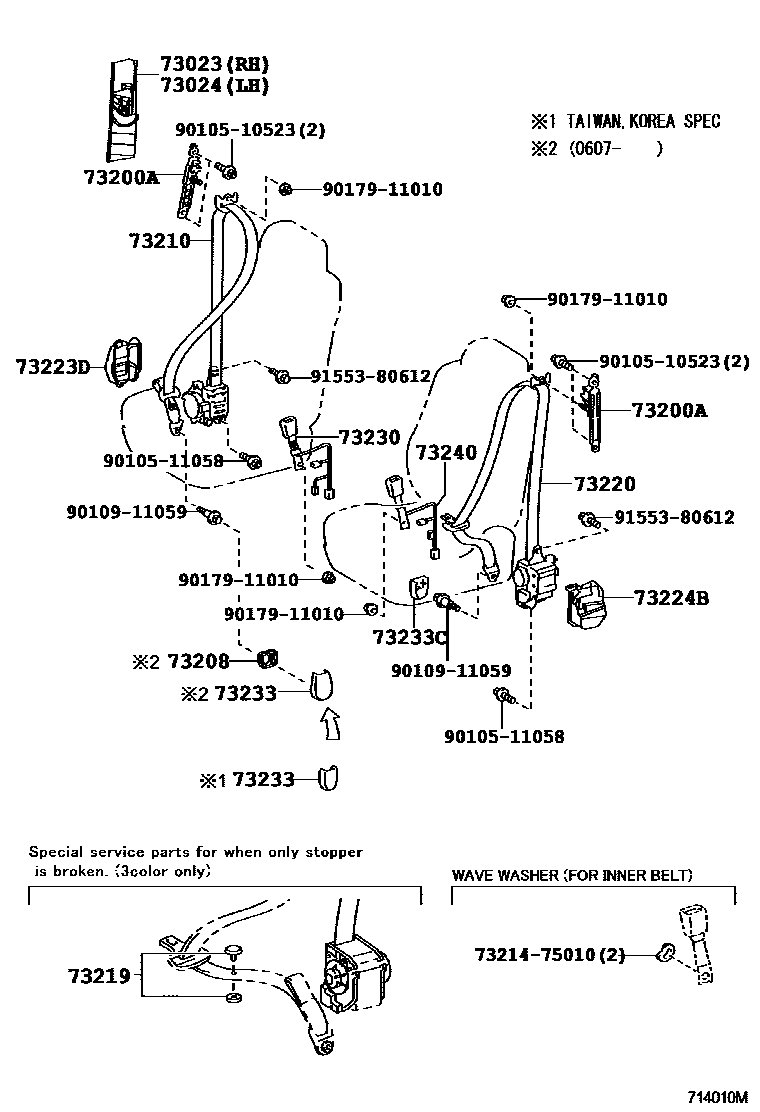

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53010-A0i200508-200808
IVORY,TRIM0#
main73023-53010-B0i200508-200808
LT.GRAY,TRIM1#,2#
main73023-53020-A3i201008-201304
ECRU,TRIM0#
main73023-53020-B0i201008-201304
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,21,23; LT.GRAY,TRIM1#,21,23,24
main73023-53020-C0i200908-201008
BLACK,TRIM22
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53010-A0i200508-200808
IVORY,TRIM0#
main73024-53010-B0i200508-200808
LT.GRAY,TRIM1#,2#
main73024-53020-A3i201008-201304
ECRU,TRIM0#
main73024-53020-B0i201008-201304
LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,21,23; LT.GRAY,TRIM1#,21,23,24
main73024-53020-C0i201008-201304
BLACK,TRIM22
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010×2i200808-201008
73208COVER SUB-ASSY, FR SEAT BELT ANCHOR
main73233-53010-A0i200607-200808
IVORY,TRIM0#
main73233-53010-A1i201008-201304
ECRU,TRIM0#
main73233-53010-C0i200808-201008
BLACK,TRIM1#,2#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53150-A1i200508-200607
IVORY,TRIM0#
main73210-53150-C2i200508-200607
BLACK,TRIM1#
main73210-53150-C3i200508-200607
BLACK,TRIM2#
main73210-53220-A1i200607-200808
IVORY,TRIM0#
main73210-53220-A2i200808-200907
ECRU,TRIM0#
main73210-53220-B0i200808-200907
LT.GRAY,TRIM1#,2#
main73210-53220-C3i200607-200808
BLACK,TRIM1#
main73210-53220-C4i200607-200808
BLACK,TRIM2#
main73210-53360-A1i201008-201304
ECRU,TRIM0#
main73210-53360-C2i201008-201304
BLACK,TRIM22
main73210-53360-C3i200908-201008
BLACK/LT.GRAY,TRIM1#,2#; BLACK/LT.GRAY,TRIM1#,21,23
main73210-53150-A2i200808-200907
KOREA SPEC,ECRU,TRIM0#
main73210-53150-B0i200808-200907
KOREA SPEC,LT.GRAY,TRIM1#,2#
main73210-53170-A1i200508-200607
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),IVORY,TRIM0#
main73210-53170-C2i200508-200607
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM1#
main73210-53170-C3i200508-200607
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM2#
main73210-53230-A1i200607-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),IVORY,TRIM0#
main73210-53230-A2i200808-200907
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),ECRU,TRIM0#
main73210-53230-B0i200808-200907
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),LT.GRAY,TRIM1#,2#
main73210-53230-C3i200607-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM1#
main73210-53230-C4i200607-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM2#
main73210-53380-A1i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),ECRU,TRIM0#
main73210-53380-C2supersedes 73210-53360-C2i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK,TRIM22
main73210-53380-C3i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK/LT.GRAY,TRIM1#,2#; PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK/LT.GRAY,TRIM1#,21,23
main73210-53400-A2i201008-201304
KOREA SPEC,ECRU,TRIM0#
main73210-53400-C2i200908-201008
KOREA SPEC,BLACK/LT.GRAY,TRIM1#,21,23
main73210-53400-C3i200908-201008
KOREA SPEC,BLACK,TRIM22
73219STOPPER, TONGUE PLATE
main73219-02010i200508-200808
BLACK
main73219-02020i200508-200808
GRAY
main73219-02030i200508-200808
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53130-A1i200508-200808
IVORY,TRIM0#
main73220-53130-A2i200808-200907
ECRU,TRIM0#
main73220-53130-B0i200808-200907
LT.GRAY,TRIM1#,2#
main73220-53130-C2i200508-200808
BLACK,TRIM1#
main73220-53130-C3i200508-200808
BLACK,TRIM2#
main73220-53270-A5i200908-201008
ECRU,TRIM0#
main73220-53270-C1i201008-201208
BLACK,TRIM22
main73220-53270-C3i200908-201008
BLACK/LT.GRAY,TRIM1#,2#; BLACK/LT.GRAY,TRIM1#,21,23
main73220-53360-A0i201208-201304
ECRU,TRIM0#
main73220-53360-C0i201208-201304
BLACK/LT.GRAY,TRIM1#,2#; BLACK/LT.GRAY,TRIM1#,21,23
main73220-53360-C1i201208-201304
BLACK,TRIM22
main73220-53140-A1i200508-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),IVORY,TRIM0#
main73220-53140-A2i200808-200907
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),ECRU,TRIM0#
main73220-53140-B0i200808-200907
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),LT.GRAY,TRIM1#,2#
main73220-53140-C2i200508-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM1#
main73220-53140-C3i200508-200808
PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE),BLACK,TRIM2#
main73220-53271-A5i201303-201304
KOREA SPEC,ECRU,TRIM0#
main73220-53271-C1i201303-201304
KOREA SPEC,BLACK,TRIM22
main73220-53271-C3i201303-201304
KOREA SPEC,BLACK/LT.GRAY,TRIM1#,21,23
main73220-53280-A2i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),ECRU,TRIM0#
main73220-53280-C1supersedes 73220-53270-C1i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK,TRIM22
main73220-53280-C3i200908-201008
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK/LT.GRAY,TRIM1#,2#; PRE-COLLISION SYSTEM-WITH(*PSB & *PBA),BLACK/LT.GRAY,TRIM1#,21,23
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-53010i201008-201304
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-53010i200808-201008
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53210-A1i200908-201008
ECRU,TRIM0#; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ECRU,TRIM0#
main73230-53210-C0supersedes 73230-53230-C0i201008-201304
BLACK,TRIM1#,2#
main73230-53140-A0i200508-200607
FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#
main73230-53140-A1i200908-201008
KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ECRU,TRIM0#; KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ECRU,TRIM0#
main73230-53140-B0i200607-200808
KOREA SPEC&FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#
main73230-53140-C0i200607-200708
TAIWAN SPEC&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main73230-53160-A0supersedes 73230-53200-A0i200508-200607
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),IVORY,TRIM0#
main73230-53160-B0i200607-200808
KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),FROSTY GRAY,TRIM1#
main73230-53160-C0i200607-200808
KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM2#
main73230-53180-A0i200607-200708
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; TAIWAN SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#
main73230-53180-B0supersedes 73230-53200-B0i200508-200607
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#
main73230-53180-C0i200607-200708
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM2#; TAIWAN SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM2#
main73230-53181-A0i200708-200808
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#
main73230-53181-A1i200808-200908
KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ECRU,TRIM0#; KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ECRU,TRIM0#
main73230-53181-B0i200708-200808
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#
main73230-53181-C0i200808-200908
KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#
main73230-53200-A0i200508-200607
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; IVORY,TRIM0#
main73230-53200-B0i200508-200607
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; FROSTY GRAY,TRIM1#
main73230-53200-C0i200607-200708
TAIWAN SPEC,BLACK,TRIM2#
main73230-53210-A0supersedes 73230-53230-A0i200607-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#
main73230-53210-B0supersedes 73230-53230-B0i200607-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#
main73230-53220-A0supersedes 73230-53230-A0i200607-200808
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),IVORY,TRIM0#
main73230-53220-B0supersedes 73230-53230-B0i200607-200808
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),FROSTY GRAY,TRIM1#
main73230-53220-C0supersedes 73230-53230-C0i200607-200808
SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM2#
main73230-53230-A0i200607-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; IVORY,TRIM0#
main73230-53230-B0i200607-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; FROSTY GRAY,TRIM1#
main73230-53230-C0i200607-200808
BLACK,TRIM2#; FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-A0i200508-200607
IVORY,TRIM0#
main73233-52010-C0i200508-200607
BLACK,TRIM1#,2#
main73233-53020-A0i200607-200808
IVORY,TRIM0#
main73233-53020-A1i200808-201008
ECRU,TRIM0#
main73233-53020-C0i200808-201008
BLACK,TRIM1#,2#
main73233-52010-A3i200808-201008
KOREA SPEC,ECRU,TRIM0#
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-52010-A0i200508-200808
IVORY,TRIM0#
main73233-52010-A3i200808-201008
ECRU,TRIM0#
main73233-52010-C0i201008-201304
BLACK,TRIM1#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-53130-A0i200508-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#; IVORY,TRIM0#
main73230-53130-A1i200808-200908
FRONT SEAT-SMOOTH LEATHER,ECRU,TRIM0#
main73230-53130-B0supersedes 73230-53190-B0i200508-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#; FROSTY GRAY,TRIM1#
main73230-53130-C0i200808-201008
BLACK,TRIM1#,2#; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM1#,2#
main73230-53150-A0i200607-200708
TAIWAN SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),IVORY,TRIM0#
main73230-53150-B0i200607-200808
KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),FROSTY GRAY,TRIM1#
main73230-53150-C0i200607-200708
TAIWAN SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM2#
main73230-53170-A0i200607-200707
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; TAIWAN SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#
main73230-53170-B0i200607-200707
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; TAIWAN SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#
main73230-53170-C0i200607-200707
KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM2#; TAIWAN SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM2#
main73230-53171-A0i200708-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#; KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,IVORY,TRIM0#
main73230-53171-A1i200808-200908
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ECRU,TRIM0#; KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ECRU,TRIM0#; KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ECRU,TRIM0#
main73230-53171-B0i200708-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#; KOREA SPEC&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,FROSTY GRAY,TRIM1#
main73230-53171-C0i200808-200908
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; KOREA SPEC&SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#
main73230-53190-C0i200808-200908
BLACK,TRIM1#,2#; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM1#,2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9010911059
main90109-11059
9017911010
main90179-11010
9155380612
main91553-80612

19 parts on this diagram · 2 diagrams in section
