EPC Data

CONSOLE BOX & BRACKET

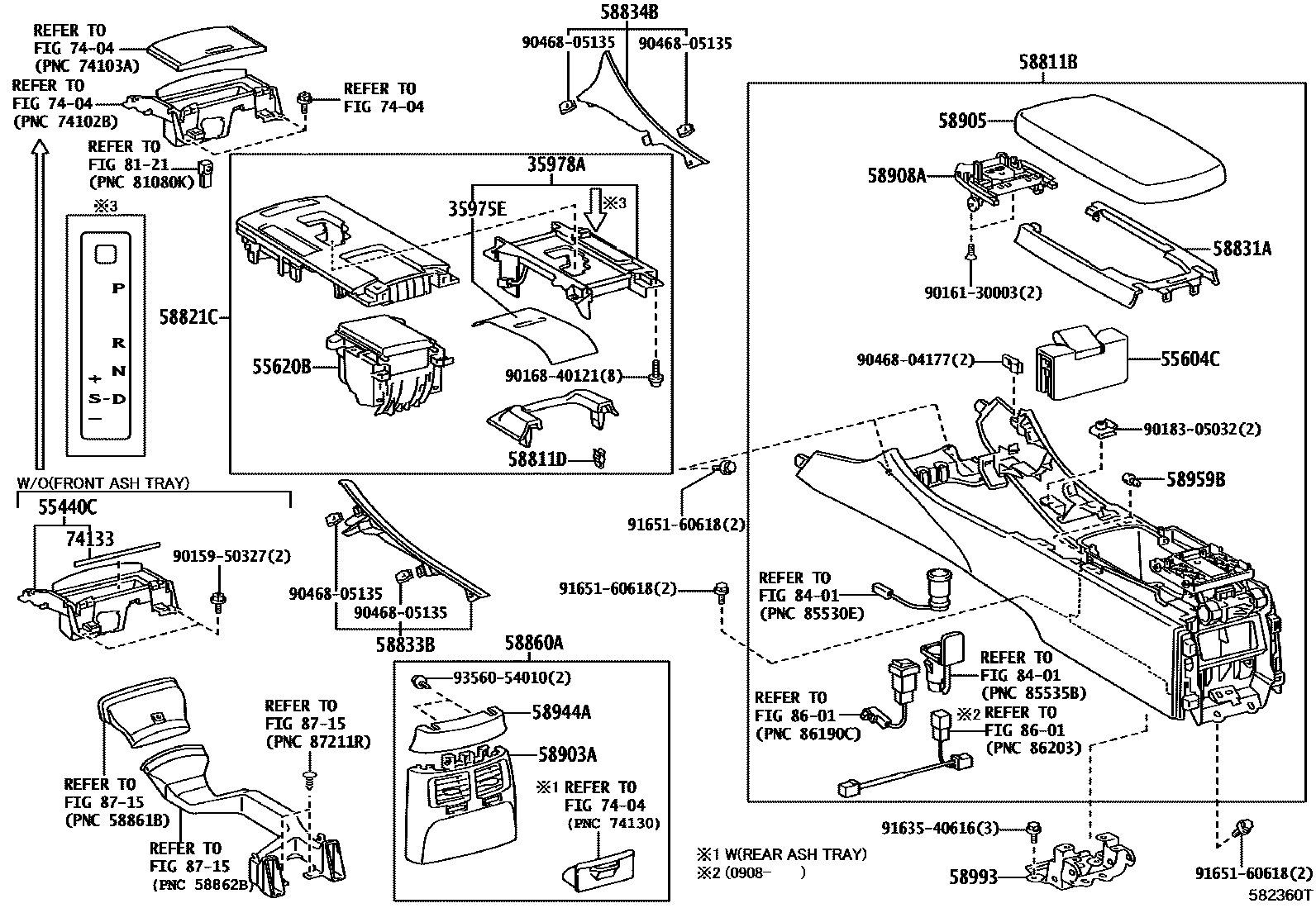

Parts diagram
35975ECOVER, SLIDE (FOR POSITION INDICATOR)
main35975-53020i200808-201008
35978AINDICATOR, SHIFT POSITION
main35978-53030i200808-201008
main35978-53031i201108
main35978-53020i200508-200708
TAIWAN SPEC; TAIWAN SPEC&POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL; TAIWAN SPEC&SEAT HEATER-HEAT & COOL; TAIWAN SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT)
55440CBOX ASSY, INSTRUMENT PANEL
main55441-53070i201008-201208
main55441-53080i201208
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
main55604-53070i200508-200808
55620BHOLDER, INSTRUMENT PANEL CUP
main55620-53010i200508-200808
KOREA SPEC&CANADA SPEC; KOREA SPEC&CANADA SPEC&LUXURY PACKAGE&SEAT HEATER-HEAT & COOL; KOREA SPEC&CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); TAIWAN SPEC&CANADA SPEC; TAIWAN SPEC&CANADA SPEC&LUXURY PACKAGE&SEAT HEATER-HEAT & COOL; TAIWAN SPEC&CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT)
main55620-53011i200808-201008
main55620-53012i201008-201304
main55620-53050i200509-200808
main55620-53051i200808-201008
main55620-53052i201008-201208
main55620-53020-B0i200908-201008
KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),GRAY,TRIM01,11,21; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),GRAY,TRIM01,11,21
main55620-53020-D1i200508-200808
KOREA SPEC&POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,RED,TRIM0#,1#,2#; POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,RED,TRIM0#,1#,2#
main55620-53020-E0i201008-201304
KOREA SPEC&LUXURY PACKAGE&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BROWN,TRIM03,13,23; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BROWN,TRIM03,13,23
main55620-53020-E2i200908-201008
KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),LT.BROWN,TRIM00,10,20; SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),LT.BROWN,TRIM00,10,20
main55620-53060-B0i200908-201008
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),GRAY,TRIM01,11,21
main55620-53060-D0i200509-200808
POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,RED,TRIM0#,1#,2#
main55620-53060-E0i201008-201208
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),LT.BROWN,TRIM00
main55620-53060-E1i201008-201208
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),DK.BROWN,TRIM03,13,23
main55620-53110i201008-201304
CANADA SPEC&F PACKAGE&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER& PASSENGER SEAT); KOREA SPEC&F PACKAGE&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT); KOREA SPEC&FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT)
58811BBOX, CONSOLE
main58810-53270-E0i200908-201008
ORCHID BROWN/MD.GRAY,TRIM0#
main58810-53290-E0i200908-201008
ORCHID BROWN/MD.GRAY,TRIM0#
main58810-53400-C0i201008-201208
BLACK/LT.GRAY/BACK,TRIM1#,2#
main58810-53400-E0i201008-201208
ECRU/MD.BROWN/ORC.BROWN,TRIM0#
main58810-53410-C0i201008-201304
BLACK/LT.GRAY/BLACK,TRIM1#,2#
main58810-53410-E0i201008-201304
ECRU/MD.BROWN/ORC.BROWN,TRIM0#
main58810-53050-C6supersedes 58810-53031-C6i200509-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#
main58810-53050-C7supersedes 58810-53031-23i200509-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main58810-53050-C8supersedes 58810-53031-C7i200509-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#
main58810-53051-C6supersedes 58810-53031-C6i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#
main58810-53051-C7supersedes 58810-53031-23i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main58810-53051-C8supersedes 58810-53031-C7i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#
main58810-53080-C6i200508-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#
main58810-53080-C7supersedes 58810-53061-23i200508-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main58810-53080-C8supersedes 58810-53061-C7i200508-200703
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#
main58810-53081-C6supersedes 58810-53061-C6i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM0#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM0#
main58810-53081-C7supersedes 58810-53061-23i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main58810-53081-C8supersedes 58810-53061-C7i200704-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#
main58810-53220-21supersedes 58810-53210-C6i200808-200907
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#,2#
main58810-53220-E3supersedes 58810-53031-C6i200808-200907
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN,TRIM0#; FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM0#
main58810-53250-21supersedes 58810-53240-C8i200808-200907
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#,2#
main58810-53250-E3supersedes 58810-53061-C6i200808-200907
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN,TRIM0#; FRONT SEAT-SMOOTH LEATHER,ORCHID BROWN,TRIM0#
main58810-53340-C8supersedes 58810-53270-C8i200908-201008
FRONT SEAT-FABRIC, MANUAL SEAT,BLACK/LT.GRAY,TRIM1#,2#
main58810-53350-C8i200908-201008
FRONT SEAT-FABRIC, MANUAL SEAT,BLACK/LT.GRAY,TRIM1#,2#; VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT),BLACK/LT.GRAY,TRIM1#,2#
main58810-53410-C8i201210-201301
N.AMERICA SADDLE-TAN PACKAGE,BLACK/SADDLE TAN,TRIM21
58811DCLIP(FOR CONSOLE BOX)
main90467-10203×2i200509-200808
58821CPANEL, CONSOLE, UPPER
main58804-53152-E0supersedes 58804-53172-E0i201008-201108
CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#
main58804-53153-C0supersedes 58804-53173-C0i201108-201304
BLACK,TRIM1#,2#; CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53153-E0supersedes 58804-53173-E0i201108-201304
CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#
main58804-53171-C0supersedes 58804-53151-C0i200808-201008
BLACK,TRIM1#,2#
main58804-53171-E0supersedes 58804-53151-E0i200808-201008
ORCHID BROWN,TRIM0#
main58821-53030i200808-201008
main58804-53120-C0i200508-200808
KOREA SPEC,BLACK,TRIM0#,1#,2#
main58804-53130-C0i200508-200808
KOREA SPEC&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#; KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM0#,1#,2#
main58804-53131-C0i200908-201008
KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#; KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53131-E0i200908-201008
KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#; KOREA SPEC&VERSION F&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#
main58804-53132-C0i201008-201304
KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53132-E0i201008-201304
KOREA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#
main58804-53140-C1i200508-200808
KOREA SPEC&POWER WINDOW-WITH(WOOD BASE)&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#
main58804-53140-C2i201008-201304
KOREA SPEC&LUXURY PACKAGE&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK/GRAY,TRIM11,21
main58804-53140-C3i200808-200908
KOREA SPEC&POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK/LT.BROWN,TRIM10,20
main58804-53140-C4i201008-201304
KOREA SPEC&LUXURY PACKAGE&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM13,23
main58804-53140-E1i200808-200908
KOREA SPEC&POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN/GRAY,TRIM01
main58804-53140-E2i200808-200908
KOREA SPEC&POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN/LT.BROWN,TRIM00
main58804-53140-E3i200908-201008
KOREA SPEC&LUXURY PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ORCHID BROWN/DK.BROWN,TRIM03
main58804-53150-C0i200508-200808
SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#; SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM0#,1#,2#
main58804-53151-C0i200808-200908
CANADA SPEC&FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#,2#; FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#,2#
main58804-53151-E0i200908-201008
CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),ORCHID BROWN,TRIM0#; ORCHID BROWN,TRIM0#; SPORT PACKAGE&FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ORCHID BROWN,TRIM0#
main58804-53152-C0supersedes 58804-53172-C0i201008-201108
BLACK,TRIM1#,2#; CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53160-C1i200508-200607
FRONT SEAT-SEMIANILINE VENTILATED LEATHER&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#
main58804-53160-C2i201008-201108
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK/GRAY,TRIM11,21
main58804-53160-C3i200808-200908
POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK/LT.BROWN,TRIM10,20
main58804-53160-C4i201008-201108
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM13,23
main58804-53160-E0i200808-200908
POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN/GRAY,TRIM01
main58804-53160-E1i200808-200908
POWER WINDOW-WITH(WOOD BASE)&FRONT SEAT-SEMIANILINE VENTILATED LEATHER,ORCHID BROWN/LT.BROWN,TRIM00
main58804-53160-E2i200908-201008
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ORCHID BROWN/DK.BROWN,TRIM03
main58804-53161-C2i201108-201304
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK/GRAY,TRIM11,21
main58804-53161-C4i201108-201304
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK/DK.BROWN,TRIM13,23
main58804-53161-E1i201108-201304
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ORCHID BRWON/LT.BROWN,TRIM00
main58804-53161-E2i201108-201304
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),ORCHID BROWN/DK.BROWN,TRIM03
main58804-53170-C0i200508-200808
BLACK,TRIM0#,1#,2#; KOREA SPEC&CANADA SPEC&LUXURY PACKAGE&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#; KOREA SPEC&CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM0#,1#,2#; KOREA SPEC&CANADA SPEC,BLACK,TRIM0#,1#,2#; TAIWAN SPEC&CANADA SPEC&LUXURY PACKAGE&SEAT HEATER-HEAT & COOL,BLACK,TRIM0#,1#,2#; TAIWAN SPEC&CANADA SPEC&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM0#,1#,2#; TAIWAN SPEC&CANADA SPEC,BLACK,TRIM0#,1#,2#
main58804-53172-C0supersedes 58804-53152-C0i201008-201108
BLACK,TRIM1#,2#; CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2#
main58804-53173-C0i201108-201304
BLACK,TRIM1#,2#; CANADA SPEC&FRONT SEAT-FABRIC, MANUAL SEAT&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main58804-53290-C0i201008-201304
KOREA SPEC&F PACKAGE&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#; KOREA SPEC&FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53310-C0supersedes 58804-53172-C0i201008-201108
CANADA SPEC&F PACKAGE&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM1#,2#; FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER& PASSENGER SEAT),BLACK,TRIM1#,2#
main58804-53311-C0i201108-201304
CANADA SPEC&F PACKAGE&FRONT SEAT-F SPORTS PACKAGE (LEATHER, POWER SEAT)&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),BLACK,TRIM2#; FB PACKAGE&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT)&SEAT HEATER-WITH(DRIVER& PASSENGER SEAT),BLACK,TRIM2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-53010-C0i200808-201008
BLACK,TRIM1#,2#
main58831-53010-E0i200908-201008
ORCHID BROWN,TRIM0#
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
main58833-53080i200509-200808
main58833-53090i200508-200808
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
main58834-53070i200509-200808
main58834-53080i200808-201008
58860AREGISTER ASSY, CONSOLE BOX
main58860-53010-C0supersedes 58860-53020-C0i200508-200808
BLACK,TRIM0#,1#,2#
main58860-53010-E0supersedes 58860-53020-E0i200808-201008
ORCHID BROWN,TRIM0#
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-53010-C0supersedes 58903-53020-C0i200508-200808
BLACK,TRIM0#,1#,2#
main58903-53010-E0supersedes 58903-53020-E0i200808-201008
ORCHID BROWN,TRIM0#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-53090-A7i200908-201008
ECRU,TRIM0#
main58905-53190-A0i201008-201304
ECRU/MD.BROWN,TRIM0#
main58905-53190-C0i201008-201304
BLACK/LT.GRAY,TRIM1#,2#
main58905-53090-A2supersedes 58905-53070-A2i200508-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,IVORY,TRIM0#; FRONT SEAT-SMOOTH LEATHER,IVORY,TRIM0#
main58905-53090-B2i200508-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,FROSTY GRAY,TRIM1#; FRONT SEAT-SMOOTH LEATHER,FROSTY GRAY,TRIM1#
main58905-53090-C1i200508-200808
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM2#
main58905-53090-C3supersedes 58905-53080-C5i200808-200908
FRONT SEAT-SEMIANILINE VENTILATED LEATHER,BLACK,TRIM1#,2#; FRONT SEAT-SMOOTH LEATHER,BLACK,TRIM1#,2#
main58905-53170-C2supersedes 58905-53090-C3i200908-201008
FRONT SEAT-FABRIC, MANUAL SEAT,BLACK,TRIM1#,2#; VERSION F&FRONT SEAT-F SPORTS PACKAGE (FABRIC POWER SEAT),BLACK,TRIM1#,2#
main58905-53190-C6i201210-201301
N.AMERICA SADDLE-TAN PACKAGE,BLACK/SADDLE TAN,TRIM21
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-53040-A3i200508-200703
IVORY,TRIM0#
main58908-53040-B4i200508-200703
FROSTY GRAY,TRIM1#
main58908-53040-C3i200508-200703
BLACK,TRIM2#
main58908-53041-A3i200704-200808
IVORY,TRIM0#
main58908-53041-A4i200908-201008
ECRU,TRIM0#
main58908-53041-B4i200704-200808
FROSTY GRAY,TRIM1#
main58908-53041-C3i200704-200808
BLACK,TRIM2#
58944ACOVER, CONSOLE, REAR
main58944-53010-C0i200808-201008
BLACK,TRIM1#,2#
main58944-53010-E0i201008-201304
ORCHID BROWN,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060×2i200508-200808
58993BRACKET, CONSOLE BOX MOUNTING, REAR
main58993-53030i200808-201008
main58993-53050i200808-201008
7404ASH RECEPTACLE
→ Go to FIG 74-04
74133SEAL, FRONT ASH RECEPTACLE
main74133-30140i201008
8121INTERIOR LAMP
→ Go to FIG 81-21
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9015950327
main90159-50327
9016130003
main90161-30003
9016840121
main90168-40121
9018305032
main90183-05032
9046804177
main90468-04177
9046805135
main90468-05135
9163540616
main91635-40616
9165160618
main91651-60618
9356054010
main93560-54010

33 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
