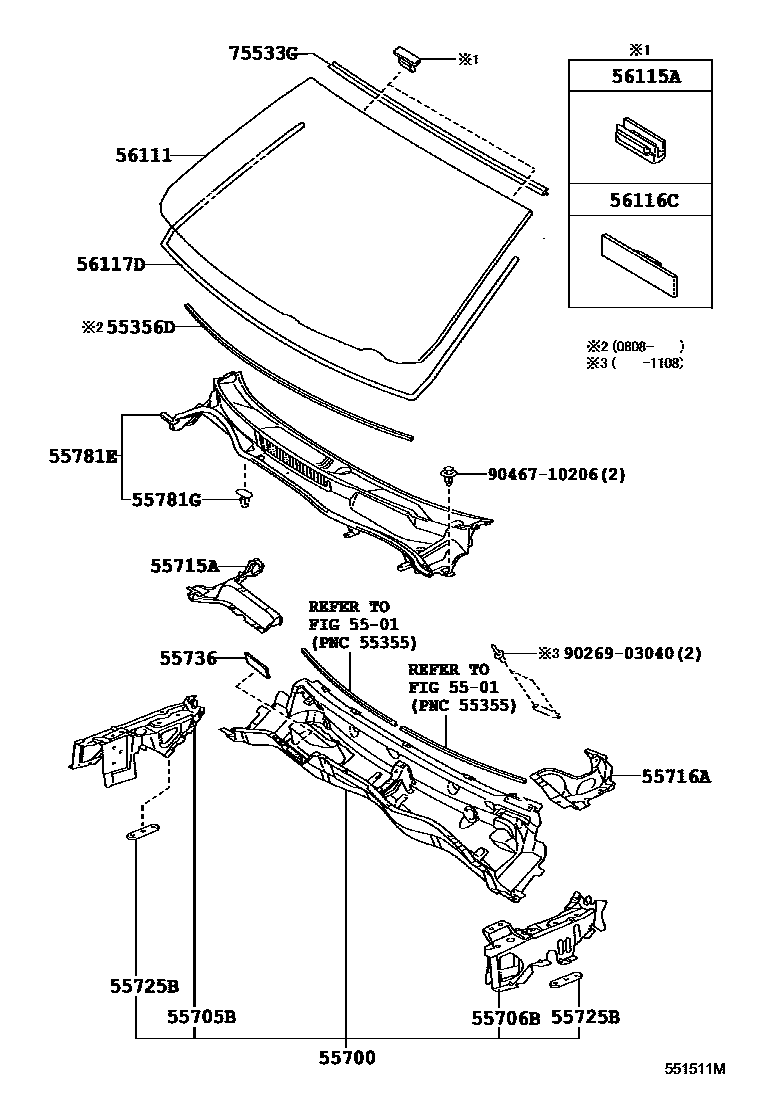

COWL PANEL & WINDSHIELD GLASS
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700PANEL ASSY, FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55736SEAL, WATER GUARD PLATE
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,LUXURY PACKAGE; *LAM,T=4.76,GREEN,SPORT PACKAGE
*LAM,T=4.7,GREEN,CANADA SPEC&VERSION F; *LAM,T=4.7,GREEN,KOREA SPEC&VERSION F; *LAM,T=4.7,GREEN,LUXURY PACKAGE; *LAM,T=4.7,GREEN,SPORT PACKAGE; *LAM,T=4.7,GREEN,VERSION F
*EHL,T=4.7,GREEN,CANADA SPEC&VERSION F&COLD AREA SPEC & WITH(DEICER); *EHL,T=4.7,GREEN,KOREA SPEC&VERSION F&COLD AREA SPEC & WITH(DEICER); *EHL,T=4.7,GREEN,LUXURY PACKAGE&COLD AREA SPEC & WITH(DEICER); *EHL,T=4.7,GREEN,SPORT PACKAGE&COLD AREA SPEC & WITH(DEICER); *EHL,T=4.7,GREEN,VERSION F&COLD AREA SPEC & WITH(DEICER)
*LAM,T=4.7,GREEN,COLD AREA SPEC & WITH(DEICER)
*LAM,T=4.7,GREEN,COLD AREA SPEC & WITH(DEICER)
*LAM,T=4.7,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*EHL,T=4.7,GREEN,COLD AREA SPEC & WITH(DEICER)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*LAM,T=4.7,GREEN,COLD AREA SPEC & WITH(DEICER)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2665; L=2665,LUXURY PACKAGE; L=2665,SPORT PACKAGE
L=2665,CANADA SPEC&VERSION F; L=2665,CANADA SPEC&VERSION F&COLD AREA SPEC & WITH(DEICER); L=2665,COLD AREA SPEC & WITH(DEICER); L=2665,KOREA SPEC&VERSION F; L=2665,KOREA SPEC&VERSION F&COLD AREA SPEC & WITH(DEICER); L=2665,LUXURY PACKAGE&COLD AREA SPEC & WITH(DEICER); L=2665,SPORT PACKAGE&COLD AREA SPEC & WITH(DEICER); L=2665,VERSION F; L=2665,VERSION F&COLD AREA SPEC & WITH(DEICER)
75533GMOULDING, WINDSHIELD, OUTSIDE
9026903040
main90269-03040
9046710206
main90467-10206
18 parts on this diagram · 1 diagram in section
