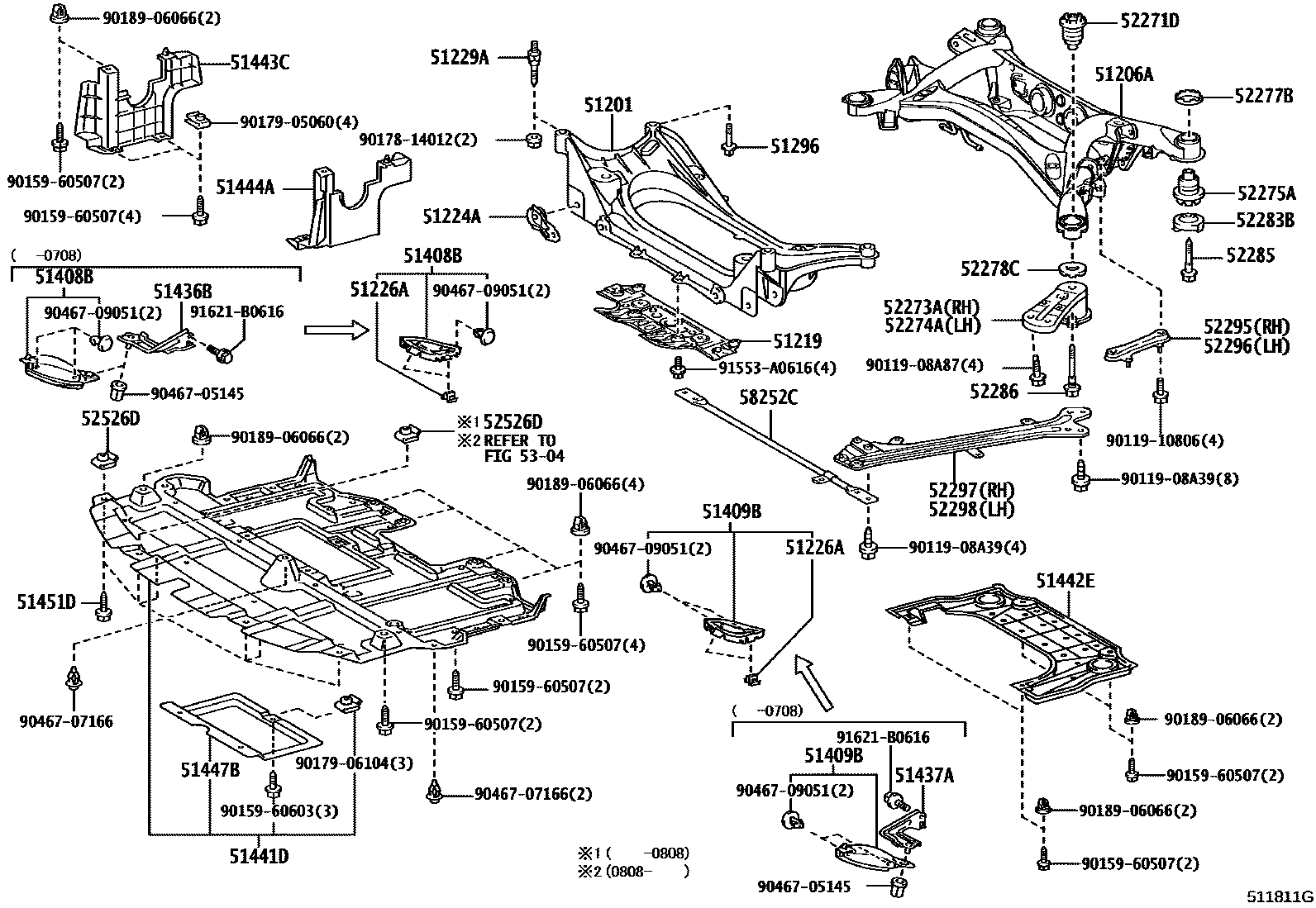

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iGSE20,21200508-200808

main51201-30140iGSE20,21201012

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30080iGSE20,25200808-200812

main51206-30081iGSE20,25200901-201008

main51206-30090iGSE21200508-200509

main51206-30100iGSE21200509-200808

main51206-30101iGSE21,26201008

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iGSE20,21200808-201008

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030×2iGSE20,21200508-200808

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-30020×4iGSE20,21201008

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004×2iGSE20,21200508-200808

main90951-01005×2iGSE25200808-201008

main90951-01006×2iGSE20,21201111

main90951-01007×2iGSE25,26201111

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013×2iGSE20,21200808-201008

main90119-16017×2iGSE25200808-201008

main90119-16021×2iGSE20,21201111

main90119-16022×2iGSE25,26201111

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30050iGSE20,21200508-200708

main51408-30060iGSE20,21200709-200808

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30050iGSE20,21200508-200708

main51409-30060iGSE20,21201008

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-30030iGSE20,21200508-200709

51437ABRACKET, ENGINE SIDE COVER, NO.1 LH

main51437-30010iGSE20,21200508-200709

51441DCOVER, ENGINE UNDER

main51410-53060iGSE20,21200508-200808

main51410-53070iGSE25200508-200808

main51410-53090iGSE20,21..ATM200808-200908

main51410-53091iGSE20,21200910-201008

main51410-53100iGSE25200808-201008

main51410-53120iGSE20,21201008

main51410-53130iGSE25,26201008

51442ECOVER, ENGINE UNDER, NO.2

main51442-30130iGSE20,21200508-200708

main51442-30150iGSE20,21200808-200908

main51442-30180iGSE20,21200709-200808

main51442-30181iGSE20,21200908-201008

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30140iGSE20,21200508-200808

main51443-30141iGSE20,21200908-201008

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30170iGSE20,21200508-200808

main51444-30171iGSE20,21201008

51447BPROTECTOR, OIL PAN

main51447-53010iGSE20,21200508-200808

main51447-53011iGSE20,21200910-201008

51451DSCREW, NO.1

main90159-60477×4iGSE2#200808-201008

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30120×2iGSE2#200808-201008

main52271-53030×2iGSE2#200508-200808

main52271-53041×2iGSE20,21201008

SUSPENSION-SPORTS

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iGSE2#200808-201008

main52203-53020iGSE2#200508-200808

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iGSE2#200808-201008

main52204-53020iGSE2#200508-200808

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30130×2iGSE2#200808-201008

main52275-53030×2iGSE2#200508-200808

main52275-53041×2iGSE20,21201008

SUSPENSION-SPORTS

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30060×2iGSE2#201008

*258

main52277-30070×2iGSE2#201003-201008

*259

main52277-53020×2iGSE2#200508-200808

main52277-53050×2iGSE20,21201008

SUSPENSION-SPORTS

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30050×2iGSE2#201008

*258

main52278-30080×2iGSE2#201003-201008

*259

main52278-53020×2iGSE2#200508-200808

main52278-53031×2iGSE20,21201008

SUSPENSION-SPORTS

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060×2iGSE2#200508-200808

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iGSE2#200508-200808

main90119-14154×2iGSE2#201207

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020×2iGSE2#200508-200808

main90119-14148×2iGSE2#201303-201304

REFER ILLUST.

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iGSE2#200508-200808

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iGSE2#200508-200808

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iGSE2#200508-200808

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iGSE2#200508-200808

52526DRETAINER, FRONT BUMPER, LOWER

main52526-53020×4iGSE2#200508-200808

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-53010iGSE2#200508-200808

9011908A39

main90119-08A39

9011908A87

main90119-08A87

9011910806

main90119-10806

9015960507

main90159-60507

9015960603

main90159-60603

9017814012

main90178-14012

9017905060

main90179-05060

9017906104

main90179-06104

9018906066

main90189-06066

9046705145

main90467-05145

9046707166

main90467-07166

9046709051

main90467-09051

91553A0616

main91553-A0616

91621B0616

main91621-B0616

47 parts on this diagram · 4 diagrams in section
