REAR SPRING & SHOCK ABSORBER

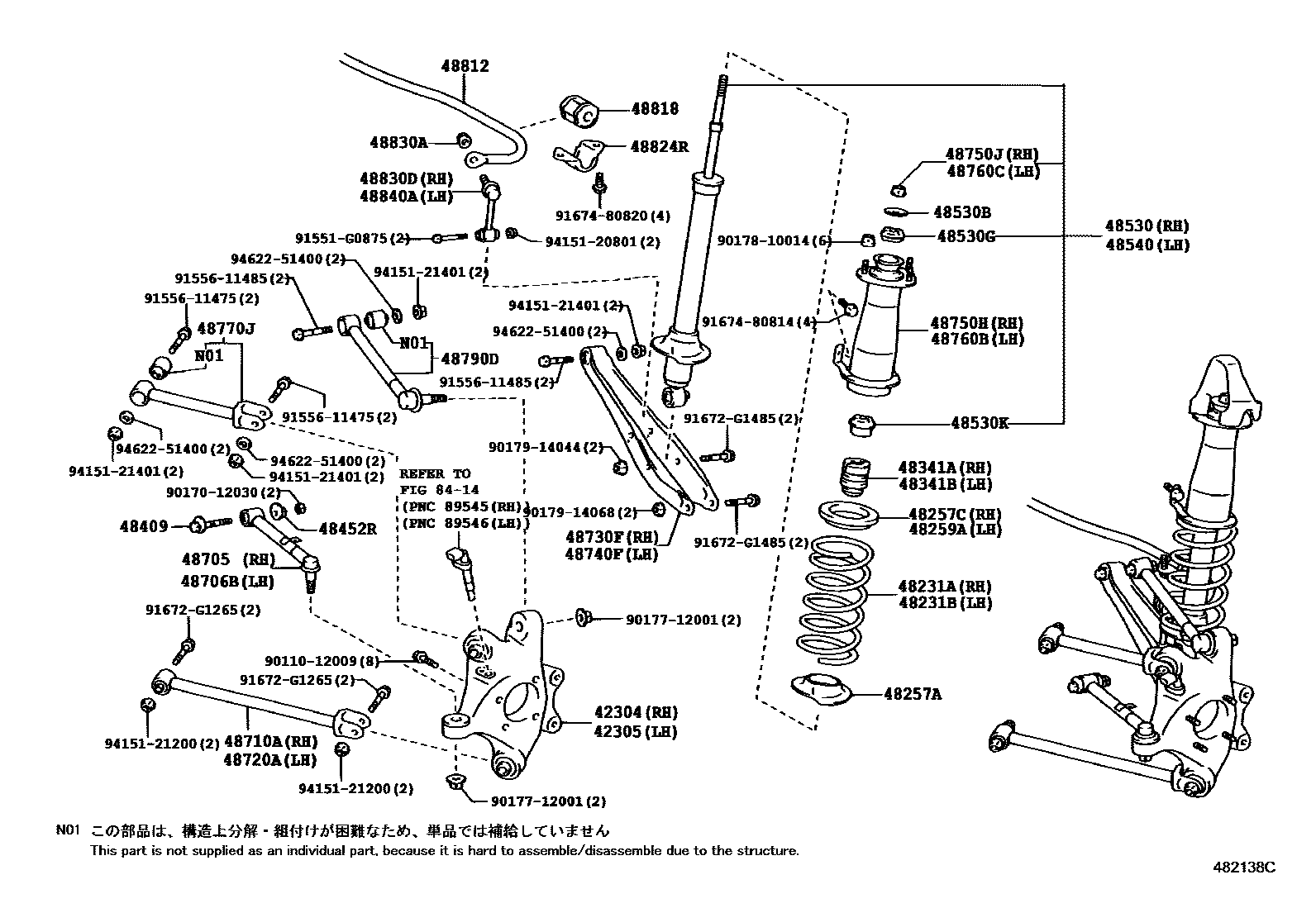

Parts diagram
42304CARRIER SUB-ASSY, REAR AXLE, RH
main42304-30090i200508-200808
main42304-53030i201212-201304
main42304-30110i201008-201212
SUSPENSION-SPORTS
main42304-30150i201212-201304
SUSPENSION-SPORTS
42305CARRIER SUB-ASSY, REAR AXLE, LH
main42305-30090i201008-201212
main42305-53030i201212-201304
main42305-30110i201008-201212
SUSPENSION-SPORTS
main42305-30150i201212-201304
SUSPENSION-SPORTS
48231ASPRING, COIL, REAR RH
main48231-53180i200508-200704
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48231-53181supersedes 48231-53201i200808-201008
main48231-53230i200508-200705
main48231-53231i200705-200808
main48231-53150i200607-200608
X PACKAGE&TIRE & DISC WHEEL-WITHOUT
main48231-53151i200908-201008
CANADA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; KOREA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53201i201008
CANADA SPEC&TIRE & DISC WHEEL-205/55R16 7.0J ALUMINUM
main48231-53280supersedes 48231-53181i201008
SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
48231BSPRING, COIL, REAR LH
main48231-53180i200508-200704
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48231-53181supersedes 48231-53201i200808-201008
main48231-53230i200508-200705
main48231-53231i201008
main48231-53150i200607-200608
X PACKAGE&TIRE & DISC WHEEL-WITHOUT
main48231-53151i200908-201008
CANADA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; KOREA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48231-53201i201008
CANADA SPEC&TIRE & DISC WHEEL-205/55R16 7.0J ALUMINUM
main48231-53280i201008
SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
48257AINSULATOR, REAR COIL SPRING, LOWER
main48158-30020×2i201008
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-30070i200808-201008
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-30070i200508-200808
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-30110supersedes 48341-53010i201008
main48341-53020i200808-201008
main48341-53010i201008
CANADA SPEC&TIRE & DISC WHEEL-205/55R16 7.0J ALUMINUM
48341BBUMPER, REAR SPRING, NO.1 LH
main48341-30110supersedes 48341-53010i200508-200808
TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48341-53020i201008
main48341-53010supersedes 48341-30110i200908-201008
CANADA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-30020×2i200508-200808
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-30040×2i200508-200808
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80285i200808-201008
MARK 48530-53160
main48530-80288i200508-200609
MARK 48530-53120; MARK 48530-53120,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48530-80413i200609-200808
MARK 48530-53121; MARK 48530-53121,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48530-80506supersedes 48530-80507i200808-201008
MARK 48530-53240
main48530-80289i200908-201008
MARK 48530-53100,CANADA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; MARK 48530-53100,KOREA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMERTIRE,ALUMI; MARK 48530-53100,SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASONTIRE,ALUMI; MARK 48530-53100,SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80507supersedes 48530-80412i201008
MARK 48530-53250,CANADA SPEC&TIRE & DISC WHEEL-205/55R16 7.0J ALUMINUM
main48530-80574supersedes 48530-80506i201008
MARK 48530-53280,SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASONTIRE,ALUMI; MARK 48530-53280,SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
main90948-03021×2i200508-200808
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
main90948-01089×2i200508-200808
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
main90948-01090×2i200508-200808
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-80285i201008
MARK 48530-53160
main48530-80288i200508-200609
MARK 48530-53120; MARK 48530-53120,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; MARK 48530-53120,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48530-80413i200609-200808
MARK 48530-53121; MARK 48530-53121,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI; MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,ALLSEASON TIRE,ALUMI; MARK 48530-53121,TIRE & DISC WHEEL-225/45R17+245/45R17,SUMMER TIRE,ALUMI
main48530-80506supersedes 48530-80507i200808-201008
MARK 48530-53240
main48530-80289i200908-201008
MARK 48530-53100,CANADA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI; MARK 48530-53100,KOREA SPEC&VERSION F&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMERTIRE,ALUMI; MARK 48530-53100,SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASONTIRE,ALUMI; MARK 48530-53100,SUSPENTION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main48530-80507supersedes 48530-80506i200908-201008
MARK 48530-53250,CANADA SPEC&TIRE & DISC WHEEL-205/55R16,7.0J,ALUMI
main48530-80574i201008
MARK 48530-53280,SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASONTIRE,ALUMI; MARK 48530-53280,SUSPENSION-SPORTS&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
48705LINK SUB-ASSY, TOE CONTROL, RH
main48705-53020i200508-200808
main48705-30130i201008
SUSPENSION-SPORTS
48706BLINK SUB-ASSY, TOE CONTROL, LH
main48706-53020i200808-201008
main48706-30070i201008
SUSPENSION-SPORTS
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-53020i200808-201008
main48710-30220i201008
SUSPENSION-SPORTS
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48710-53020i201008
main48710-30220i201008
SUSPENSION-SPORTS
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
main48730-30090i200808-201008
main48730-30130i201008
SUSPENSION-SPORTS
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
main48740-30110i201008
main48740-30130i201008
SUSPENSION-SPORTS
48750HSUPPORT ASSY, REAR SUSPENSION, RH
main48750-30150i200508-200808
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90179-12127i200508-200808
48760BSUPPORT ASSY REAR SUSPENSION, LH
main48750-30150i201008
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90179-12127i200808-201008
48770JARM ASSY, UPPER CONTROL, REAR NO.1
main48770-30080×2i200508-200808
main48770-30090×2i201008
main48770-30110×2i201008
SUSPENSION-SPORTS
48790DARM ASSY, UPPER CONTROL, REAR NO.2
main48790-53030×2i200508-200808
48812BAR, STABILIZER, REAR
main48812-53040i200508-200808
main48812-53090i201008
main48812-53030supersedes 48812-53080i201008
SUSPENSION-SPORTS,TYPE B:REFER ILLUST.
main48812-53070i200908-201008
CANADA SPEC&VERSION F,TYPE B:REFER ILLUST.; KOREA SPEC&VERSION F,TYPE B:REFER ILLUST.; SUSPENTION-SPORTS,TYPE B:REFER ILLUST.
48818BUSH, STABILIZER, REAR
main48818-30160×2i200808-201008
main48818-30180×2i200908-201008
CANADA SPEC&VERSION F,TYPE B:REFER ILLUST.; KOREA SPEC&VERSION F,TYPE B:REFER ILLUST.; SUSPENTION-SPORTS,TYPE B:REFER ILLUST.
main48818-30210×2i201008
SUSPENSION-SPORTS,TYPE B:REFER ILLUST.
48824RBRACKET, STABILIZER(FOR REAR)
main48832-30060×2i201008
SUSPENSION-SPORTS,TYPE B:REFER ILLUST.
48830ANUT(FOR REAR STABILIZER LINK)
main90179-12151×2i200808-201008
48830DLINK ASSY, REAR STABILIZER, RH
main48830-30090i200508-200808
48840ALINK ASSY, REAR STABILIZER, LH
main48830-30090i201008
8414ABS & VSC
→ Go to FIG 84-14
9011012009
main90110-12009
9017012030
main90170-12030
9017712001
main90177-12001
9017810014
main90178-10014
9017914044
main90179-14044
9017914068
main90179-14068
91551G0875
main91551-G0875
9155611475
main91556-11475
9155611485
main91556-11485
91672G1265
main91672-G1265
91672G1485
main91672-G1485
9167480814
main91674-80814
9167480820
main91674-80820
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9462251400
main94622-51400

52 parts on this diagram · 3 diagrams in section
