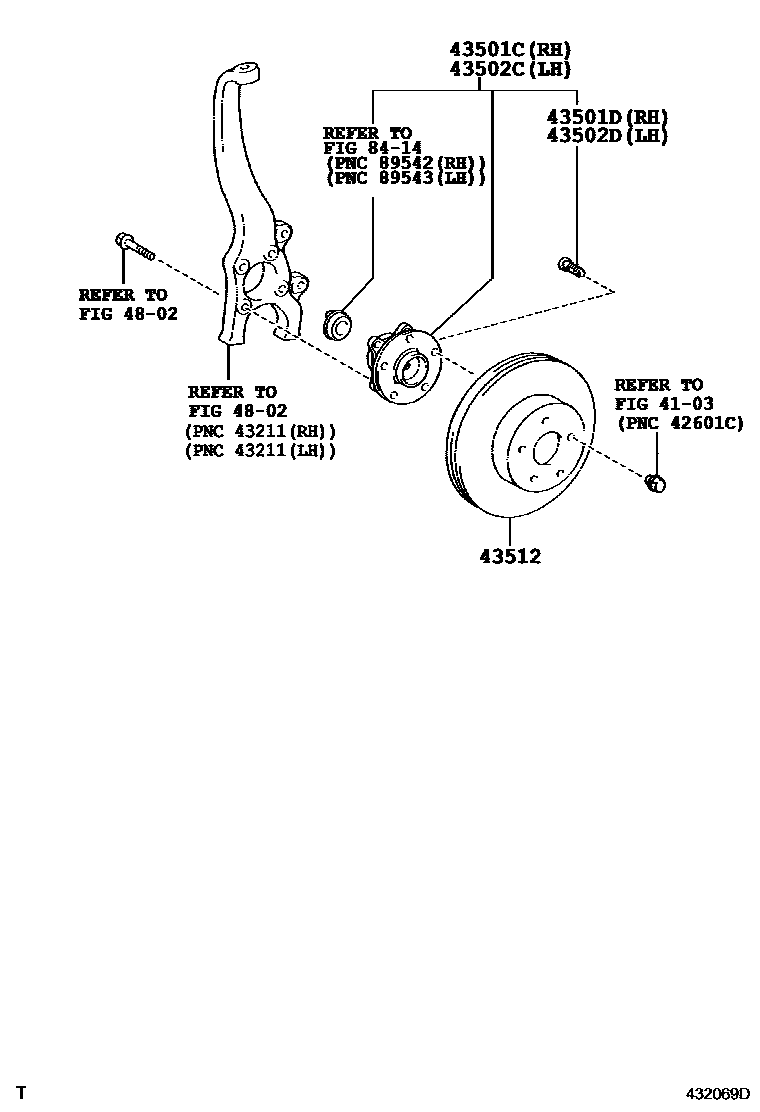

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30020iGSE20,21200508-200808

main43550-30030iGSE25200808-201008

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iGSE2#200808-201008

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGSE20,21201008

main43560-30030iGSE25,26201008

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iGSE2#200808-201008

43512DISC, FRONT

main43512-22260iGSE21200808-200809

RH

main43512-30310×2supersedes 43516-30010iGSE20,25200508-200808

main43512-30320iGSE20,25201008-201304

RH

main43512-30340iGSE21,26201008-201101

RH

main43512-30350iGSE21,26201101-201304

RH

main43516-22010supersedes 43516-30030iGSE21200808-200809

LH

main43516-30010iGSE20,25201008-201304

LH

main43516-30030iGSE21,26201008-201101

LH

main43516-30040iGSE21,26201101-201304

LH

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 2 diagrams in section
