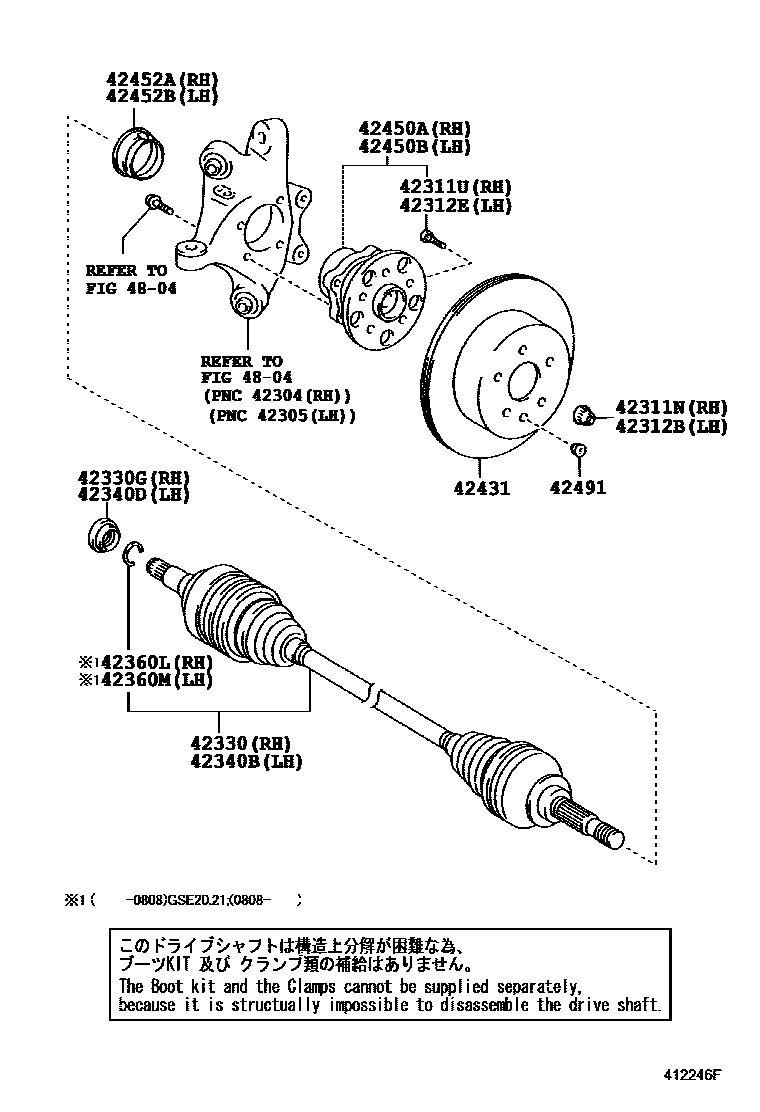

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGSE2#200508-200808

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070×5iGSE2#200508-200808

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGSE2#201008

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070×5iGSE2#200508-200808

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22010iGSE25200508-200808

main42330-22090iGSE20200508-200808

main42330-22091iGSE20,25201009

main42330-30160iGSE21,26201008

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-38071iGSE25200508-200808

main90311-43009iGSE20,25200808-201008

main90311-47015iGSE21200508-200706

main90311-47018iGSE21200808-201008

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22170iGSE25200508-200808

main42340-22180iGSE20,25201008-201009

main42340-22181iGSE20,25201009

main42340-30160iGSE21200808-201008

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-38071iGSE25200508-200808

main90311-43009iGSE20,25200808-201008

main90311-47015iGSE21200508-200706

main90311-47019iGSE21,26201008-201304

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGSE2#200808-201008

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGSE20,21200508-200808

42431DISC, REAR

main42431-30280×2iGSE20,25200508-200808

main42431-30290×2iGSE20; GSE21,26201008-201304

SUSPENSION-SPORTS

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iGSE2#200508-200808

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iGSE2#200508-200808

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGSE2#200508-200808

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGSE2#200508-200808

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGSE2#200508-200808

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

17 parts on this diagram · 1 diagram in section
