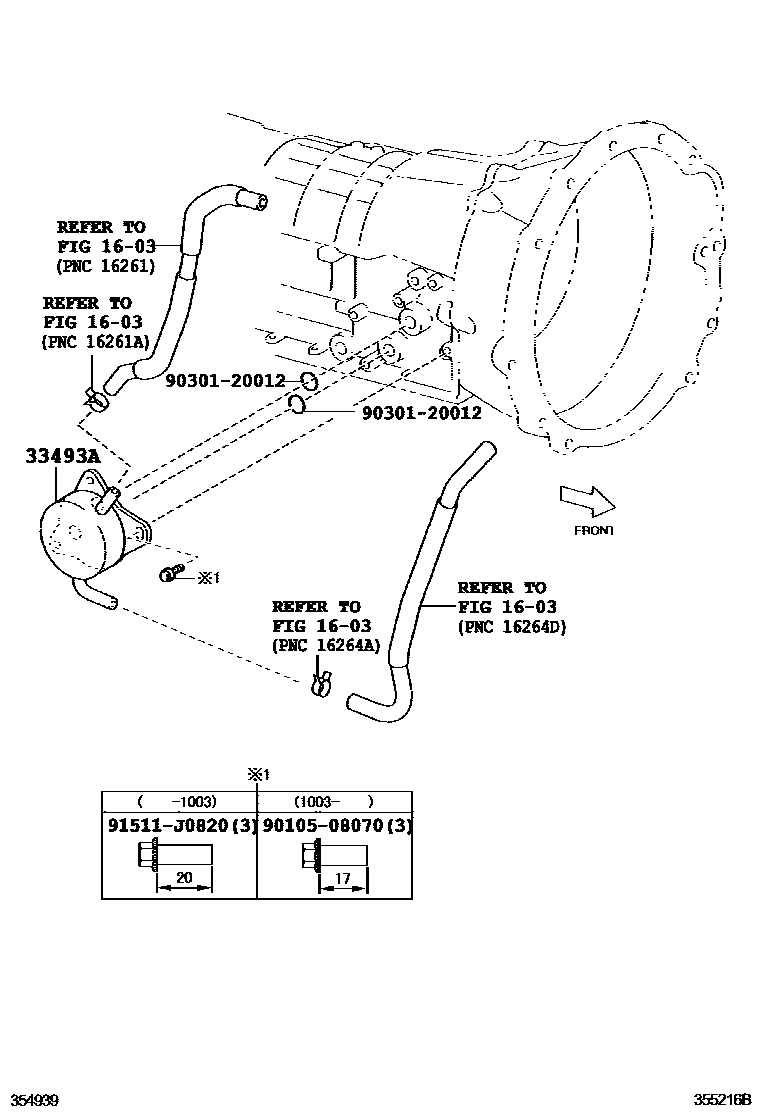

OIL COOLER & TUBE (ATM)

0001 1A960E 0002 1A760E,A760H

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-22030iGSE20..ATM200508-200808

main33493-30010iGSE21,25200508-200808

main33493-30020iGSE2#..ATM201003-201008

9010508070

main90105-08070

9030120012

main90301-20012

91511J0820

main91511-J0820

5 parts on this diagram · 2 diagrams in section
