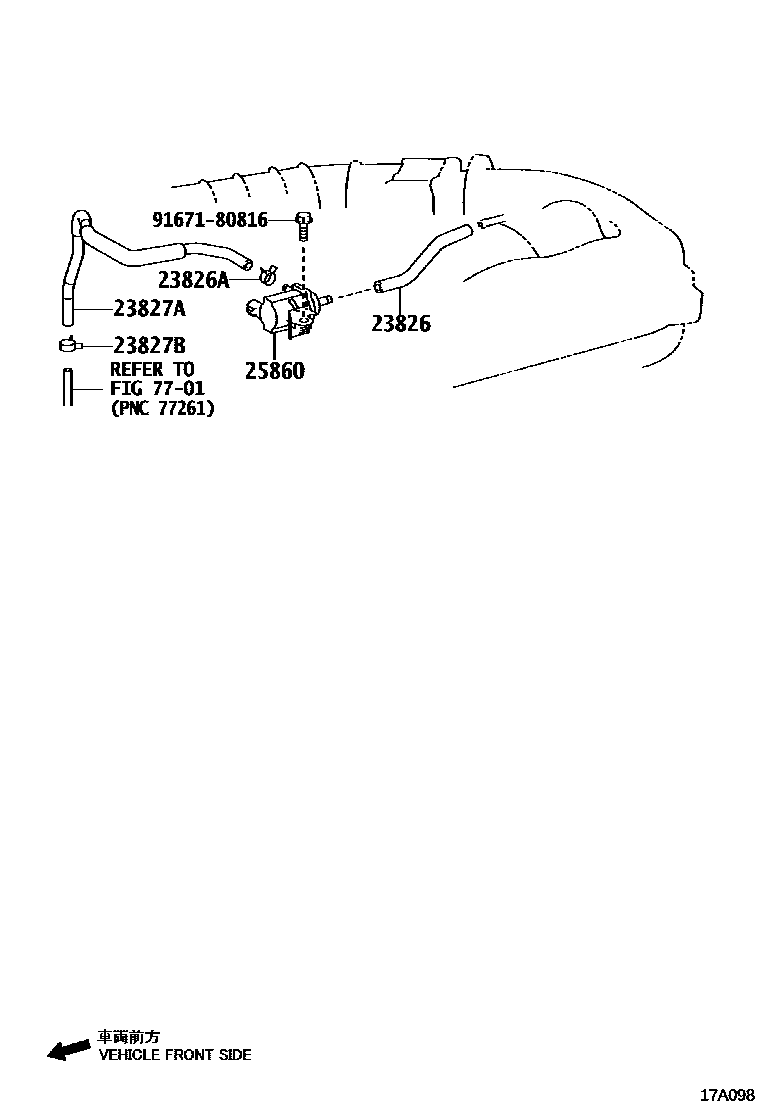

VACUUM PIPING

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31030i2GRFSE,4GRFSE..GSE2#200808-201008

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2GRFSE,4GRFSE..GSE2#200508-200808

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31100i2GRFSE,4GRFSE..GSE2#201008-201304

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GRFSE,4GRFSE..GSE2#201211-201304

main96132-41500i2GRFSE,4GRFSE..GSE2#200508-200604

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRFSE,4GRFSE..GSE2#200508-200808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9167180816

main91671-80816

7 parts on this diagram · 1 diagram in section
