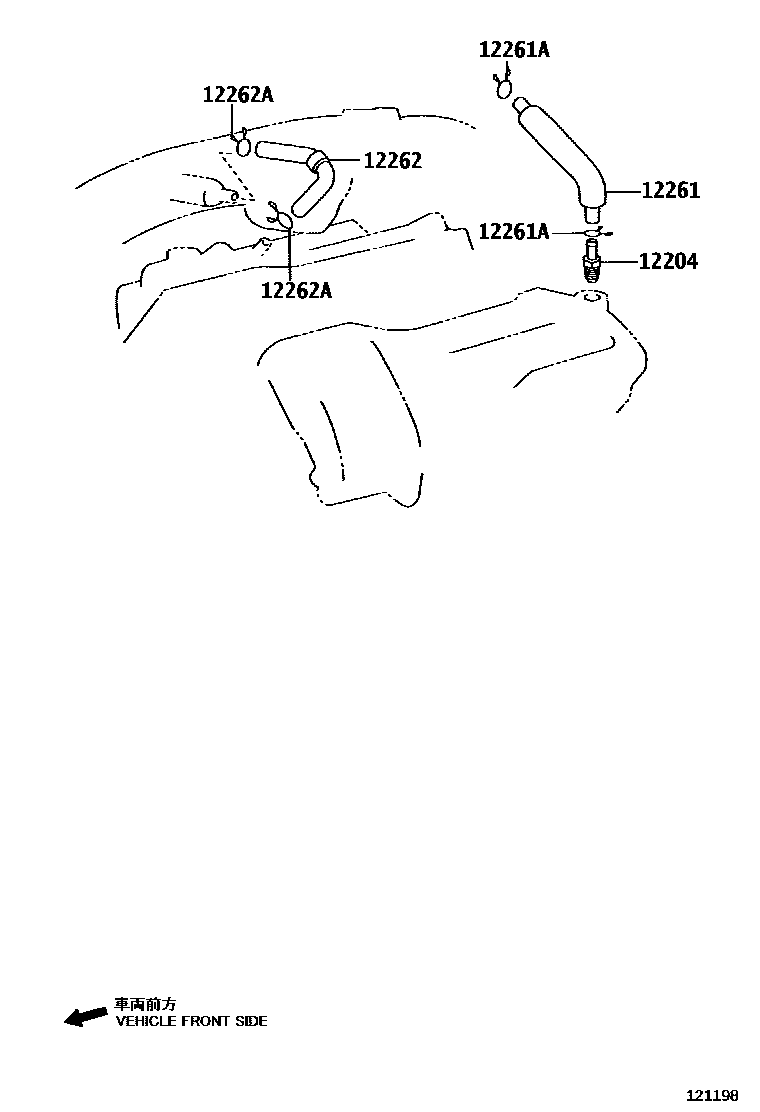

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31040i4GRFSE..GSE20,25..ATM200508-200808

main12204-31050i2GRFSE..GSE21200808-201008

main12204-31090i4GRFSE..GSE20..MTM200808-201008

main12204-31130i4GRFSE..GSE20,25..ATM200901-201008

12261HOSE, VENTILATION

main12261-31060i2GRFSE,4GRFSE..GSE2#200808-201008

main12261-31120i4GRFSE..GSE20,25201211-201304

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i2GRFSE,4GRFSE..GSE2#200508-200808

12262HOSE, VENTILATION, NO.2

main12262-31050i2GRFSE,4GRFSE..GSE2#200508-200808

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2i2GRFSE,4GRFSE..GSE2#200508-200808

5 parts on this diagram · 1 diagram in section
