SHORT BLOCK ASSEMBLY

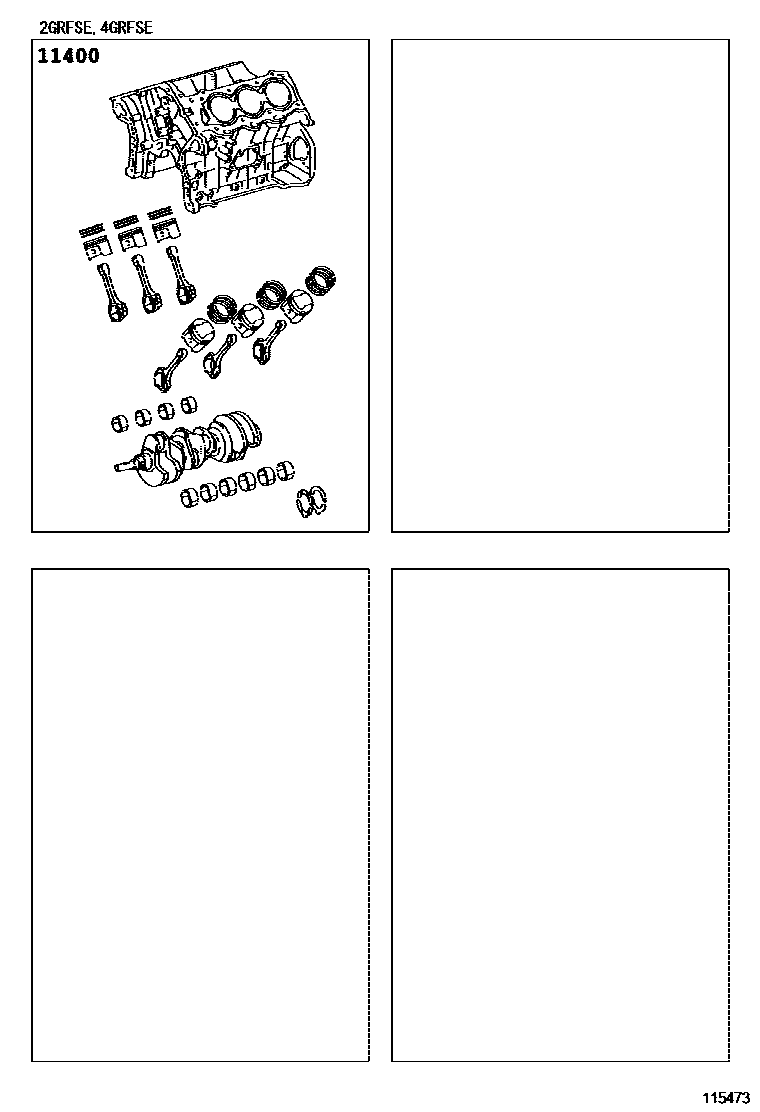

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31050i200808-201008

main11400-31170i201008-201110

main11400-31171i201110-201304

main11400-31330i201201-201304

1 parts on this diagram · 1 diagram in section
