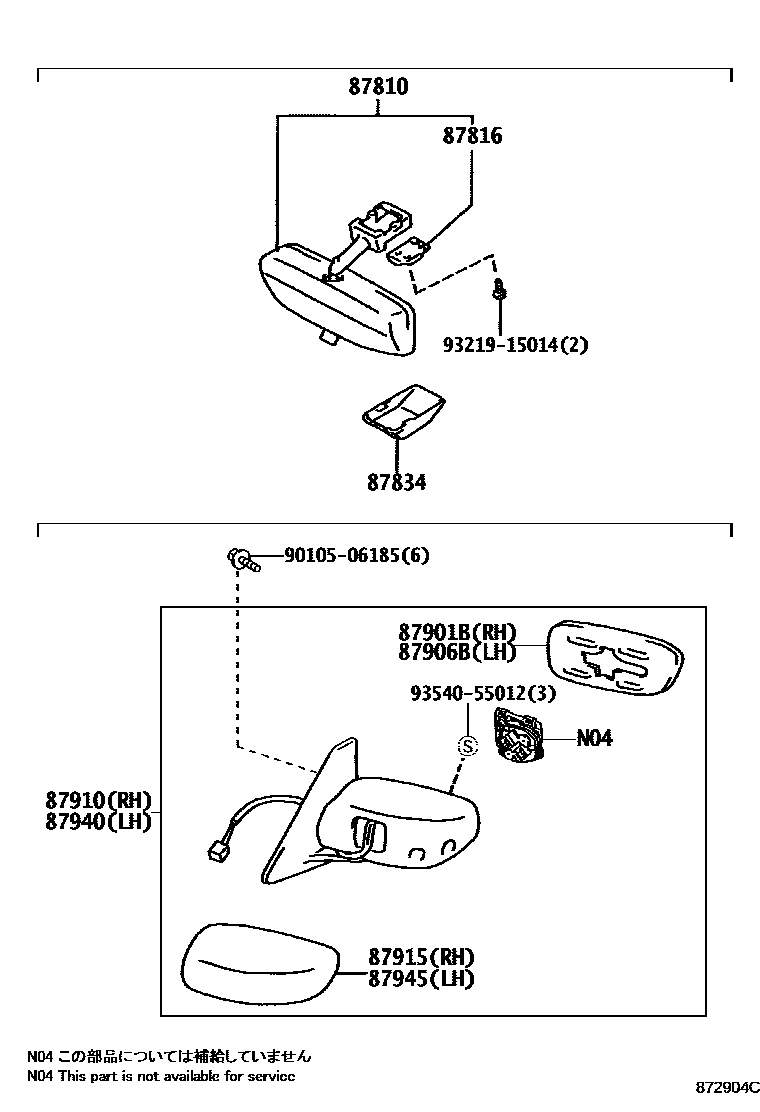

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22230-A0i200005-200107

IVORY,TRIM0#

main87810-22230-B3i200005-200107

MD.CHARCOAL,TRIM2#

main87810-53030-A0i200107

IVORY,TRIM0#

main87810-53030-B0i200107

MD.CHARCOAL,TRIM2#

main87810-53060-A0i200107

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),IVORY,TRIM0#

main87810-53060-B0i200107

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),MD.CHARCOAL,TRIM2#

main87810-53070-A0i200107

W(GPS NAVIGATION SYSTRM & ELECTROCHROMIC INSIDE REAR VIEW MIRROR),IVORY,TRIM0#

main87810-53070-B0i200107

W(GPS NAVIGATION SYSTRM & ELECTROCHROMIC INSIDE REAR VIEW MIRROR),MD.CHARCOAL,TRIM2#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010×2i200005-200107

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22070-A0i200005-200107

IVORY,TRIM0#

main87834-22070-B3i200005-200107

MD.CHARCOAL,TRIM2#

main87834-24040-A1i200107

IVORY,TRIM0#

main87834-24040-B0i200107

MD.CHARCOAL,TRIM2#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-53010i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR)

main87931-53060i200005-200107

main87931-53090i200107-200507

KOREA SPEC

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-53010i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR)

main87961-53060i200005-200107

main87961-53090i200107-200507

KOREA SPEC

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-53060-A1i200005-200107

SU. WHITE PM.,051

main87910-53060-B0i200005-200107

SILVER ME.,1C0

main87910-53060-B1i200005-200107

DK.GRAY M.M.,1C6

main87910-53060-C0i200005-200107

BLACK,202

main87910-53060-D0i200005-200107

RED M.M.,3N3

main87910-53060-F0i200005-200107

SUPER BRIGHT YELLOW,576

main87910-53060-G0i200005-200107

DK.GREEN MC.,6Q7

main87910-53060-J0i200005-200107

BLUE MC.,8M6

main87910-53090-A0i200107-200507

WHITE PEARL CS.,062

main87910-53090-B0i200107-200507

SILVER ME.,1C0

main87910-53090-B1i200107-200507

DK.GRAY M.M.,1C6

main87910-53090-C0i200107-200507

BLACK,202

main87910-53090-D0i200107-200507

SUPER RED 5,3P0

main87910-53090-D1i200401-200406

W(CONVEX MIRROR),SHELL ME.,3Q4

main87910-53090-E0i200308-200507

BEIGE ME.,4R4

main87910-53090-F0i200107-200308

SUPER BRIGHT YELLOW,576

main87910-53090-F1i200107-200308

GOLD ME.,585

main87910-53090-G0i200107-200507

DARK GREEN MC.,6R4

main87910-53090-J0i200107-200308

DK.BLUE MC.,8N8

main87910-53090-J1i200308-200507

GRAYISH BLUE ME.,8N6

main87910-53090-J2i200308-200507

DK.BLUE M.M.,8P4

main87910-53130-A0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),WHITE PEARL CS.,062

main87910-53130-B0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SILVER ME.,1C0

main87910-53130-B1i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.GRAY M.M.,1C6

main87910-53130-B2i200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO), W(INSIDE REAR VIEW MIRROR),GRAY ME.,1D2

main87910-53130-C0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),BLACK,202

main87910-53130-D0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SUPER RED 5,3P0

main87910-53130-D1i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main87910-53130-E0i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),BEIGE ME.,4R4

main87910-53130-F0i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SUPER BRIGHT YELLOW,576

main87910-53130-F1i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),GOLD ME.,585

main87910-53130-G0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DARK GREEN MC.,6R4

main87910-53130-J0i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.BLUE MC.,8N8

main87910-53130-J1i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),GRAYISH BLUE ME.,8N6

main87910-53130-J2i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.BLUE M.M.,8P4

87915COVER, OUTER MIRROR, RH

main87915-12010-A3i200107-200507

WHITE PEARL CS.,062

main87915-12010-B3i200107-200507

SILVER ME.,1C0

main87915-12010-B4i200107-200507

DK.GRAY M.M.,1C6

main87915-12010-B8i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main87915-12010-C1i200107-200507

BLACK,202

main87915-12010-D2i200107-200507

SUPER RED 5,3P0

main87915-12010-D9i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main87915-12010-E2i200308-200507

BEIGE ME.,4R4

main87915-12010-F0i200107-200308

SUPER BRIGHT YELLOW,576

main87915-12010-F1i200107-200308

GOLD ME.,585

main87915-12010-G0i200107-200507

DARK GREEN MC.,6R4

main87915-12010-J0i200308-200507

DK.BLUE M.M.,8P4

main87915-12010-J3i200107-200308

DK.BLUE MC.,8N8

main87915-12010-J9i200308-200507

GRAYISH BLUE ME.,8N6

main87915-20040-A2i200005-200107

SU.WHITE PM,051

main87915-20040-B3i200005-200107

SILVER ME.,1C0

main87915-20040-B4i200005-200107

DK.GRAY M.M.,1C6

main87915-20040-C1i200005-200107

BLACK,202

main87915-20040-D3i200005-200107

RED M.M.,3N3

main87915-20040-F0i200005-200107

SUPER BRIGHT YELLOW,576

main87915-20040-G5i200005-200107

DK. GREEN MC.,6Q7

main87915-20040-J2i200005-200107

BLUE MC.,8M6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-53060-A1i200005-200107

SU. WHITE PM.,051

main87940-53060-B0i200005-200107

SILVER ME.,1C0

main87940-53060-B1i200005-200107

DK.GRAY M.M.,1C6

main87940-53060-C0i200005-200107

BLACK,202

main87940-53060-D0i200005-200107

RED M.M.,3N3

main87940-53060-F0i200005-200107

SUPER BRIGHT YELLOW,576

main87940-53060-G0i200005-200107

DK.GREEN MC.,6Q7

main87940-53060-J0i200005-200107

BLUE MC.,8M6

main87940-53090-A0i200107-200507

WHITE PEARL CS.,062

main87940-53090-B0i200107-200507

SILVER ME.,1C0

main87940-53090-B1i200107-200507

DK.GRAY M.M.,1C6

main87940-53090-C0i200107-200507

BLACK,202

main87940-53090-D0i200107-200507

SUPER RED 5,3P0

main87940-53090-D1i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main87940-53090-E0i200308-200507

BEIGE ME.,4R4

main87940-53090-F0i200107-200308

SUPER BRIGHT YELLOW,576

main87940-53090-F1i200107-200308

GOLD ME.,585

main87940-53090-G0i200107-200507

DARK GREEN MC.,6R4

main87940-53090-J0i200107-200308

DK.BLUE MC.,8N8

main87940-53090-J1i200308-200507

GRAYISH BLUE ME.,8N6

main87940-53090-J2i200308-200507

DK.BLUE M.M.,8P4

main87940-53130-A0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),WHITE PEARL CS.,062

main87940-53130-B0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SILVER ME.,1C0

main87940-53130-B1i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.GRAY M.M.,1C6

main87940-53130-B2i200301-200306

SPORTS DESIGN(USA/HAWAII/P.RICO), W(INSIDE REAR VIEW MIRROR),GRAY ME.,1D2

main87940-53130-C0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),BLACK,202

main87940-53130-D0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SUPER RED 5,3P0

main87940-53130-D1i200401-200406

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SHELL ME.,3Q4

main87940-53130-E0i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),BEIGE ME.,4R4

main87940-53130-F0i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),SUPER BRIGHT YELLOW,576

main87940-53130-F1i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),GOLD ME.,585

main87940-53130-G0i200107-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DARK GREEN MC.,6R4

main87940-53130-J0i200107-200308

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.BLUE MC.,8N8

main87940-53130-J1i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),GRAYISH BLUE ME.,8N6

main87940-53130-J2i200308-200507

W(ELECTROCHROMIC INSIDE REAR VIEW MIRROR),DK.BLUE M.M.,8P4

87945COVER, OUTER MIRROR, LH

main87945-20040-A2i200005-200107

SU.WHITE PM,051

main87945-20040-B3i200005-200107

SILVER ME.,1C0

main87945-20040-B4i200005-200107

DK.GRAY M.M.,1C6

main87945-20040-C1i200005-200107

BLACK,202

main87945-20040-D3i200005-200107

RED M.M.,3N3

main87945-20040-F0i200005-200107

SUPER BRIGHT YELLOW,576

main87945-20040-G5i200005-200107

DK. GREEN MC.,6Q7

main87945-20040-J2i200005-200107

BLUE MC.,8M6

main87945-53010-A1i200107-200507

WHITE PEARL CS.,062

main87945-53010-B0i200107-200507

SILVER ME.,1C0

main87945-53010-B1i200107-200507

DK.GRAY M.M.,1C6

main87945-53010-B2i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2

main87945-53010-C0i200107-200507

BLACK,202

main87945-53010-D0i200107-200507

SUPER RED 5,3P0

main87945-53010-D1i200401-200406

SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4

main87945-53010-E0i200308-200507

BEIGE ME.,4R4

main87945-53010-F0i200107-200308

SUPER BRIGHT YELLOW,576

main87945-53010-F1i200107-200308

GOLD ME.,585

main87945-53010-G0i200107-200507

DARK GREEN MC.,6R4

main87945-53010-J0i200107-200308

DK.BLUE MC.,8N8

main87945-53010-J1i200308-200507

GRAYISH BLUE ME.,8N6

main87945-53010-J2i200308-200507

DK.BLUE M.M.,8P4

9010506185

main90105-06185

9321915014

main93219-15014

9354055012

main93540-55012

12 parts on this diagram · 2 diagrams in section
