HORN

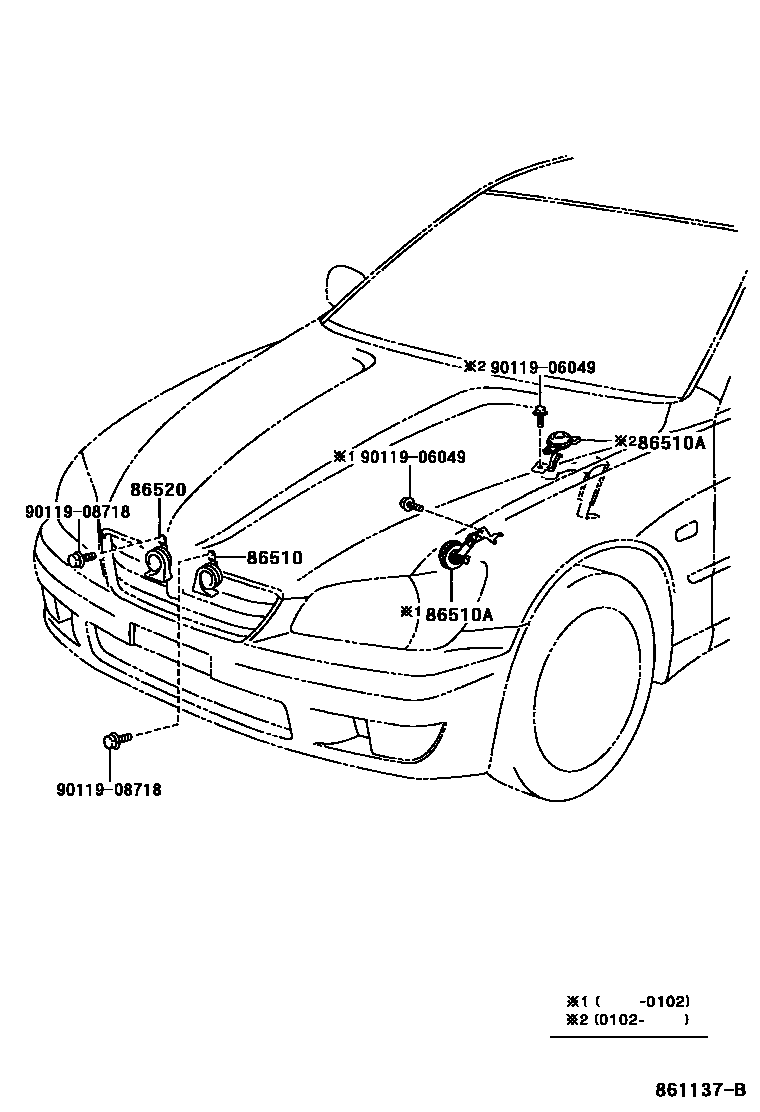

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-51010i200005-200107

86510AHORN ASSY, SECURITY

main86510-53010i200005-200102

main86510-53011i200102-200107

86520HORN ASSY, LOW PITCHED

main86520-51010i200005-200107

9011906049

main90119-06049

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
