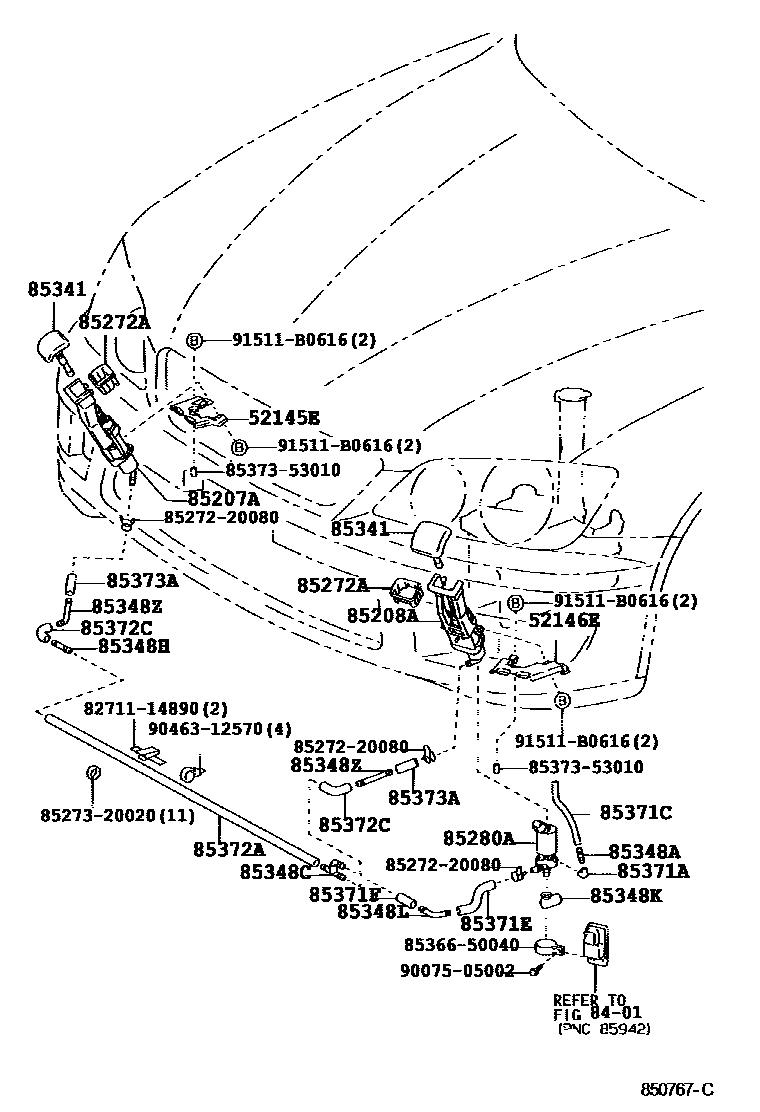

HEADLAMP CLEANER
52145EBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146EBRACKET, FRONT BUMPER SIDE MOUNTING, LH
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85272ACLAMP, HEADLAMP CLEANER, NO.1
RH
RH
LH
LH
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85341NOZZLE, HEADLAMP CLEANER WASHER
SU.WHITE PM,051,RH
WHITE PEARL CS.,062,RH
SILVER.ME,1C0,RH
DK.GRAY MM,1C6,RH
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2,RH
BLACK,202,RH
RED MM,3N3,RH
SUPER RED 5,3P0,RH
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4,RH
BEIGE ME.,4R4,RH
SU BRIGHT YELLOW,576,RH
GOLD ME.,585,RH
DK.GREEN MC,6Q7,RH
DARK GREEN MC.,6R4,RH
BLUE MC,8M6,RH
DK.BLUE MC.,8N8,RH
GRAYISH BLUE ME.,8N6,RH
DK.BLUE M.M.,8P4,RH
WHITE PEARL CS.,062,RH
SILVER ME.,1C0,RH
DK.GRAY M.M.,1C6,RH
BLACK,202,RH
SUPER RED 5,3P0,RH
BEIGE ME.,4R4,RH
SUPER BRIGHT YELLOW,576,RH
GOLD ME.,585,RH
DARK GREEN MC.,6R4,RH
DK.BLUE MC.,8N8,RH
GRAYISH BLUE ME.,8N6,RH
DK.BLUE M.M.,8P4,RH
SU.WHITE PM,051,LH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY MM,1C6,LH
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2,LH
BLACK,202,LH
RED MM,3N3,LH
SUPER RED 5,3P0,LH
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4,LH
BEIGE ME.,4R4,LH
SU BRIGHT YELLOW,576,LH
GOLD ME.,585,LH
DK.GREEN MC,6Q7,LH
DARK GREEN MC.,6R4,LH
BLUE MC,8M6,LH
DK.BLUE MC.,8N8,LH
GRAYISH BLUE ME.,8N6,LH
DK.BLUE M.M.,8P4,LH
WHITE PEARL CS.,062,LH
SILVER ME.,1C0,LH
DK.GRAY M.M.,1C6,LH
BLACK,202,LH
SUPER RED 5,3P0,LH
BEIGE ME.,4R4,LH
SUPER BRIGHT YELLOW,576,LH
GOLD ME.,585,LH
DARK GREEN MC.,6R4,LH
DK.BLUE MC.,8N8,LH
GRAYISH BLUE ME.,8N6,LH
DK.BLUE M.M.,8P4,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=15
85371CHOSE, HEADLAMP CLEANER, NO.1
L=120
85371EHOSE, HEADLAMP CLEANER, NO.3
85371FHOSE, HEADLAMP CLEANER, NO.4
L=45
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
L=1320(*H,L=940)
85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)
L=35
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=45
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8536650040COVER, WASHER TANK SERVICE HOLE COVER
main85366-50040
8537353010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-53010
9007505002
main90075-05002
9046312570
main90463-12570
91511B0616
main91511-B0616
29 parts on this diagram · 2 diagrams in section
