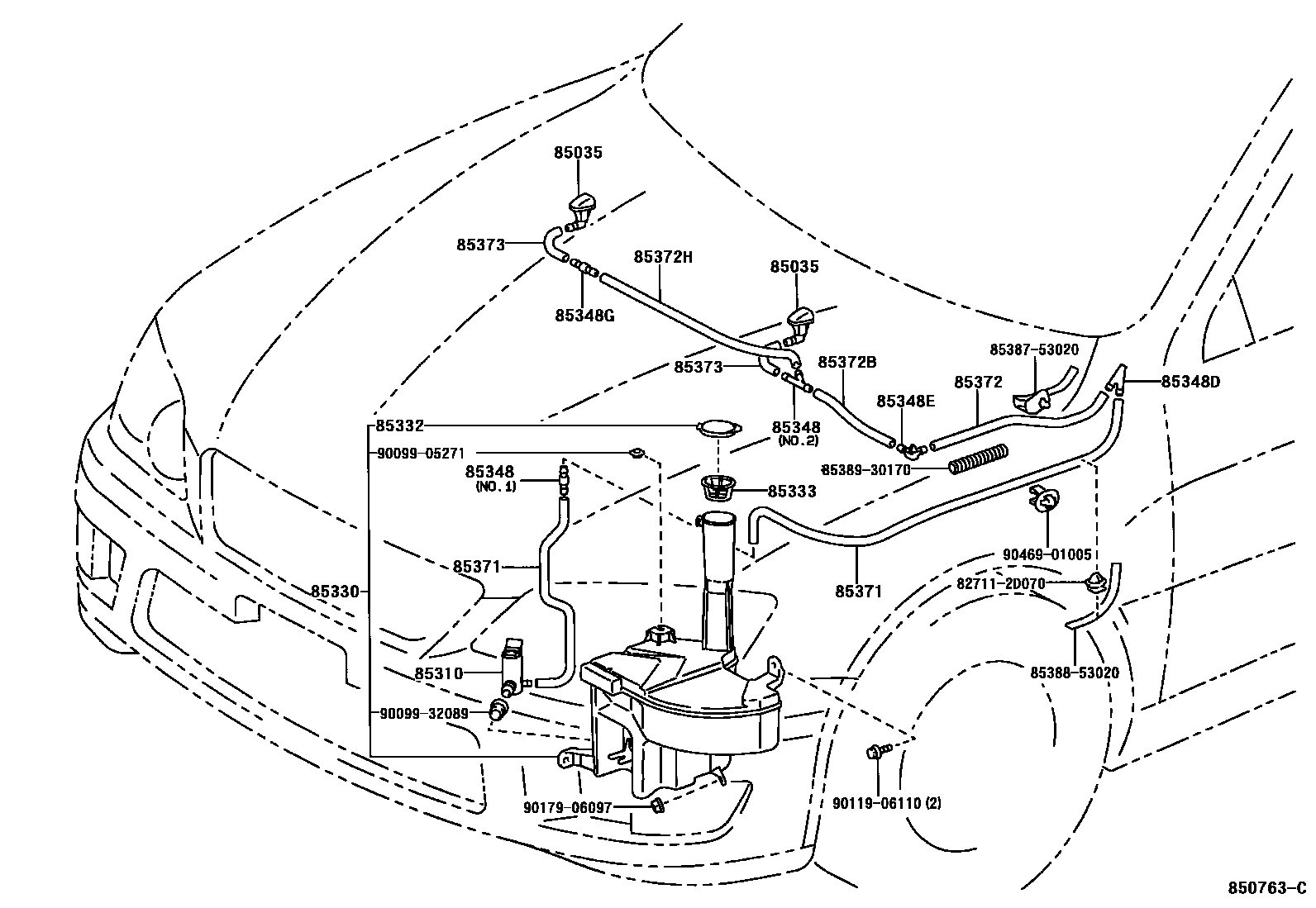

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SU. WHITE PM.,051
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
RED M.M.,3N3
SUPER RED 5,3P0
SUPER BRIGHT YELLOW,576
GOLD ME.,585
DK.GREEN MC.,6Q7
DARK GREEN MC.,6R4
BLUE MC.,8M6
DK.BLUE MC.,8N8
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),GRAY ME.,1D2
BLACK,202
SUPER RED 5,3P0
SPORTS DESIGN(USA/HAWAII/CANADA/P.RICO),SHELL ME.,3Q4
BEIGE ME.,4R4
DARK GREEN MC.,6R4
GRAYISH BLUE ME.,8N6
DK.BLUE M.M.,8P4
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
W(HEADLAMP CLEANER)
W(HEADLAMP CLEANER)
85332CAP, WINDSHIELD WASHER JAR
4.5L TANK; 4.5L TANK & W(HEADLAMP CLEANER)
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
NO.1
NO.2
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100(*H,L=410)
L=1450(*H,L=960)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=280)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=270)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=500)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=150)
827112D070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2D070
8538753020CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-53020
8538853020CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-53020
8538930170PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-30170
9009905271
main90099-05271
9009932089
main90099-32089
9011906110
main90119-06110
9017906097
main90179-06097
9046901005
main90469-01005
23 parts on this diagram · 2 diagrams in section
