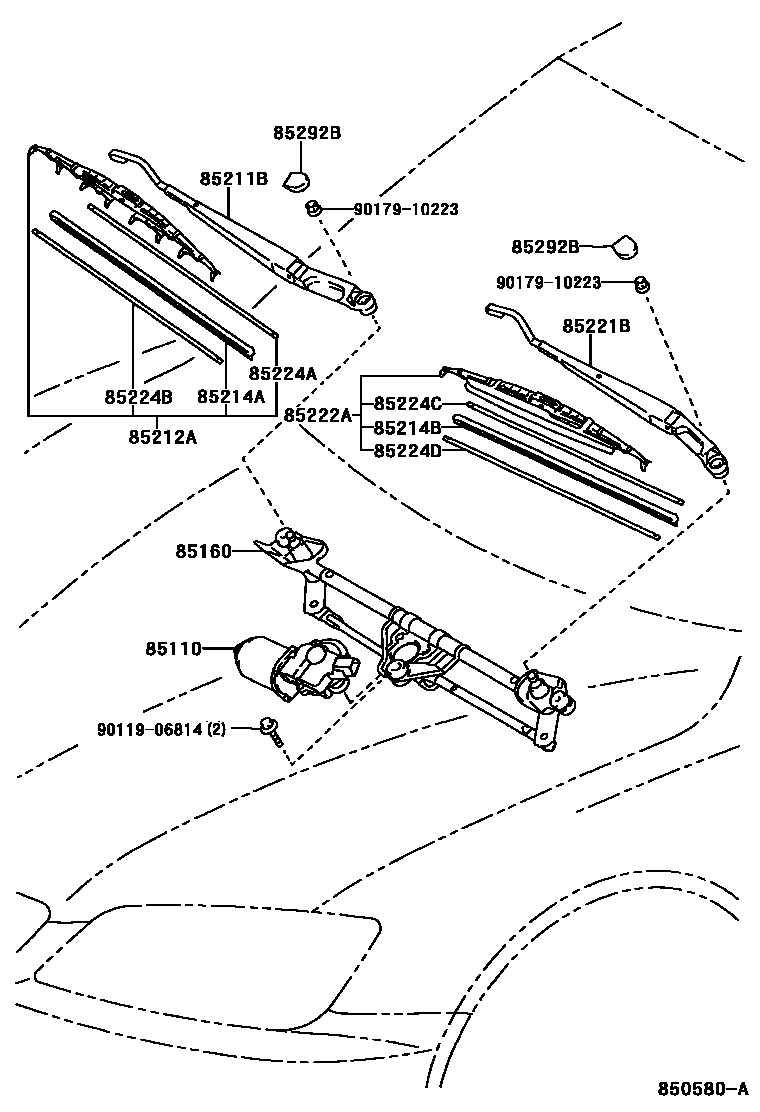

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53030iJCE10200005-200107

85160LINK ASSY, WINDSHIELD WIPER

main85150-53030iJCE10200005-200107

85211BARM, FRONT WIPER, RH

main85211-53040iJCE10200005-200107

85212ABLADE, FR WIPER, RH

main85212-30340iJCE10200005-200008

main85212-53060iJCE10200008-200107

85214ARUBBER, WIPER, RH

main85214-24050iJCE10200008-200107

main85214-30310iJCE10200005-200008

85214BRUBBER, WIPER, LH

main85214-48010iJCE10200008-200107

main85214-53020iJCE10200005-200008

85221BARM, FRONT WIPER, LH

main85221-53050iJCE10200005-200107

85222ABLADE, FR WIPER, LH

main85222-48040iJCE10200008-200107

main85222-53040iJCE10200005-200008

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33070iJCE10200005-200107

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33070iJCE10200005-200107

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33040iJCE10200005-200107

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33040iJCE10200005-200107

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iJCE10200005-200107

9011906814

main90119-06814

9017910223

main90179-10223

15 parts on this diagram · 2 diagrams in section
