Toyota LEXUS IS300 — ABS & VSC

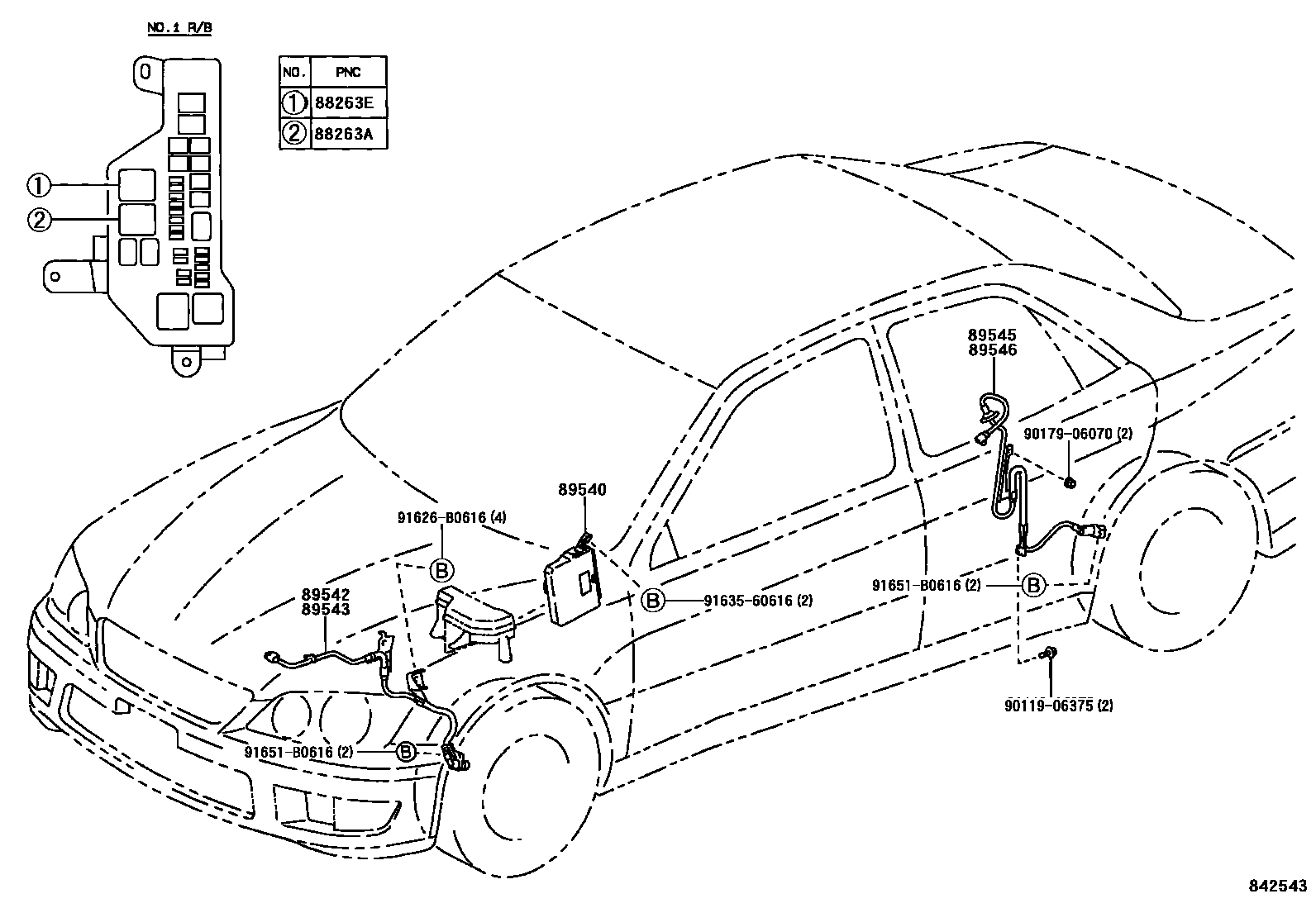

Parts diagram
88263ARELAY, SKID CONTROL
88263ERELAY, SKID CONTROL NO.2
89540COMPUTER ASSY, SKID CONTROL
89540-53050
89540-53150
89540-53170
89542SENSOR, SPEED, FRONT RH
89542-51010
89543SENSOR, SPEED, FRONT LH
89543-53010
89545SENSOR, SPEED, REAR RH
89545-51010
89545-30060
89546SENSOR, SPEED, REAR LH
89546-51010
89546-30060
9011906375
90119-06375
9017906070
90179-06070
91626B0616
91626-B0616
9163560616
91635-60616
91651B0616
91651-B0616

12 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota LEXUS IS300

This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota LEXUS IS300. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, SENSOR, YAWRATE, COMPUTER ASSY, SKID CONTROL.
